RF261PXST1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF261PXST1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

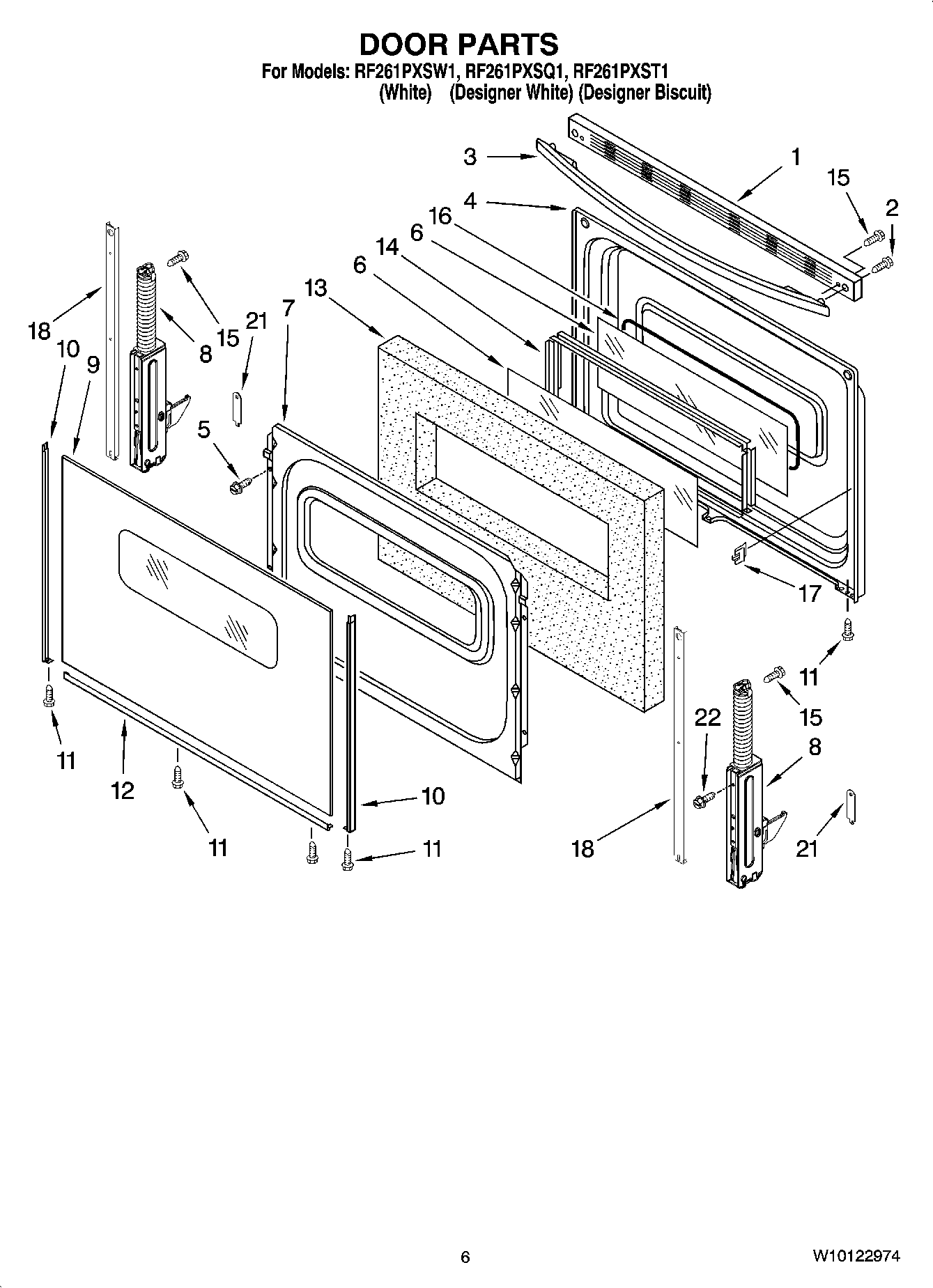

RF261PXST1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL 8524132
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Clip, Ground Wire
W11172524 Whirlpool Wire Harness
W10251772 Whirlpool Wire Harness
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
WP308605 Whirlpool Refrigerator Clamp
WP3196154 Whirlpool Screw Assembly
Grease
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
WPL ARI121745A
Wire (14 Ga. 200 c Brown)
WPL ARI121746A
WPL ARI121747A
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
WPL ARI121751A
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
4396923 Whirlpool Broil Pan Set Gray Porcelain
WPL ARI121750A
Wire, 25` Roll (Red 14 Ga.)
W11447673 Whirlpool Range Tip Anchor
285006 Whirlpool Spray
WPL ARI121748A
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI121749A
1Trim, Top (Biscuit)
1WP9762391 Whirlpool Door Trim Assembly
1Trim, Top (White)
2WP3196164 Whirlpool Screw
3Handle, Door (Black)
3Handle, Door (Biscuit)
3Handle, Door (White)
49761340 Whirlpool Oven Door Liner
5WPW10031790 Whirlpool Screw
6WP9758164 Whirlpool Door Glass
79761499 Whirlpool Oven Retainer
8W10347466 Whirlpool Door Hinge
9WP9762476 Whirlpool Door Glass
9Glass, Outer (Biscuit)
9WP9762477 Whirlpool Glass Door
10W10761014 Whirlpool Right Door Trim
10WP8523166 Whirlpool Door Trim
10WP8523167 Whirlpool Door Trim Assembly
10WP8523172 Whirlpool Left Door Trim
10WP8523173 Whirlpool Door Trim
10W10761018 Whirlpool Dishwasher Left Door Trim
11W10491985 Whirlpool Screw
12WP8523175 Whirlpool Door Trim Assembly
12WP8523177 Whirlpool Door Trim Assembly
12WP8523178 Whirlpool Door Trim
13WPW10278991 Whirlpool Insulation
14Frame, Glass
15W10777162 Whirlpool Screw
168522415 Whirlpool Oven Wind Gasket
17Clip, Glass (4)
18W11502236 Whirlpool Door Trim
219761517 Whirlpool Oven Clip Assembly
22WP3196175 Whirlpool Screw
