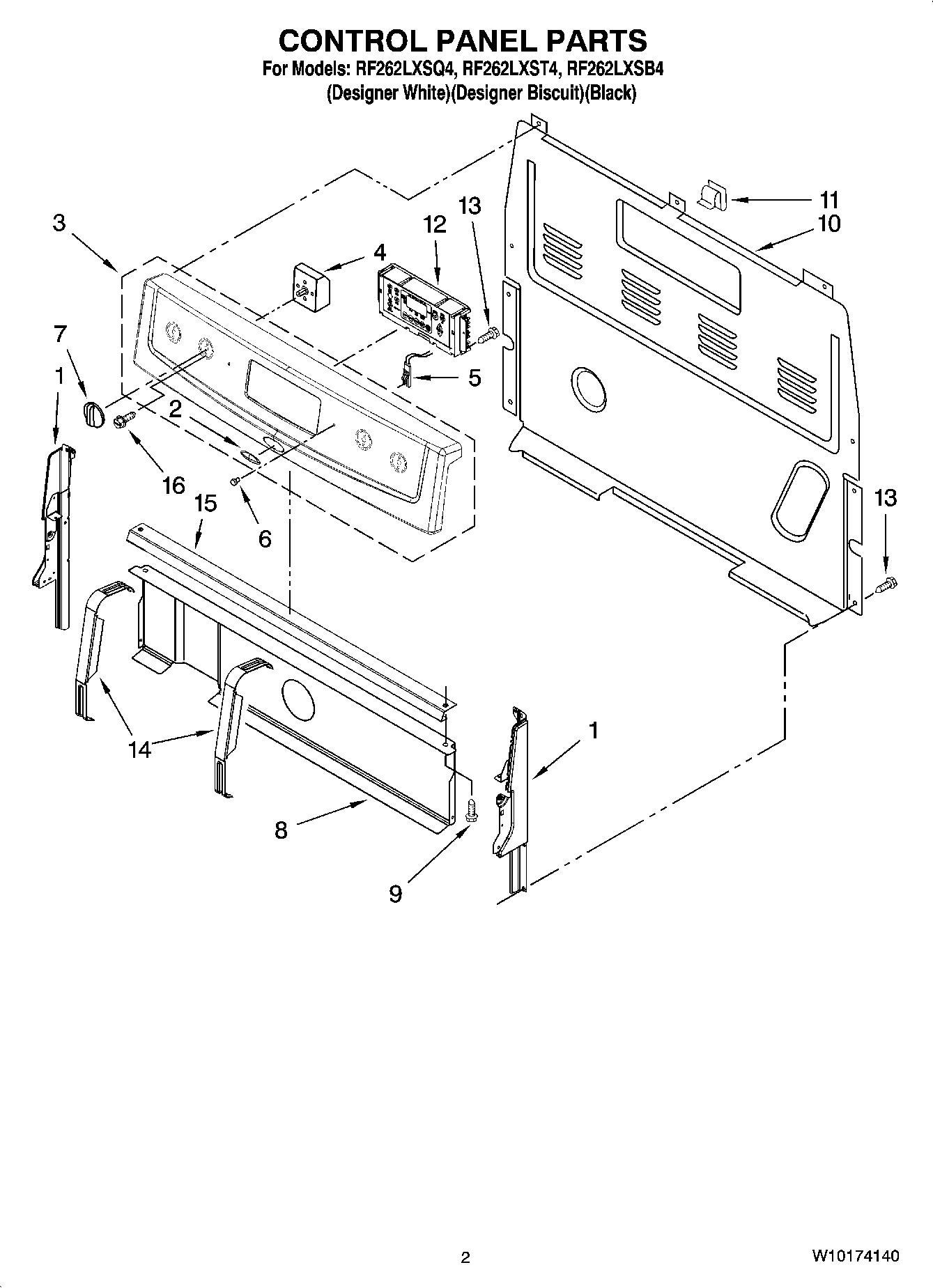

RF262LXSB4 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11230612 Whirlpool Panel End Cap
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	Endcap (Biscuit Left Hand)
2	Nameplate
3	Panel, Control (Biscuit)
3	Panel, Console (White)
3	Panel, Control (Black)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WP3149400 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP9761963 Whirlpool Knob Assembly
7	WP9761964 Whirlpool Knob
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400832 Whirlpool Screw
9	3196166 Whirlpool Screw
9	WPL 8281194
10	WP8272473 Whirlpool Rear Cover
11	WP8273564 Whirlpool Clip
12	Control, Range (White)
12	W10876180 Whirlpool Electronic Control Board
12	Control, Range (Biscuit)
13	SCREW
14	BRACKET, MOUNTING EOC
15	Bracket, Console
16	WP3400882 Whirlpool Screw
