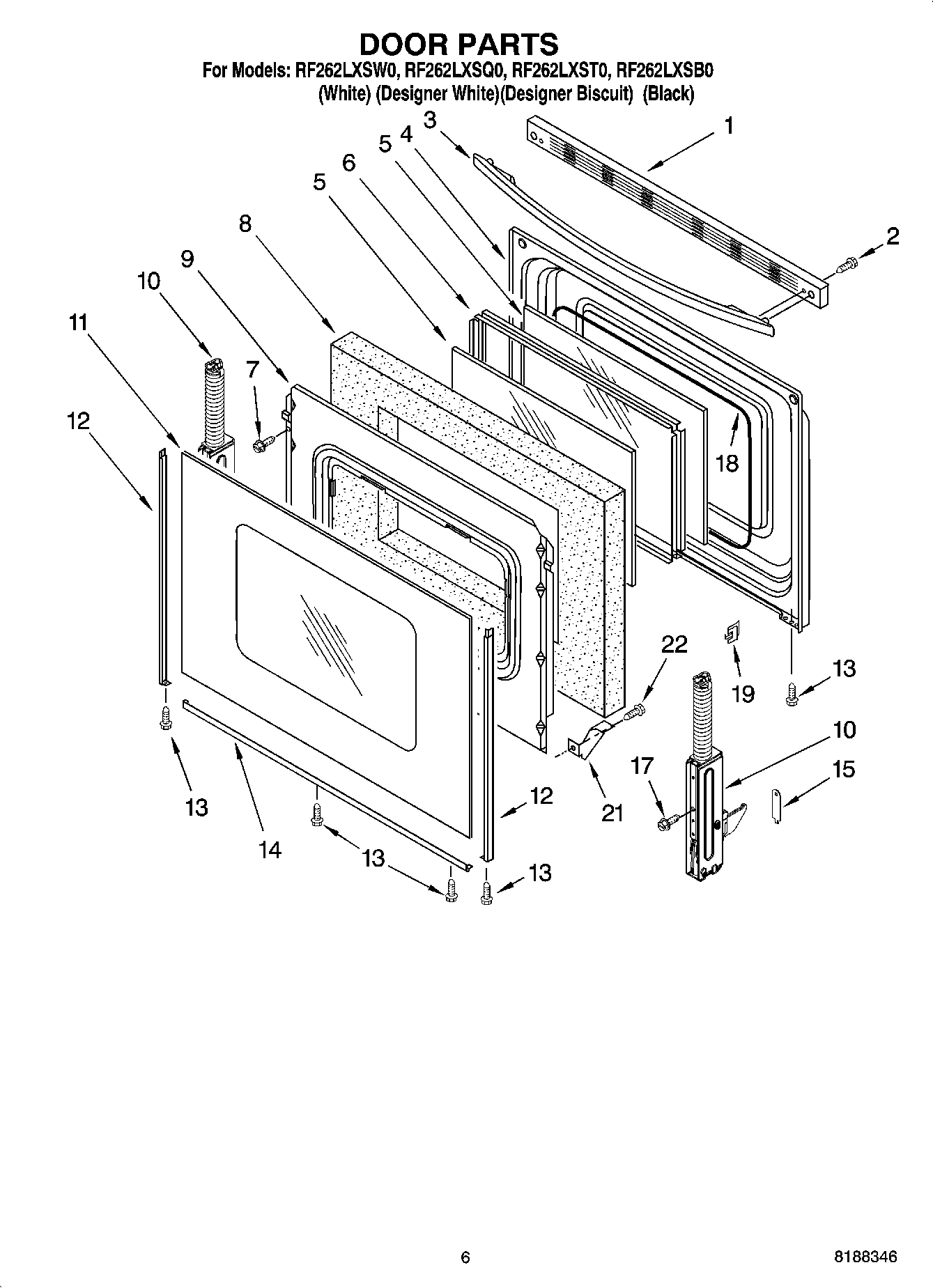

RF262LXSQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF262LXSQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF262LXSQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI160307A
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
8212471 Whirlpool Oven Paint
3184020 Whirlpool Oven Wire
WP3196154 Whirlpool Screw Assembly
WPL ARI160306A
WPL ARI160305A
WPL ARI160304A
WPL ARI160303A
WPL ARI160302A
WPL 9762953
WPL 9762959
WPL 9762428
WPL 9762958
WPL ARI160308A
WPL 8524132
Clip, Ground Wire
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
4396923 Whirlpool Broil Pan Set Gray Porcelain
WPL 799832
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
W11447673 Whirlpool Range Tip Anchor
Almond (Uncut)
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
1Trim, Top (White)
1Trim, Top (Biscuit)
1WP9762391 Whirlpool Door Trim Assembly
2WP3196164 Whirlpool Screw
3Handle, Door (Biscuit)
3Handle, Door (Black)
3Handle, Door (White)
4WP9761344 Whirlpool Door Liner
5WP8053948 Whirlpool Door Glass
6WPW10316950 Whirlpool Window Frame
7WPW10031790 Whirlpool Screw
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347466 Whirlpool Door Hinge
11WPW10118455 Whirlpool Door Glass Assembly
11WPW10118454 Whirlpool Door Outer Glass White
12WP8523167 Whirlpool Door Trim Assembly
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
159761517 Whirlpool Oven Clip Assembly
17W10777162 Whirlpool Screw
18Seal, Window
19Clip, Glass (4)
21WP3196794 Whirlpool Glass Bracket
22WP3196175 Whirlpool Screw
