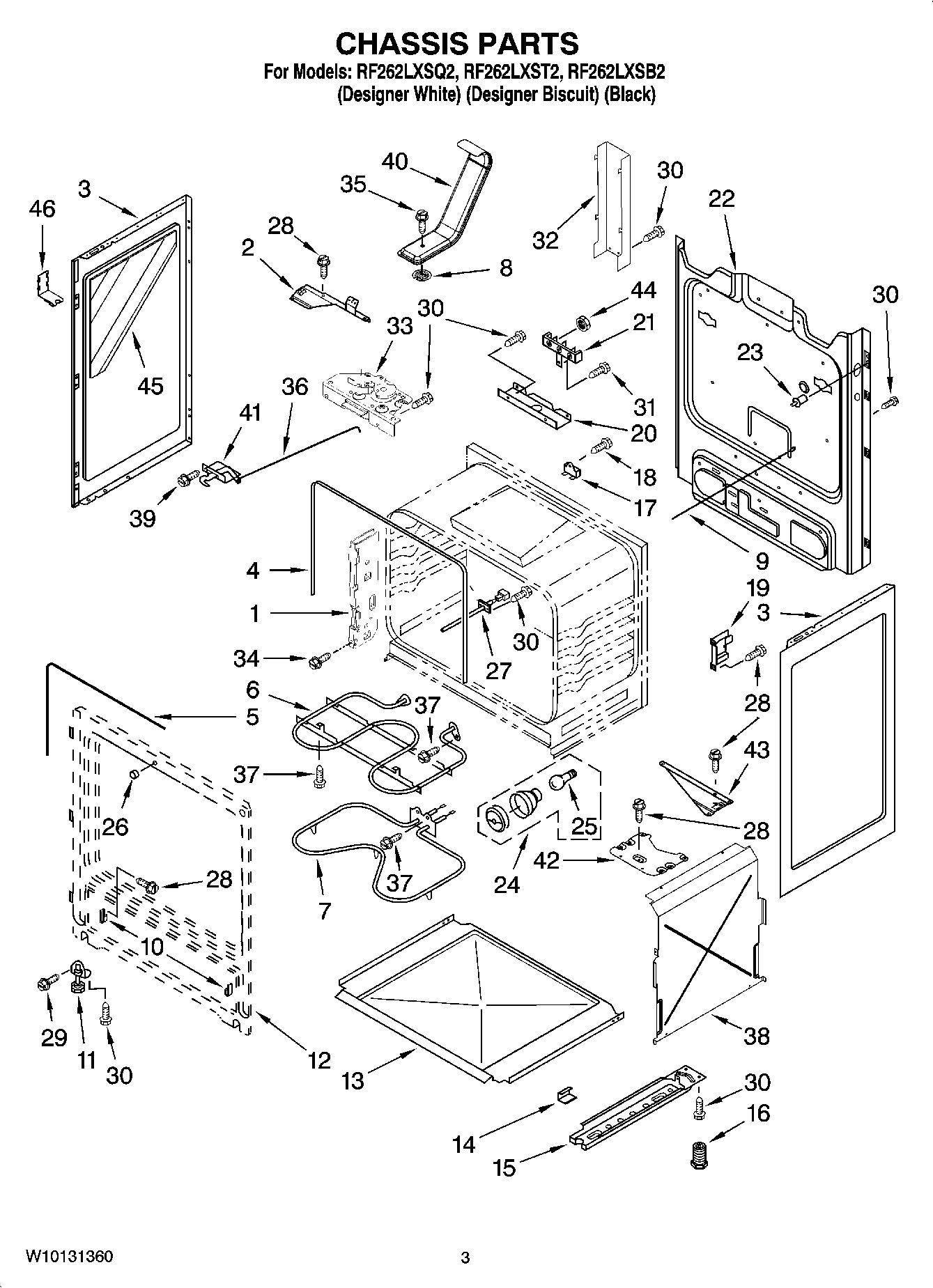

RF262LXSQ2 03 – CHASSIS PARTS

RF262LXSQ2 03 – CHASSIS PARTS

Written by

in

RF262LXSQ2 03 – CHASSIS PARTS

Products

PositionProduct
1W10647259 Whirlpool Hinge Receiver
2Support, Corner LR
3W11730303 Whirlpool Side Panel
3WPW10575396 Whirlpool Side Panel
3W10162246 Whirlpool Side Panel
4Seal, Oven Flange
5W11542153 Whirlpool Door Gasket
6W10856603 Whirlpool Broil Element
7WPW10308477 Whirlpool Bake Element
89761301 Whirlpool Oven Screen
99757239 Whirlpool Oven Door Rod
10WPW10114344 Whirlpool Drawer Glide
11WP3196037 Whirlpool Leveling Foot
12Frame, Front Not Serviced
13WP8054068 Whirlpool Retainer
14Clip, Panel (6)
15WPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
17WP3196548 Whirlpool Thermal Fuse
183196172 Whirlpool Oven Screw
19W10404688 Whirlpool Bracket Support
20W11728255 Whirlpool Service Bracket
21WP9761958 Whirlpool Range Terminal Block
22Back, Main
23WP9757262 Whirlpool Light Switch
24W11594027 Whirlpool Range Oven Light Socket
25RANGE ONLY 40W 120V APPL BULB
26W10877054 Whirlpool Spacer Assembly
27WPW10181986 Whirlpool Oven Sensor
28WP3196557 Whirlpool Screw
29Screw
30SCREW
31WP3400016 Whirlpool Screw Assembly
32WPW10326122 Whirlpool Black Cover
33WPW10107820 Whirlpool Door Latch
34W10777162 Whirlpool Screw
35WP489491 Whirlpool Refrigerator Screw
36Rod, Latch
37WP3196174 Whirlpool Screw
38W10450380 Whirlpool Retainer
39W11169708 Whirlpool Screw
40WPW10134285 Whirlpool Vent Tube
41WP9761013 Whirlpool Door Latch
42Support, Front (2)
43Support, Corner RR
44WP112432 Whirlpool Nut Assembly
45Insulation
46WPW10208653 Whirlpool Insulation
46WP8272612 Whirlpool Insulation
46Clip, Mounting
468053915 Whirlpool Oven Insulation
46Insulation
