RF262LXSQ3 01 – COOKTOP PARTS

RF262LXSQ3 01 – COOKTOP PARTS

Written by

in

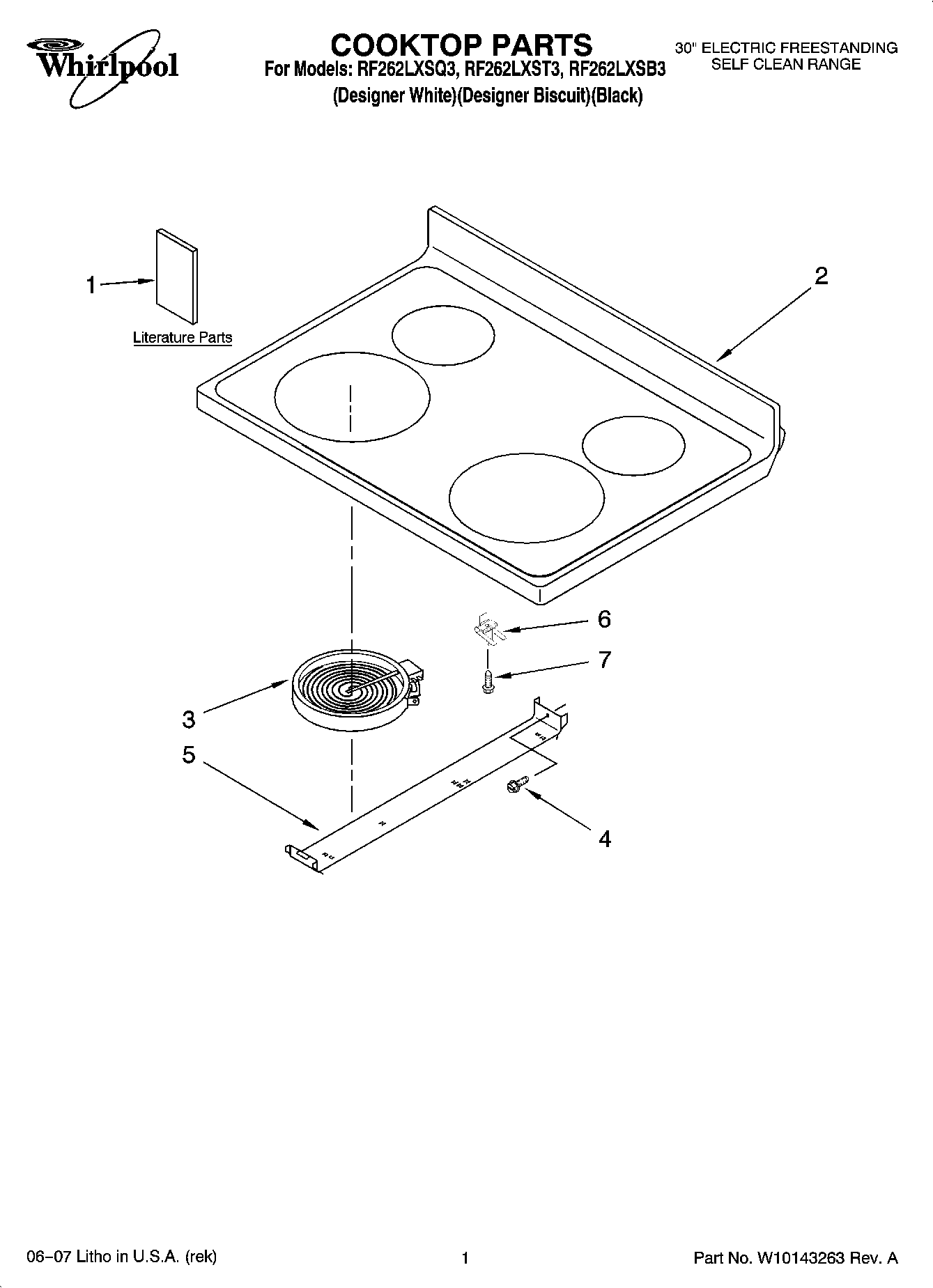

RF262LXSQ3 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
1Tech Sheet
1Owners Manual
1Installation Instructions Template, Anti-Tip
2Cooktop (Biscuit)
2Cooktop (White)
2Cooktop (Black)
3W11047722 Whirlpool Radiant Surface Element
3ELMNT-SURF
4WP3196557 Whirlpool Screw
5Bracket, Element ((2))
6Spring, Locator
7WP3196170 Whirlpool Screw
