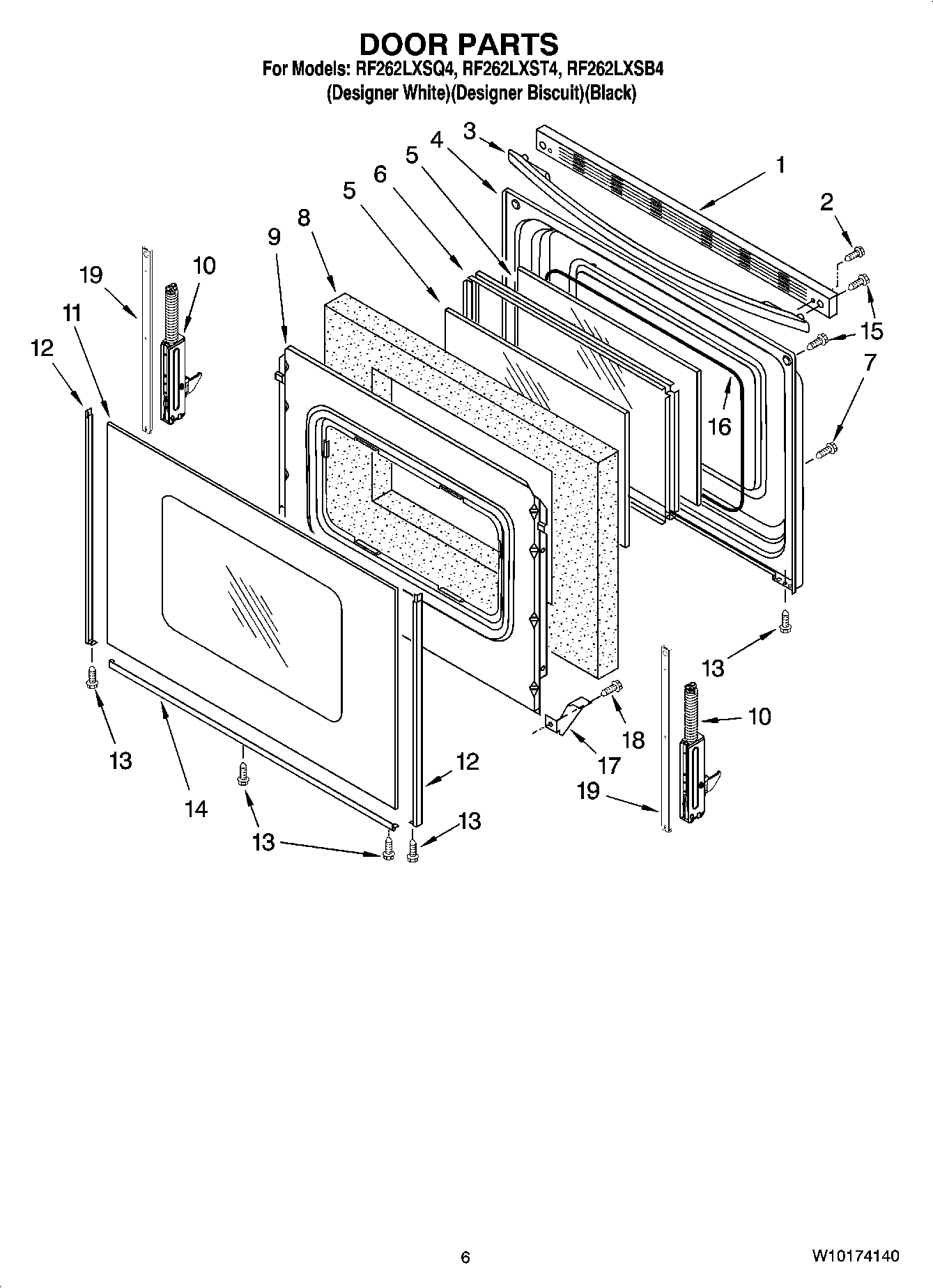

RF262LXSQ4 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF262LXSQ4 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF262LXSQ4 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI160342A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
WPL W10111766
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
3184020 Whirlpool Oven Wire
Grease
WPL ARI160341A
WPL ARI160340A
WPL ARI160339A
WPL ARI160338A
WPL ARI160337A
WPL ARI160336A
WPL W10111790
WPL W10111771
W11172524 Whirlpool Wire Harness
WPW10144763 Whirlpool Tie Wire
WP3196154 Whirlpool Screw Assembly
242831 Whirlpool Oven Wire
Clip, Ground Wire
350956 Whirlpool Spray Assembly
FOIL, ALUMINUM OVEN (18“ X 25 )
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPW10208653 Whirlpool Insulation
W11447673 Whirlpool Range Tip Anchor
WPL 799832
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
350942 Whirlpool Spray Paint
4396923 Whirlpool Broil Pan Set Gray Porcelain
511873 Whirlpool Refrigerator Paint
Almond (Uncut)
1Trim, Top (White)
1Trim, Top (Biscuit)
1WP9762391 Whirlpool Door Trim Assembly
2WP3196164 Whirlpool Screw
3Handle, Door (Black)
3Handle, Door (Biscuit)
3Handle, Door (White)
4WP9761344 Whirlpool Door Liner
5WP8053948 Whirlpool Door Glass
6WPW10316950 Whirlpool Window Frame
7WPW10031790 Whirlpool Screw
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347466 Whirlpool Door Hinge
11WPW10118454 Whirlpool Door Outer Glass White
11Glass, Outer Door (Biscuit)
11WPW10118455 Whirlpool Door Glass Assembly
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523166 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
14WP8523177 Whirlpool Door Trim Assembly
15W10777162 Whirlpool Screw
16Seal, Window
17WP3196794 Whirlpool Glass Bracket
18WP3196175 Whirlpool Screw
19W11502236 Whirlpool Door Trim
