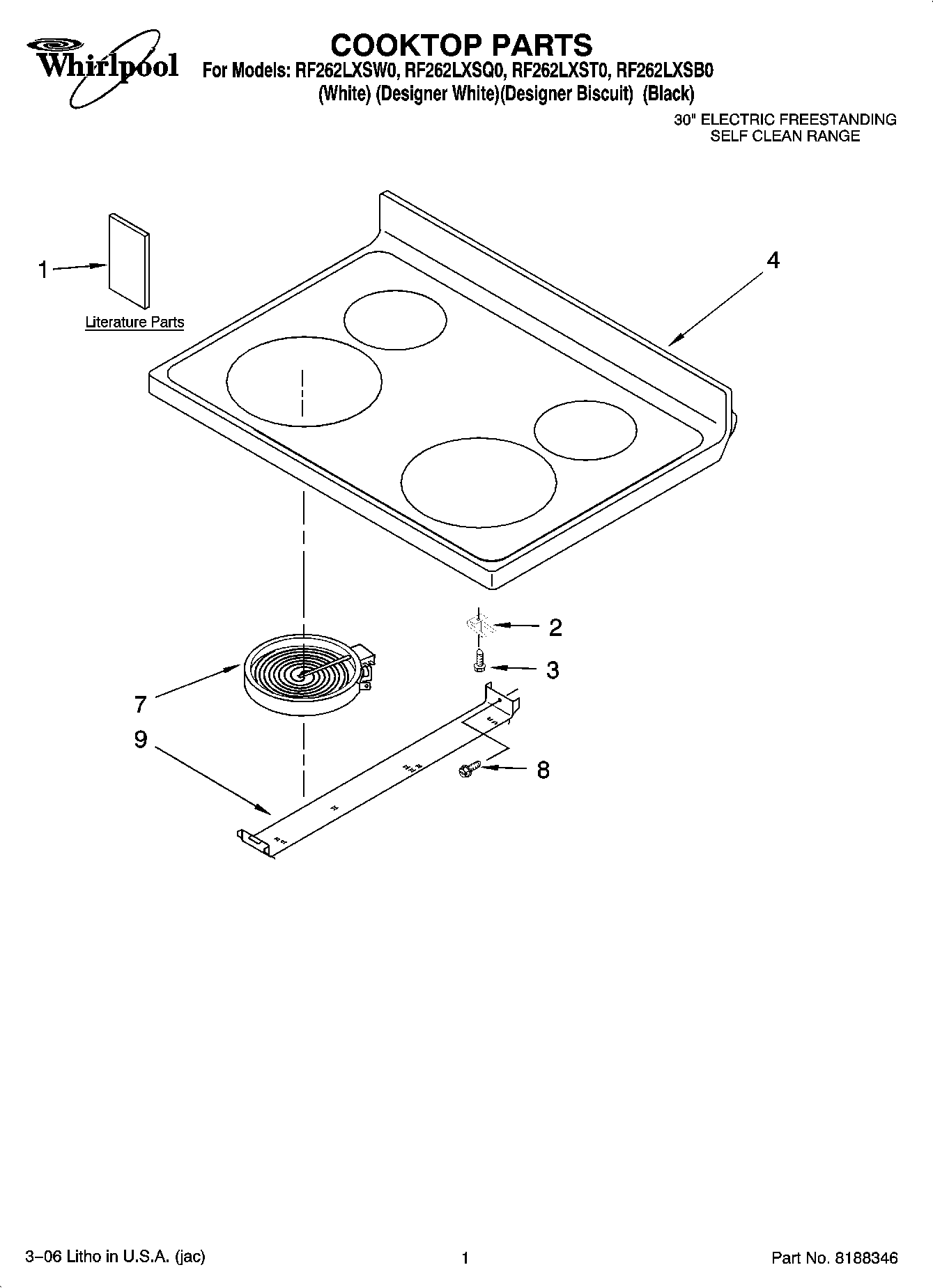

RF262LXST0 01 – COOKTOP PARTS

RF262LXST0 01 – COOKTOP PARTS

Written by

in

RF262LXST0 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Owners Manual
1Installation Instructions Template, Anti-Tip
1Tech Sheet
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (White)
4Cooktop (Biscuit)
4Cooktop (Black)
7W10823696 Whirlpool Radiant Surface Element
7W10823711 Whirlpool Surface Element Left Front and Right Rear
8WP3196557 Whirlpool Screw
9Bracket, Element ((2))
