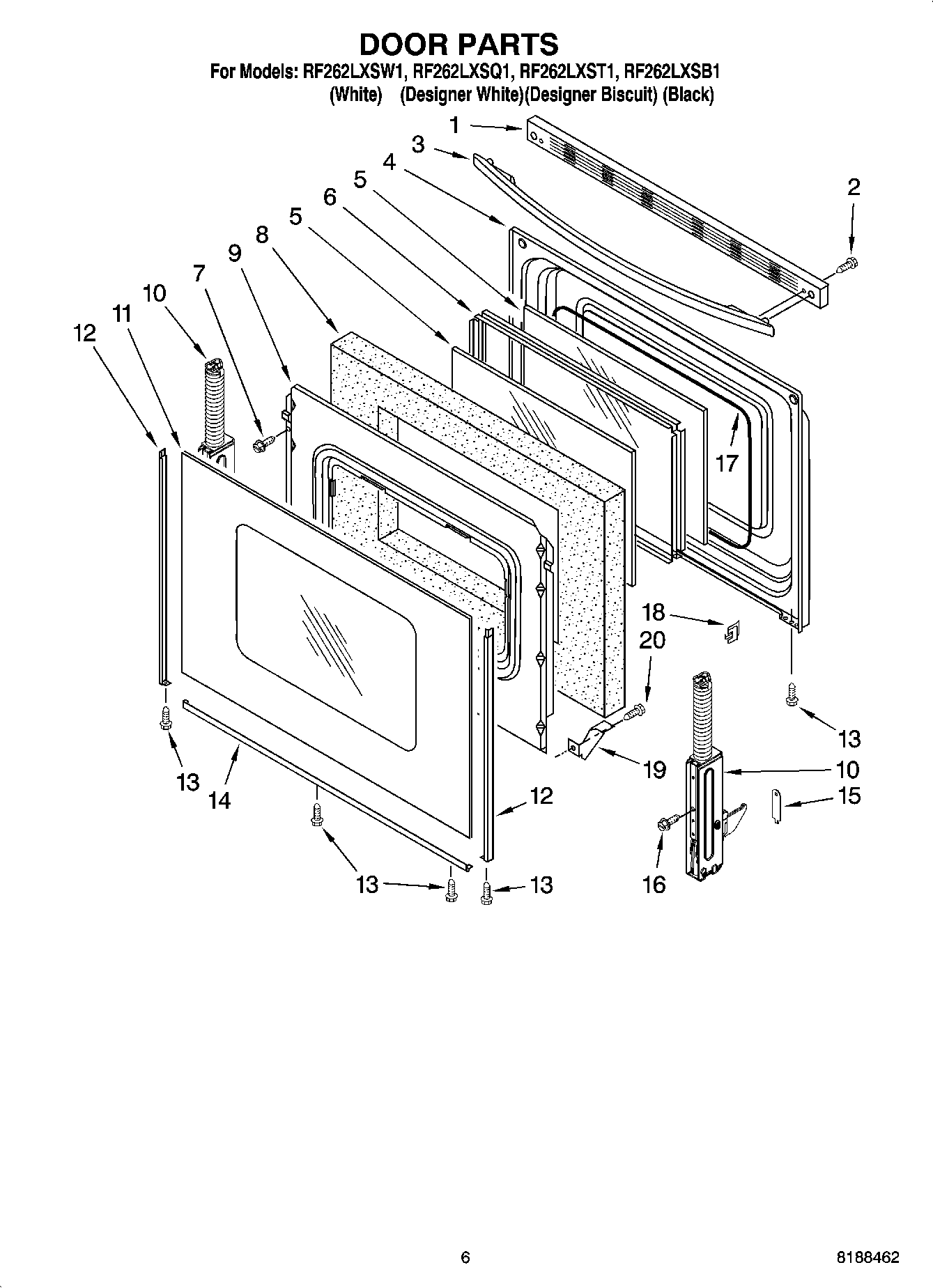

RF262LXST1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF262LXST1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF262LXST1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI160359A
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
WPL W10114894
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Wire (14 Ga. 200 c Brown)
8212471 Whirlpool Oven Paint
3184020 Whirlpool Oven Wire
Grease
WPL ARI160358A
WPL ARI160357A
WPL ARI160356A
WPL ARI160355A
WPL ARI160354A
WPL W10114915
WPL 9762953
WPL 9762428
WPL ARI160360A
WPL 8524132
WP3196154 Whirlpool Screw Assembly
Clip, Ground Wire
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
WPL 799832
4396923 Whirlpool Broil Pan Set Gray Porcelain
FOIL, ALUMINUM OVEN (18“ X 25 )
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
W11447673 Whirlpool Range Tip Anchor
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
WPW10208653 Whirlpool Insulation
Wire, 25` Roll (Red 14 Ga.)
1Trim, Top (White)
1Trim, Top (Biscuit)
1WP9762391 Whirlpool Door Trim Assembly
2WP3196164 Whirlpool Screw
3Handle, Door (White)
3Handle, Door (Biscuit)
3Handle, Door (Black)
4WP9761344 Whirlpool Door Liner
5WP8053948 Whirlpool Door Glass
6WPW10316950 Whirlpool Window Frame
7WPW10031790 Whirlpool Screw
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347466 Whirlpool Door Hinge
11Glass, Outer Door (Biscuit)
11WPW10118455 Whirlpool Door Glass Assembly
11WPW10118454 Whirlpool Door Outer Glass White
12WP8523167 Whirlpool Door Trim Assembly
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
159761517 Whirlpool Oven Clip Assembly
16W10777162 Whirlpool Screw
17Seal, Window
18Clip, Glass (4)
19WP3196794 Whirlpool Glass Bracket
20WP3196175 Whirlpool Screw
