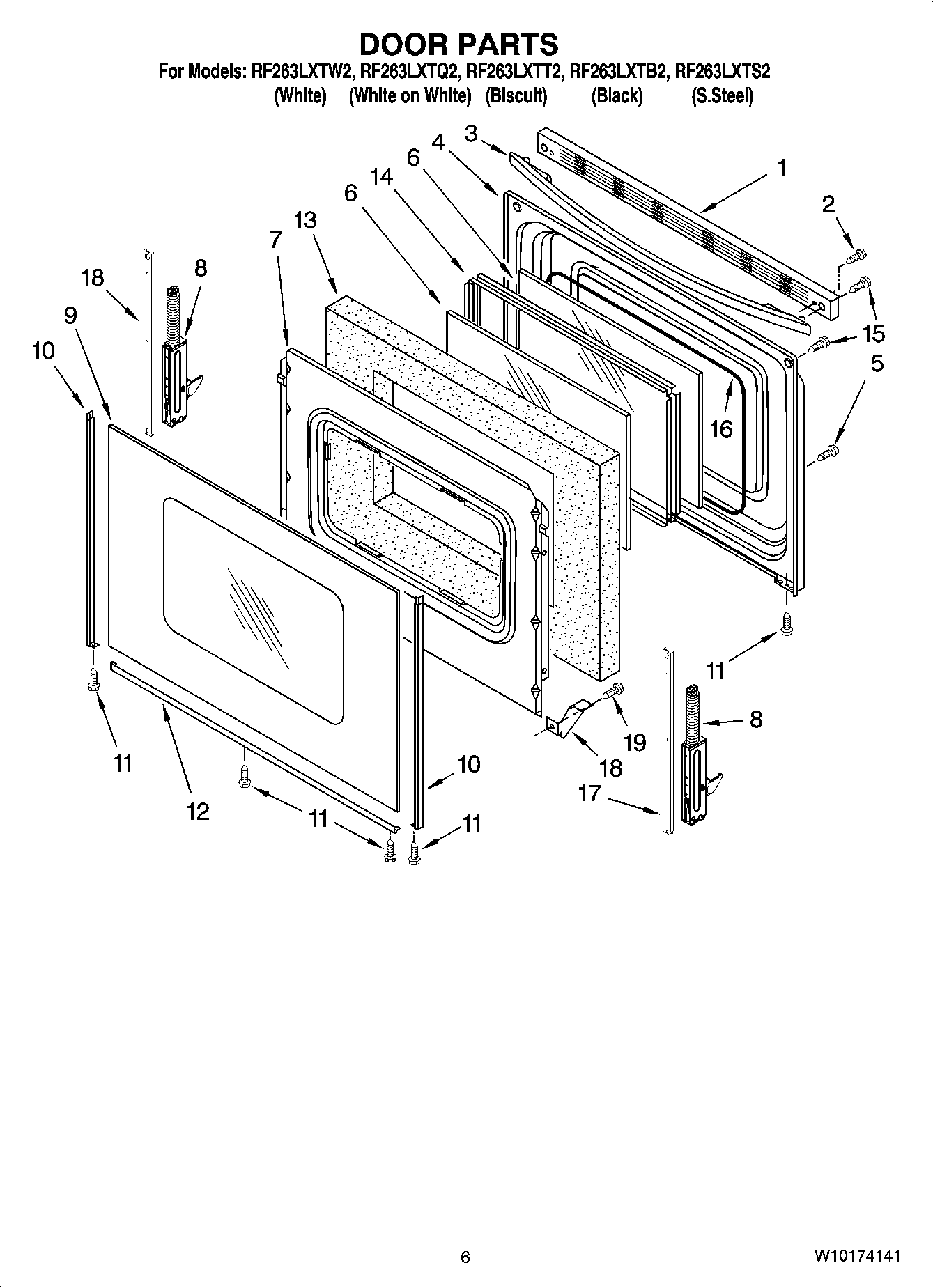

RF263LXTQ2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF263LXTQ2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF263LXTQ2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI121826A
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
8212471 Whirlpool Oven Paint
3184020 Whirlpool Oven Wire
WPL ARI121825A
WPL ARI121824A
WPL ARI121823A
WPL ARI121822A
WPL ARI121821A
W10251772 Whirlpool Wire Harness
W11172524 Whirlpool Wire Harness
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL ARI121827A
WP308605 Whirlpool Refrigerator Clamp
WP3196154 Whirlpool Screw Assembly
Clip, Ground Wire
4392901 Whirlpool Biscuit Spray Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
4396923 Whirlpool Broil Pan Set Gray Porcelain
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
799344 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
W11447673 Whirlpool Range Tip Anchor
4392899 Whirlpool Biscuit Touch-Up Paint
72017 Whirlpool Appliance Touch-Up Paint White
1Trim, Top (Biscuit)
1Trim, Top (White)
1WP9762391 Whirlpool Door Trim Assembly
2WP3196164 Whirlpool Screw
3Handle, Door (White)
3Handle, Door (Black)
3Handle, Door (Biscuit)
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7W11539580 Whirlpool Retainer
8W10347466 Whirlpool Door Hinge
8W10347464 Whirlpool Door Hinge
9WPW10118454 Whirlpool Door Outer Glass White
9WPW10330077 Whirlpool Door Glass
9WPW10118455 Whirlpool Door Glass Assembly
9Glass, Outer Door (Biscuit)
10W10761014 Whirlpool Right Door Trim
10WP8523167 Whirlpool Door Trim Assembly
10W10761018 Whirlpool Dishwasher Left Door Trim
10WP8523173 Whirlpool Door Trim
10WP8523172 Whirlpool Left Door Trim
10WP8523166 Whirlpool Door Trim
11W10491985 Whirlpool Screw
12WP8523180 Whirlpool Door Trim Assembly
12WP8523177 Whirlpool Door Trim Assembly
12WP8523178 Whirlpool Door Trim
12WP8523175 Whirlpool Door Trim Assembly
13WPW10278991 Whirlpool Insulation
14WPW10316950 Whirlpool Window Frame
15W10777162 Whirlpool Screw
16Seal, Window
17W11502236 Whirlpool Door Trim
18WP3196794 Whirlpool Glass Bracket
19WP3196175 Whirlpool Screw
