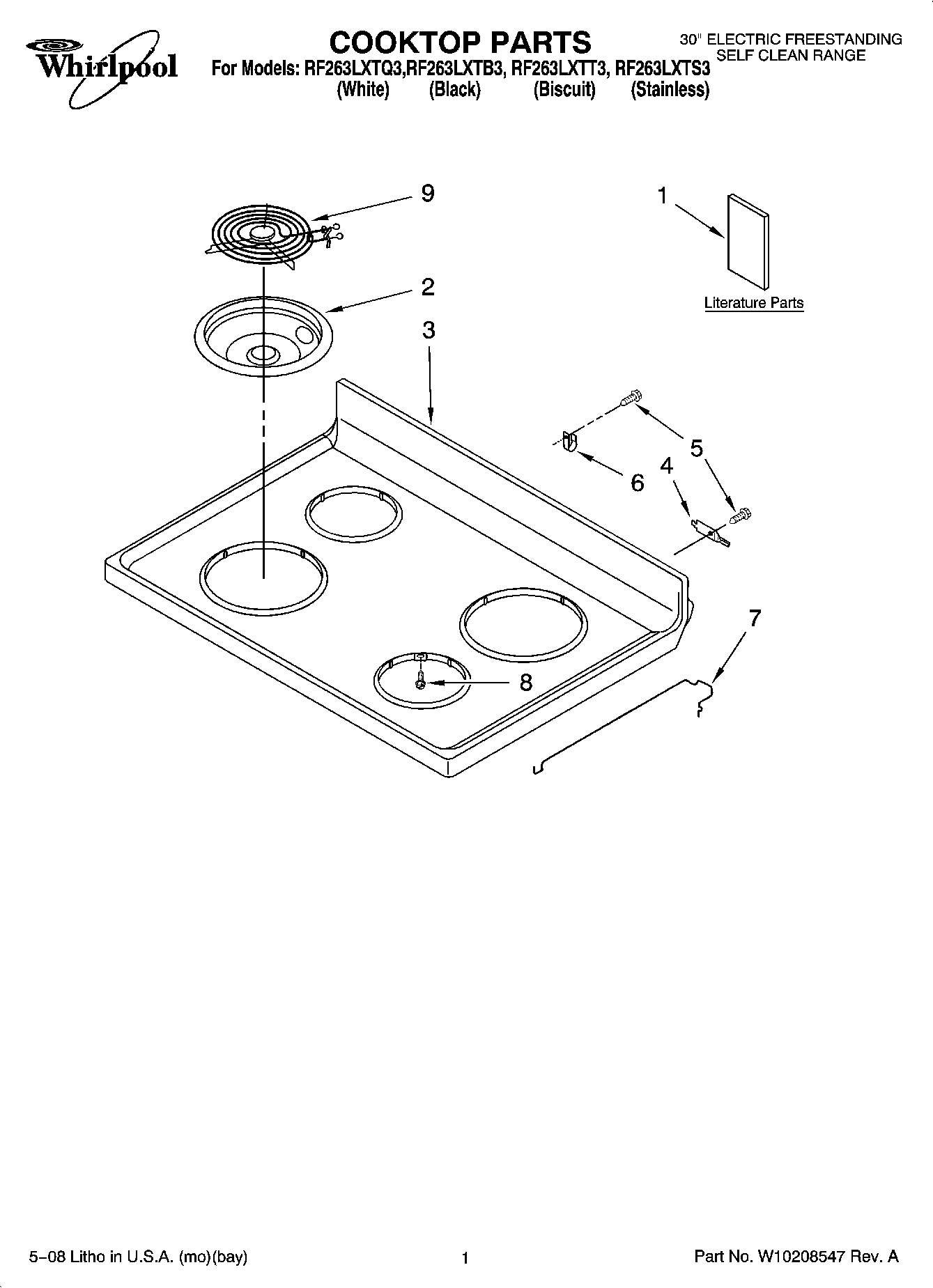

RF263LXTQ3 01 – COOKTOP PARTS

RF263LXTQ3 01 – COOKTOP PARTS

Written by

in

RF263LXTQ3 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet
1Instructions Installation
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
1SAFER COOKING TIPS (ENGLISH
1Owners Manual
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2DRIP BOWL 8" W/HOLE CHROME
3Cooktop (Biscuit)
38195534 Whirlpool Cooktop
38195532 Whirlpool Cooktop Power Switch
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
8WP3196154 Whirlpool Screw Assembly
9WPW10259865 Whirlpool Range 8" Surface Element
9WP660532 Whirlpool Oven Surface Element
