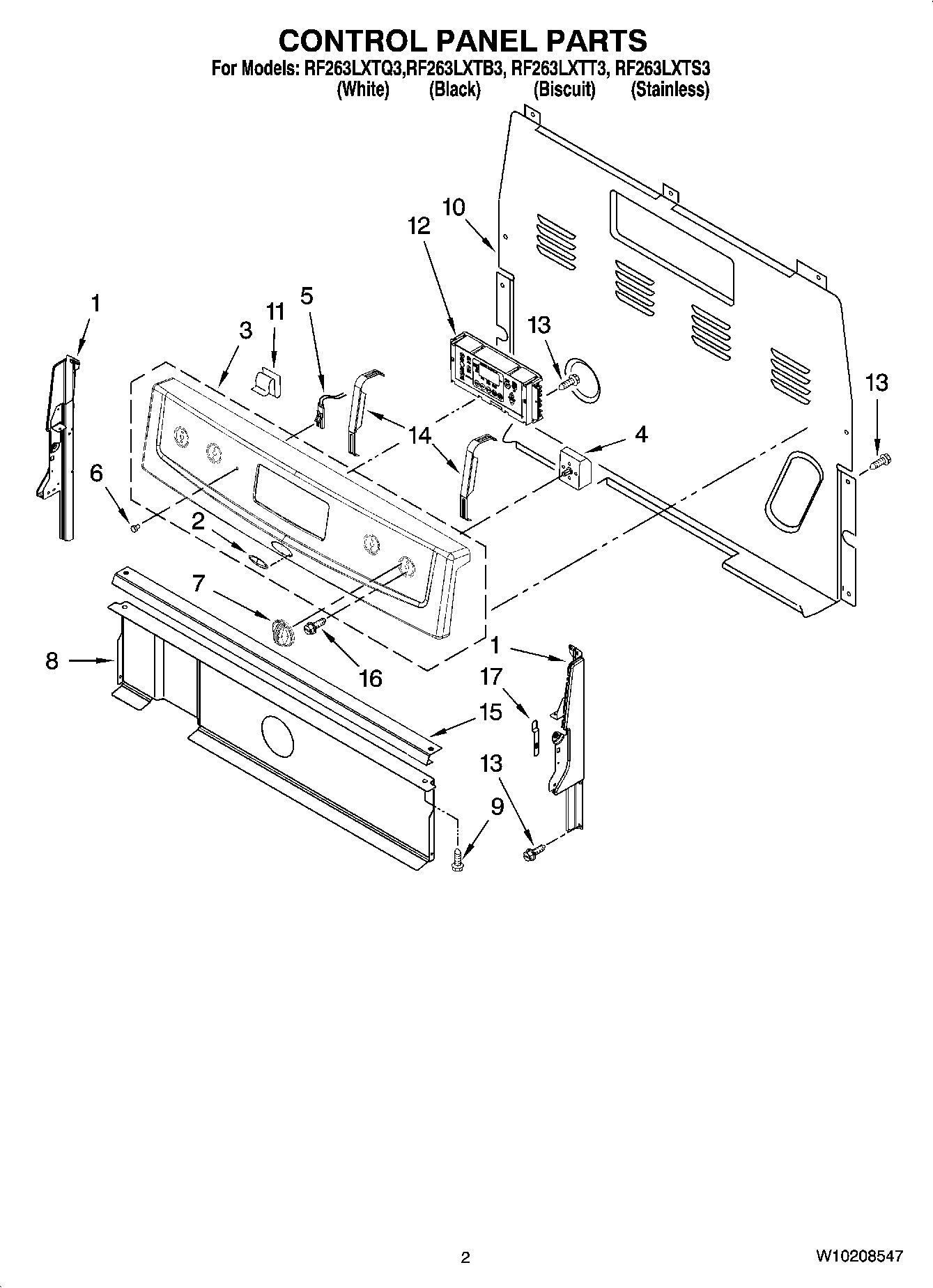

RF263LXTS3 02 – CONTROL PANEL PARTS

RF263LXTS3 02 – CONTROL PANEL PARTS

Written by

in

RF263LXTS3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1Endcap (Biscuit Left Hand)
1W11230612 Whirlpool Panel End Cap
1W11219365 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2Nameplate
3Panel, Console (Black)
3Panel, Control (Biscuit)
3Panel, Control (White)
3WPW10117592 Whirlpool Control Panel
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP9761963 Whirlpool Knob Assembly
7WP9761964 Whirlpool Knob
7WP9761962 Whirlpool Range Stove Burner Control Knob
8Shield, Heat
9WP3400832 Whirlpool Screw
93196166 Whirlpool Screw
9WPL 8281194
10WP8272473 Whirlpool Rear Cover
11WP8273564 Whirlpool Clip
12W10840298 Whirlpool Control Assembly
13SCREW
14BRACKET, MOUNTING EOC
15W10525121 Whirlpool Control Bracket
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
