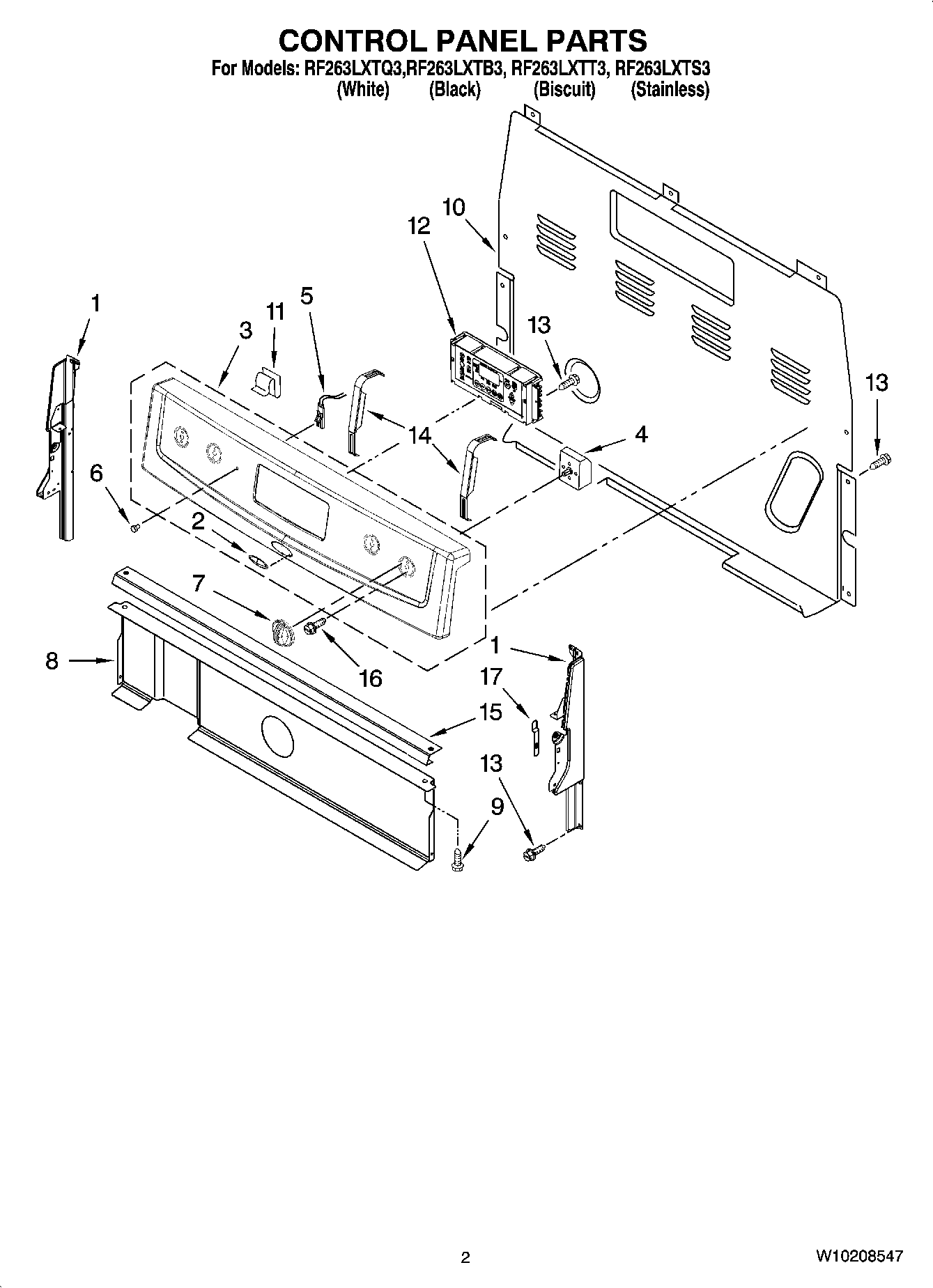

RF263LXTT3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	Endcap (Biscuit Left Hand)
1	W11230612 Whirlpool Panel End Cap
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	Nameplate
3	Panel, Console (Black)
3	Panel, Control (Biscuit)
3	Panel, Control (White)
3	WPW10117592 Whirlpool Control Panel
4	WP3148952 Whirlpool Oven Infinite Switch
4	WP3149400 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP9761963 Whirlpool Knob Assembly
7	WP9761964 Whirlpool Knob
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	Shield, Heat
9	WP3400832 Whirlpool Screw
9	3196166 Whirlpool Screw
9	WPL 8281194
10	WP8272473 Whirlpool Rear Cover
11	WP8273564 Whirlpool Clip
12	W10840298 Whirlpool Control Assembly
13	SCREW
14	BRACKET, MOUNTING EOC
15	W10525121 Whirlpool Control Bracket
16	WP3400882 Whirlpool Screw
17	3196200 Whirlpool Clip
