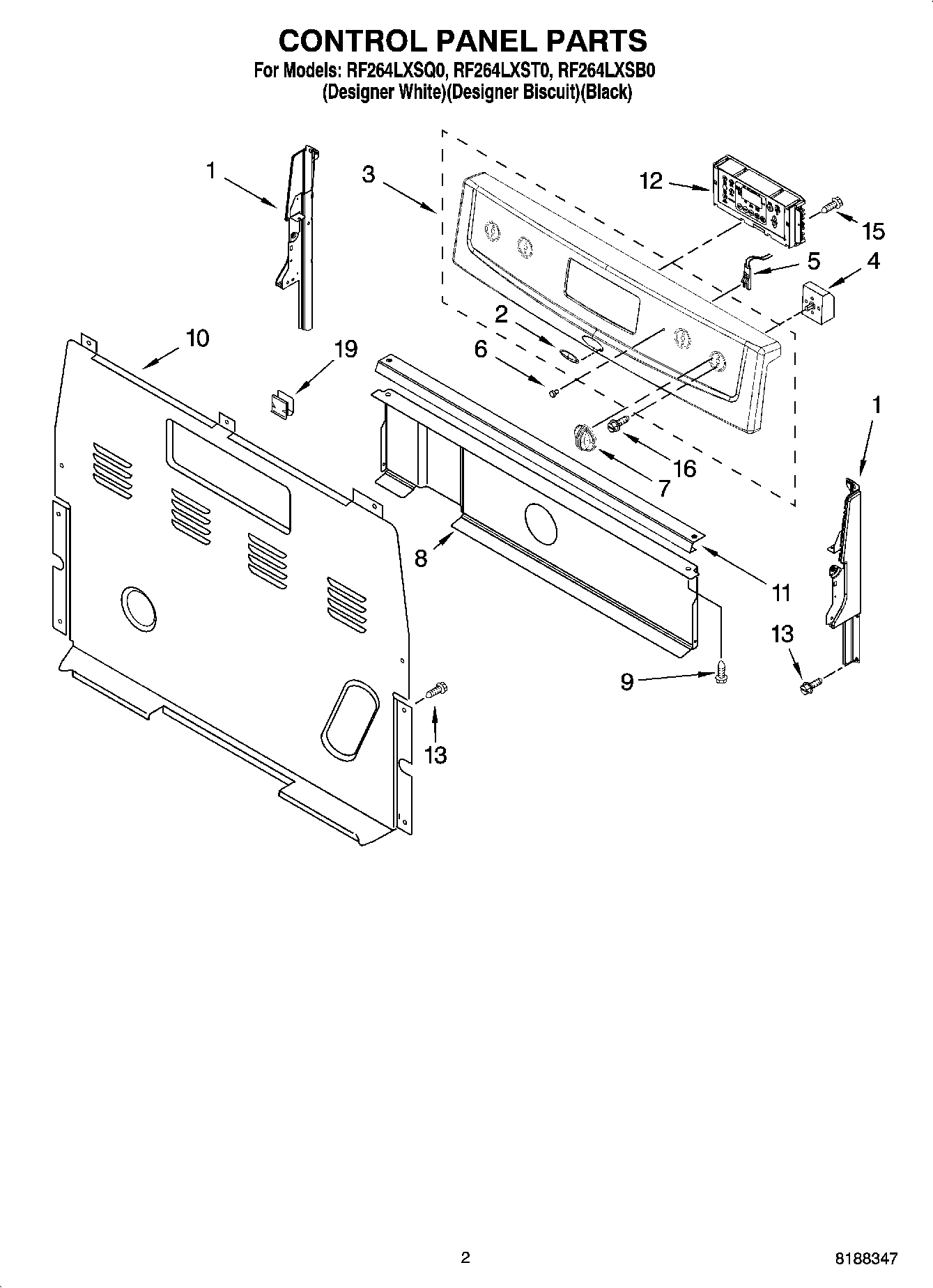

RF264LXSB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1	W11230612 Whirlpool Panel End Cap
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	Endcap (Biscuit Left Hand)
1	W11219665 Whirlpool Panel Endcap
2	Nameplate
3	Panel, Control (Black)
3	Panel, Control (White)
3	Panel, Control (Biscuit)
4	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP9761964 Whirlpool Knob
7	WP9761963 Whirlpool Knob Assembly
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	Shield, Heat
9	3196166 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	Bracket, Console
12	Control, Range (White)
12	Control, Range (Black)
12	Control, Range (Biscuit)
13	SCREW
15	WP3196557 Whirlpool Screw
16	WP3400882 Whirlpool Screw
19	3196200 Whirlpool Clip
