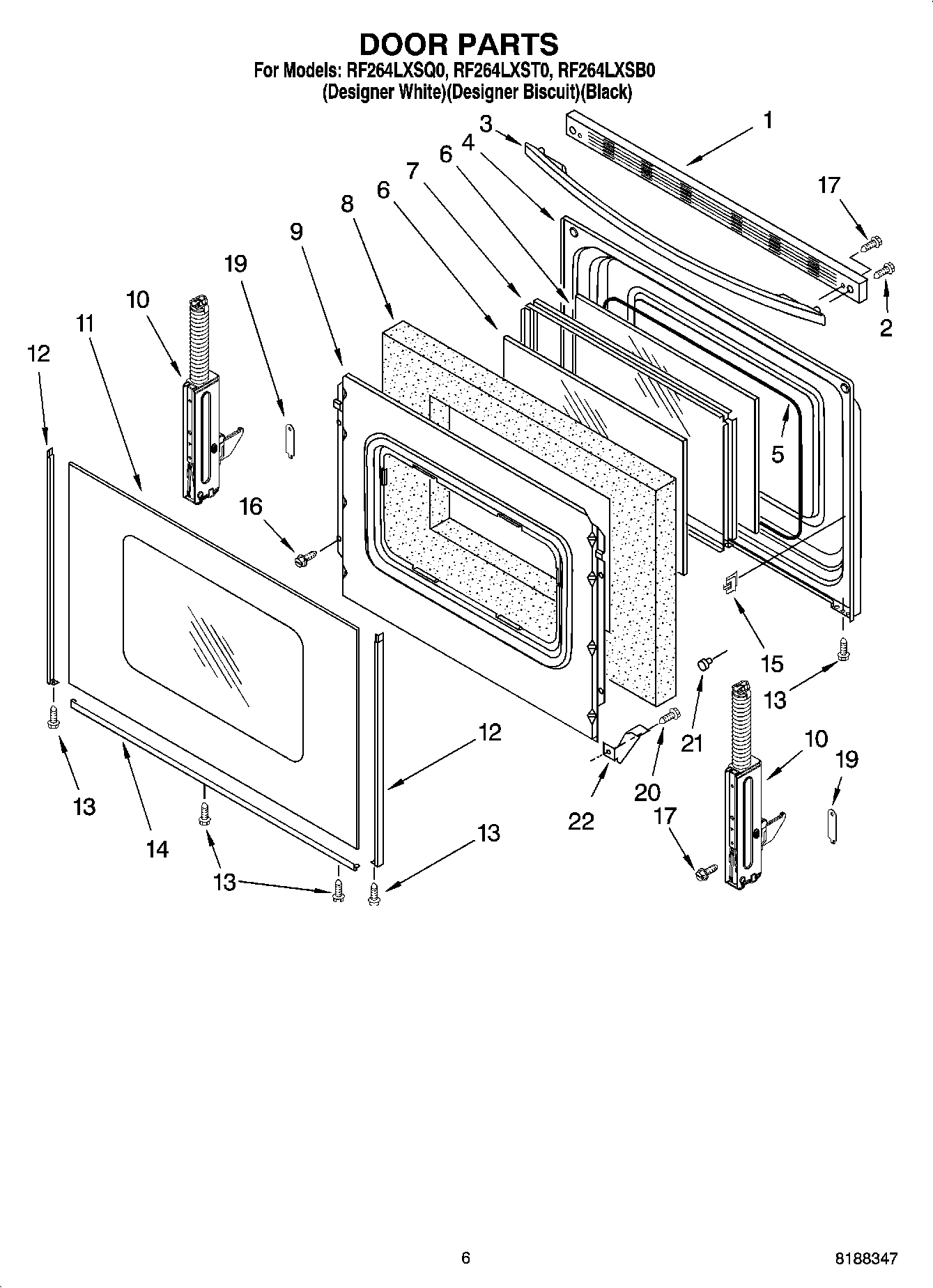

RF264LXSB0 05 – DOOR PARTS, OPTIONAL PARTS

RF264LXSB0 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

RF264LXSB0 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI121935A
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Clip, Ground Wire
	8212471 Whirlpool Oven Paint
	Grease
	WPL ARI121934A
	WPL ARI121933A
	WPL ARI121932A
	WPL ARI121931A
	WPL ARI121930A
	WPL ARI121929A
	WPL 9762952
	WPL 9762428
	WPL ARI121936A
	WP3196154 Whirlpool Screw Assembly
	3184020 Whirlpool Oven Wire
	814381 Whirlpool Pin
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	WPL 799832
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	4392899 Whirlpool Biscuit Touch-Up Paint
	W11447673 Whirlpool Range Tip Anchor
	799344 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	350930 Whirlpool White Spray Paint
1	Trim, Top (Biscuit)
1	WP9762391 Whirlpool Door Trim Assembly
1	Trim, Top (White)
2	WP3196164 Whirlpool Screw
3	Handle, Door (Biscuit)
3	Handle, Door (White)
3	Handle, Door (Black)
4	WP9761344 Whirlpool Door Liner
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347466 Whirlpool Door Hinge
11	WPW10118454 Whirlpool Door Outer Glass White
11	WPW10118455 Whirlpool Door Glass Assembly
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523172 Whirlpool Left Door Trim
12	WP8523173 Whirlpool Door Trim
12	WP8523166 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	W10761014 Whirlpool Right Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523178 Whirlpool Door Trim
15	Clip, Glass (4)
16	WPW10031790 Whirlpool Screw
17	W10777162 Whirlpool Screw
19	9761517 Whirlpool Oven Clip Assembly
20	WP3196175 Whirlpool Screw
21	238614 Whirlpool Bumper Hinge
22	WP3196794 Whirlpool Glass Bracket
