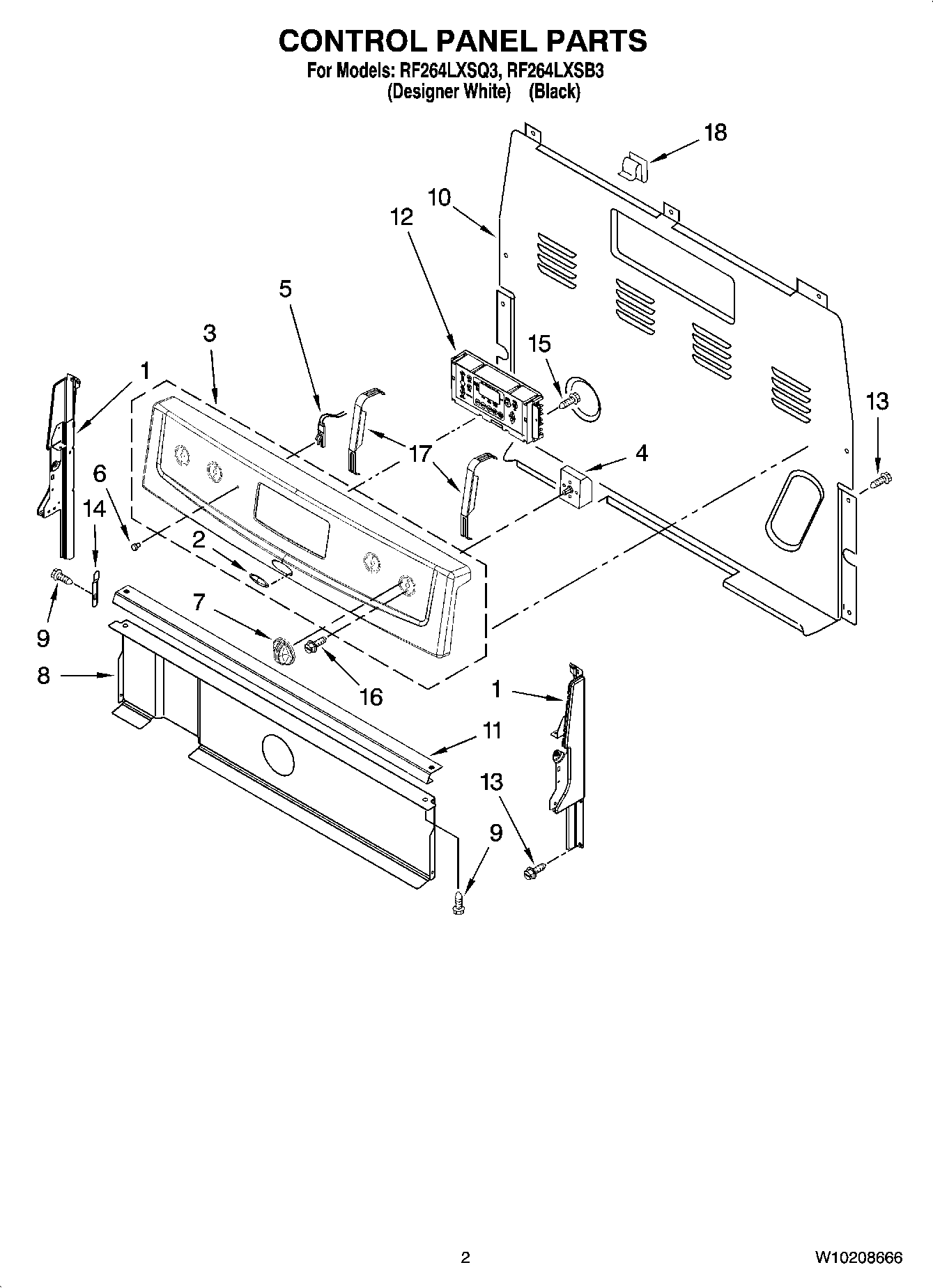

RF264LXSB3 02 – CONTROL PANEL PARTS

RF264LXSB3 02 – CONTROL PANEL PARTS

Written by

in

RF264LXSB3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2Nameplate
3Panel, Control (Black)
3Panel, Control (White)
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP9761962 Whirlpool Range Stove Burner Control Knob
7WP9761964 Whirlpool Knob
8Shield, Heat
93196166 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W10840298 Whirlpool Control Assembly
13SCREW
143196200 Whirlpool Clip
15WP3196557 Whirlpool Screw
16WP3400882 Whirlpool Screw
17BRACKET, MOUNTING EOC
18WP8273564 Whirlpool Clip
