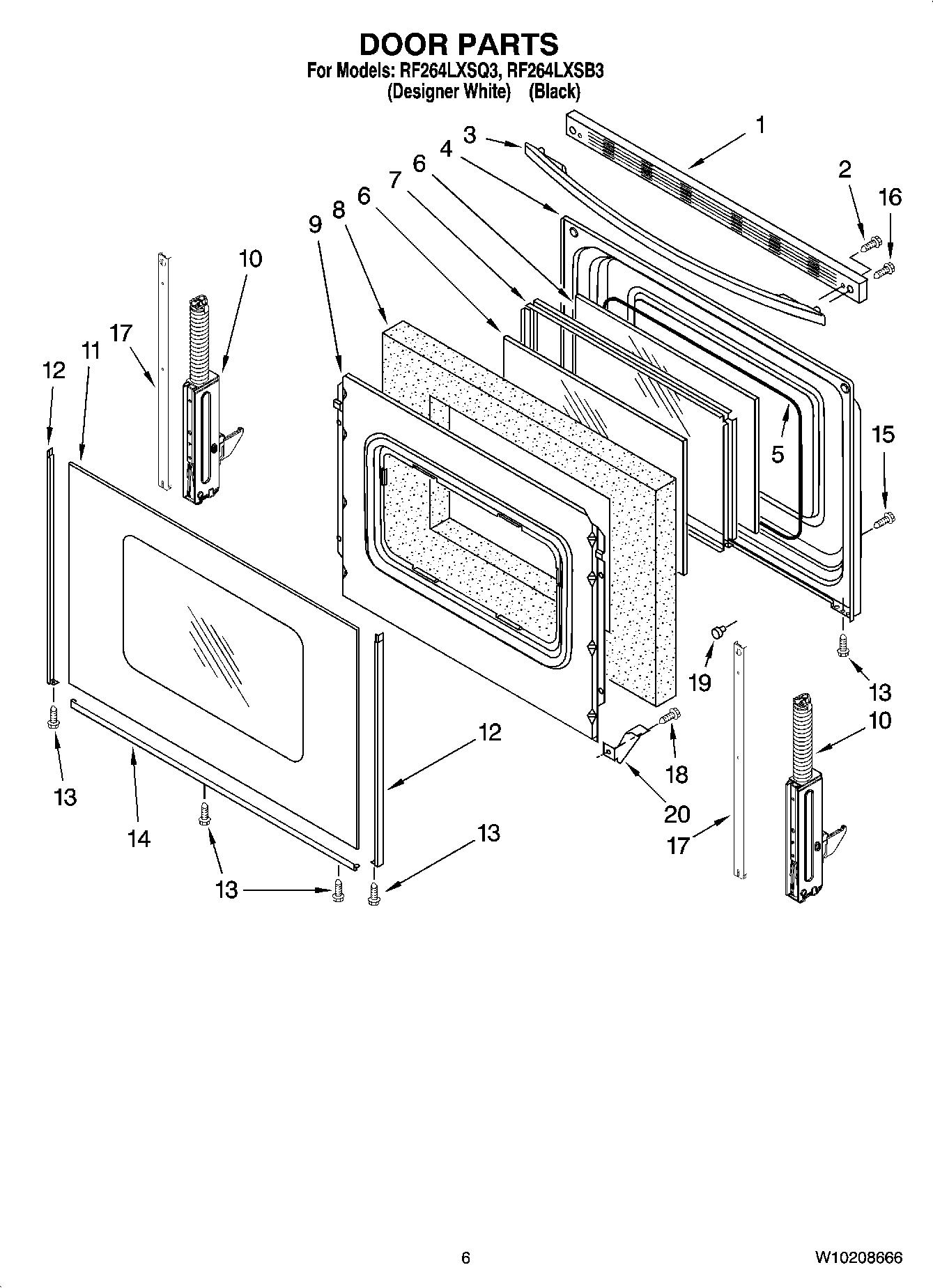

RF264LXSB3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF264LXSB3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF264LXSB3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI121961A
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
8212471 Whirlpool Oven Paint
3184020 Whirlpool Oven Wire
WPL ARI121960A
WPL ARI121959A
WPL ARI121958A
WPL ARI121957A
WPL ARI121956A
W10251772 Whirlpool Wire Harness
W11172524 Whirlpool Wire Harness
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL ARI121962A
WP3196154 Whirlpool Screw Assembly
Clip, Ground Wire
Wire, 25` Roll (Red 14 Ga.)
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
4396923 Whirlpool Broil Pan Set Gray Porcelain
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
4392901 Whirlpool Biscuit Spray Paint
W11447673 Whirlpool Range Tip Anchor
WPL 799832
4392899 Whirlpool Biscuit Touch-Up Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
1W10817433 Whirlpool Vent Trim
1TRIM-VENT
2W10817436 Whirlpool Screw
3WPW10323589 Whirlpool Door Handle
3W10817434 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347466 Whirlpool Door Hinge
11WPW10118454 Whirlpool Door Outer Glass White
11WPW10118455 Whirlpool Door Glass Assembly
12W10761014 Whirlpool Right Door Trim
12WP8523166 Whirlpool Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523172 Whirlpool Left Door Trim
13W10491985 Whirlpool Screw
14WP8523177 Whirlpool Door Trim Assembly
14WP8523175 Whirlpool Door Trim Assembly
15WPW10031790 Whirlpool Screw
16WPW10200660 Whirlpool Range Oven Door Handle Screw
17W11502236 Whirlpool Door Trim
18WP3196175 Whirlpool Screw
19238614 Whirlpool Bumper Hinge
20WP3196794 Whirlpool Glass Bracket
