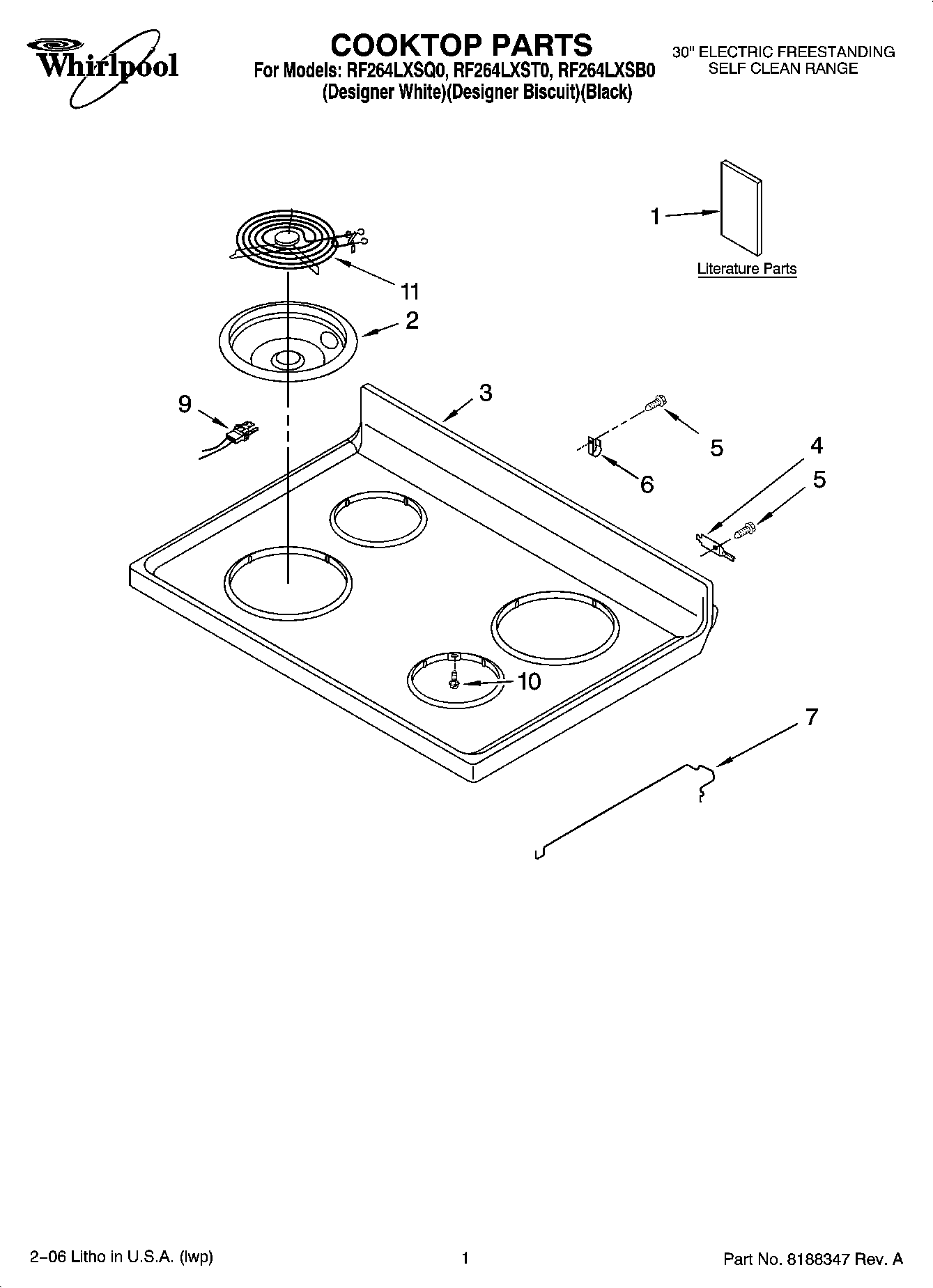

RF264LXST0 01 – COOKTOP PARTS

RF264LXST0 01 – COOKTOP PARTS

Written by

in

RF264LXST0 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet
1Installation Instructions Template, Anti-Tip
1Owners Manual
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
1SAFER COOKING TIPS (ENGLISH
28522882 Whirlpool Oven 6" Drip Pan
2WPW10290350 Whirlpool Stove Drip Bowl
2WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
2W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
28522881 Whirlpool Oven 8" Drip Pan
3Cooktop (Biscuit)
38195534 Whirlpool Cooktop
38195532 Whirlpool Cooktop Power Switch
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
9814399 Whirlpool Receptacle Kit
10WP3196154 Whirlpool Screw Assembly
11WP660532 Whirlpool Oven Surface Element
11WPW10259865 Whirlpool Range 8" Surface Element
