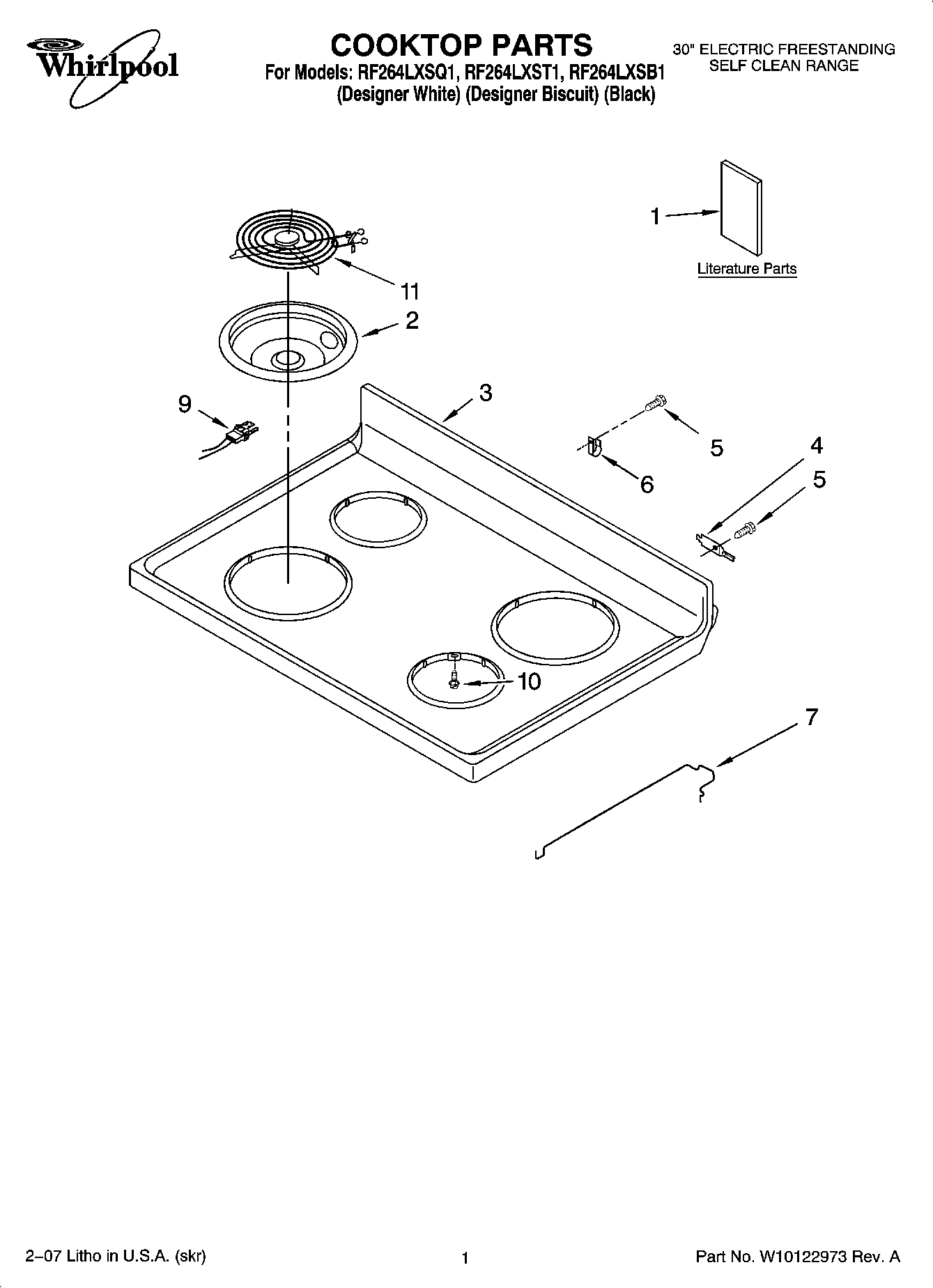

RF264LXST1 01 – COOKTOP PARTS

Products

Position	Product
1	Tech Sheet
1	Installation Instructions Template, Anti-Tip
1	Owners Manual
1	Anti-Tip Template (English/French)
1	Anti-Tip Template (English/Spanish)
1	SAFER COOKING TIPS (ENGLISH
2	8522882 Whirlpool Oven 6" Drip Pan
2	WPW10290350 Whirlpool Stove Drip Bowl
2	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
2	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
2	8522881 Whirlpool Oven 8" Drip Pan
3	Cooktop (Biscuit)
3	8195534 Whirlpool Cooktop
3	8195532 Whirlpool Cooktop Power Switch
4	WP3195060 Whirlpool Cooktop Pin
5	SCREW
6	WP308605 Whirlpool Refrigerator Clamp
7	WP3195812 Whirlpool Cooktop Rod
9	814399 Whirlpool Receptacle Kit
10	WP3196154 Whirlpool Screw Assembly
11	WP660532 Whirlpool Oven Surface Element
11	WPW10259865 Whirlpool Range 8" Surface Element
