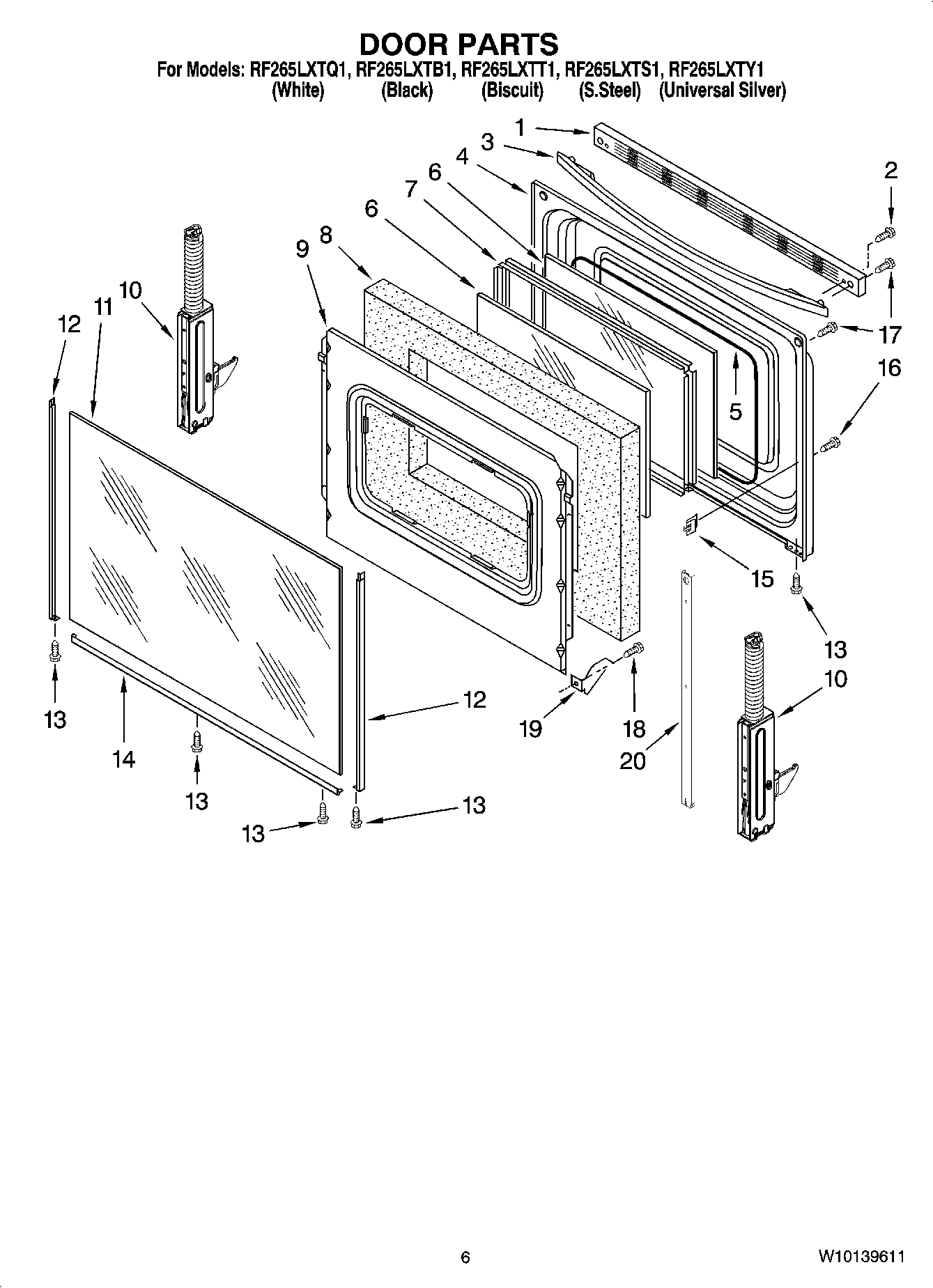

RF265LXTB1 05 – DOOR PARTS, OPTIONAL PARTS

RF265LXTB1 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

RF265LXTB1 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI160410A
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	WP3196154 Whirlpool Screw Assembly
	8212471 Whirlpool Oven Paint
	3184020 Whirlpool Oven Wire
	Grease
	WPL ARI160409A
	WPL ARI160408A
	WPL ARI160407A
	WPL ARI160406A
	WPL ARI160405A
	WPL W10114894
	WPL W10114334
	WPL W10115055
	W11172524 Whirlpool Wire Harness
	WPL ARI160411A
	Clip, Ground Wire
	4392899 Whirlpool Biscuit Touch-Up Paint
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	285006 Whirlpool Spray
	WPW10208653 Whirlpool Insulation
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	W11447673 Whirlpool Range Tip Anchor
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	Wire, 25` Roll (Red 14 Ga.)
	72017 Whirlpool Appliance Touch-Up Paint White
	FOIL, ALUMINUM OVEN (18“ X 25 )
	350930 Whirlpool White Spray Paint
	WPL 799832
1	Trim, Top (Universal Silver)
1	Trim, Top (Biscuit)
1	Trim, Top (White)
1	WP9762391 Whirlpool Door Trim Assembly
2	WP3196164 Whirlpool Screw
3	Handle, Door (White)
3	Handle, Door (Black)
3	Handle, Door (Biscuit)
3	Handle, Door (Universal Silver)
4	WP9761344 Whirlpool Door Liner
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347466 Whirlpool Door Hinge
10	W10347464 Whirlpool Door Hinge
11	WPW10118455 Whirlpool Door Glass Assembly
11	Glass, Outer (Stainless Steel)
11	Glass, Outer Door (Biscuit)
11	WPW10118454 Whirlpool Door Outer Glass White
12	8184858 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
12	WP8523173 Whirlpool Door Trim
12	WP8523166 Whirlpool Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523175 Whirlpool Door Trim Assembly
14	Trim, Bottom (Universal Silver)
14	WP8523178 Whirlpool Door Trim
14	WP8523180 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
16	WPW10031790 Whirlpool Screw
17	W10777162 Whirlpool Screw
18	WP3196175 Whirlpool Screw
19	WP3196794 Whirlpool Glass Bracket
20	W11502236 Whirlpool Door Trim
