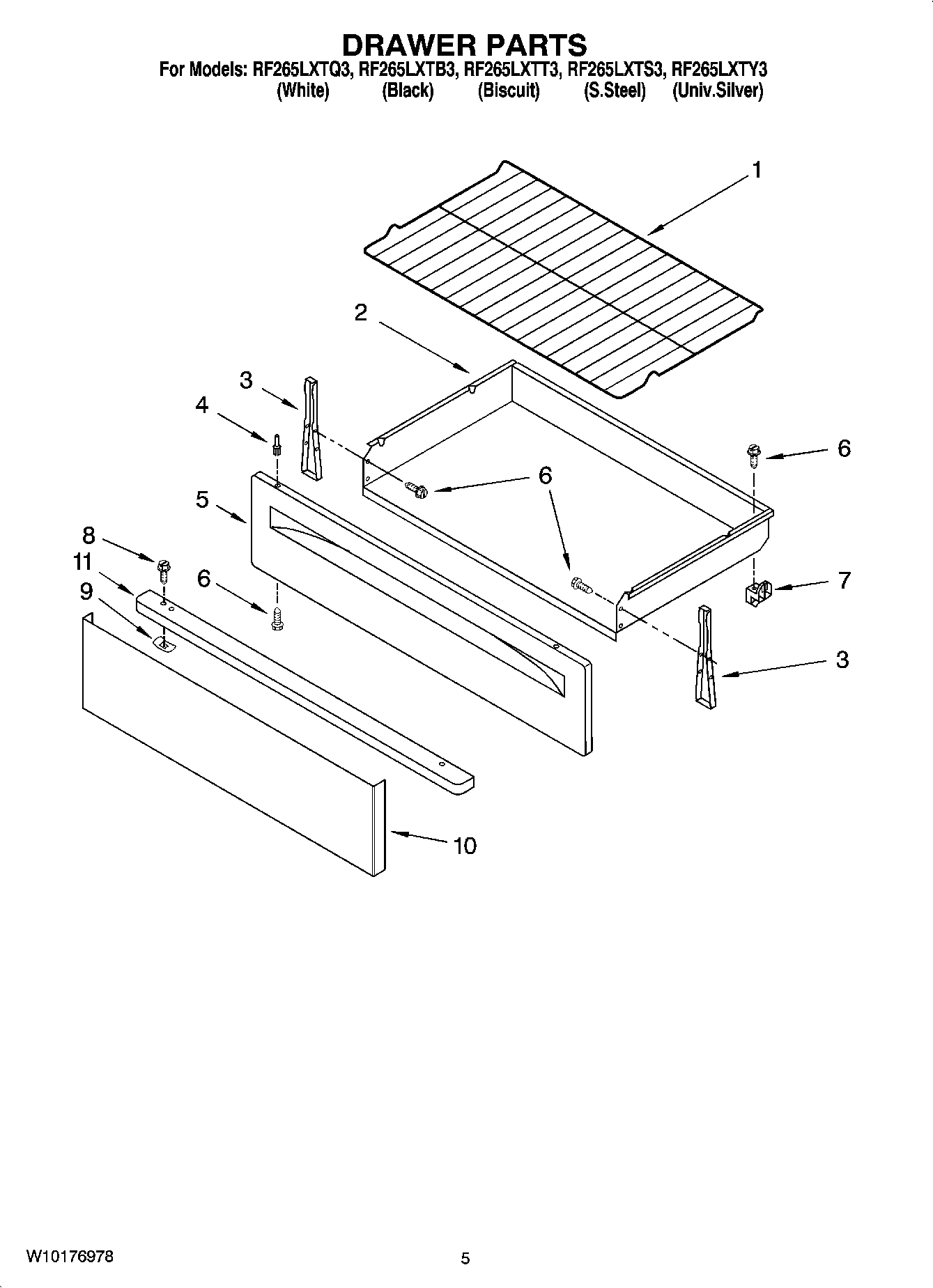

RF265LXTB3 04 – DRAWER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	Drawer, Storage
3	W10838990 Whirlpool Mounting Bracket
4	3196815 Whirlpool Oven Rivet
4	WP3196813 Whirlpool Rivet
4	WP3196814 Whirlpool Rivet
5	W11230488 Whirlpool Drawer Panel
5	W11219377 Whirlpool Drawer Panel
5	W11230476 Whirlpool Drawer Panel
6	WP3400832 Whirlpool Screw
7	WP8053334 Whirlpool Drawer Glide
8	WPW10031790 Whirlpool Screw
9	WP9781235 Whirlpool Clip
10	Panel (Stls. Model)
11	Handle, Drawer
11	Handle (Black)
