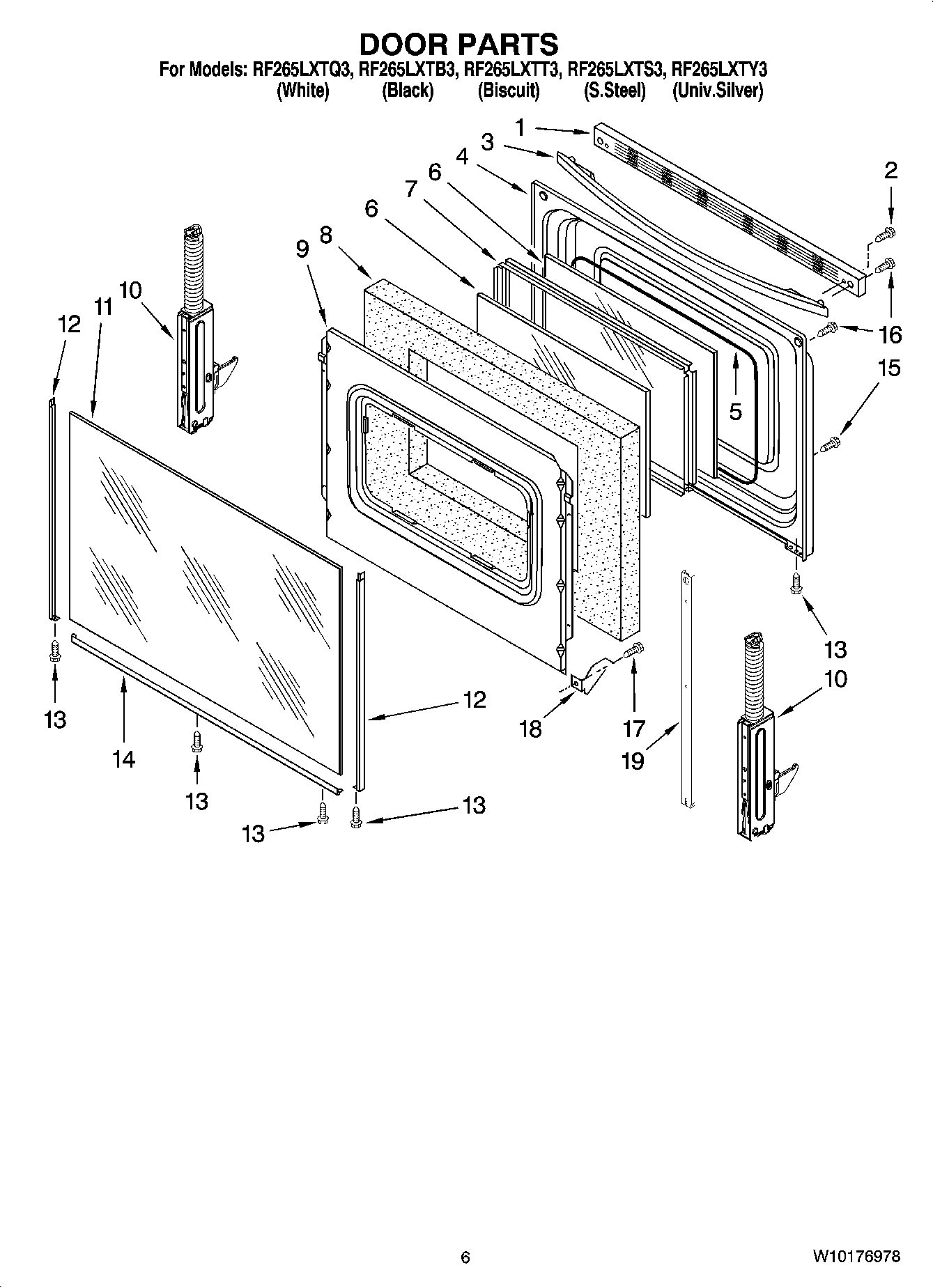

RF265LXTB3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF265LXTB3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF265LXTB3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI160427A
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WPL W10111767
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
Grease
WP3196154 Whirlpool Screw Assembly
WPL ARI160426A
WPL ARI160425A
WPL ARI160424A
WPL ARI160423A
WPL ARI160422A
WPL ARI160421A
WPL W10111768
WPL W10111766
W11172524 Whirlpool Wire Harness
WPL ARI160428A
WPW10144763 Whirlpool Tie Wire
242831 Whirlpool Oven Wire
Clip, Ground Wire
W11447673 Whirlpool Range Tip Anchor
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL 799832
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
4392899 Whirlpool Biscuit Touch-Up Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
1Trim, Top (Universal Silver)
1Trim, Top (White)
1WP9762391 Whirlpool Door Trim Assembly
1Trim, Top (Biscuit)
2WP3196164 Whirlpool Screw
3Handle, Door (White)
3Handle, Door (Black)
3Handle, Door (Biscuit)
3Handle, Door (Universal Silver)
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
10W10347466 Whirlpool Door Hinge
11WPW10118454 Whirlpool Door Outer Glass White
11WPW10330077 Whirlpool Door Glass
11Glass, Outer Door (Biscuit)
11WPW10118455 Whirlpool Door Glass Assembly
12WP8523173 Whirlpool Door Trim
12WP8523166 Whirlpool Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523167 Whirlpool Door Trim Assembly
128184858 Whirlpool Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523172 Whirlpool Left Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
14WP8523175 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
14Trim, Bottom (Universal Silver)
15WPW10031790 Whirlpool Screw
16W10777162 Whirlpool Screw
17WP3196175 Whirlpool Screw
18WP3196794 Whirlpool Glass Bracket
19W11502236 Whirlpool Door Trim
