RF265LXTQ2 04 – DRAWER PARTS

RF265LXTQ2 04 – DRAWER PARTS

Written by

in

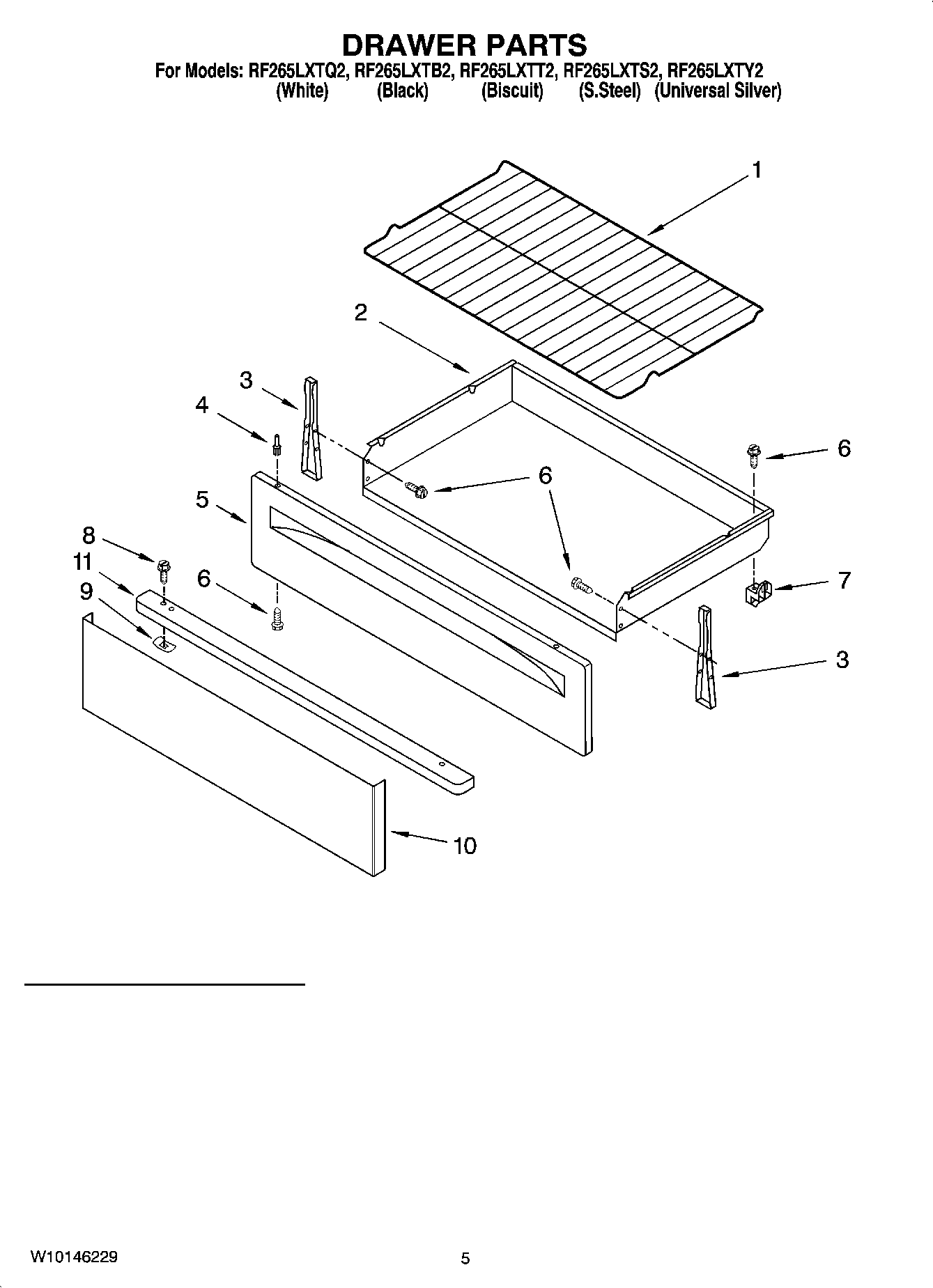

RF265LXTQ2 04 – DRAWER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Storage
3W10838990 Whirlpool Mounting Bracket
43196815 Whirlpool Oven Rivet
4WP3196813 Whirlpool Rivet
4WP3196814 Whirlpool Rivet
5W11230488 Whirlpool Drawer Panel
5W11219377 Whirlpool Drawer Panel
5W11230476 Whirlpool Drawer Panel
6WP3400832 Whirlpool Screw
7WP8053334 Whirlpool Drawer Glide
8WPW10031790 Whirlpool Screw
9WP9781235 Whirlpool Clip
10Panel, Stainless
11Handle, Drawer
11Handle (Black)
