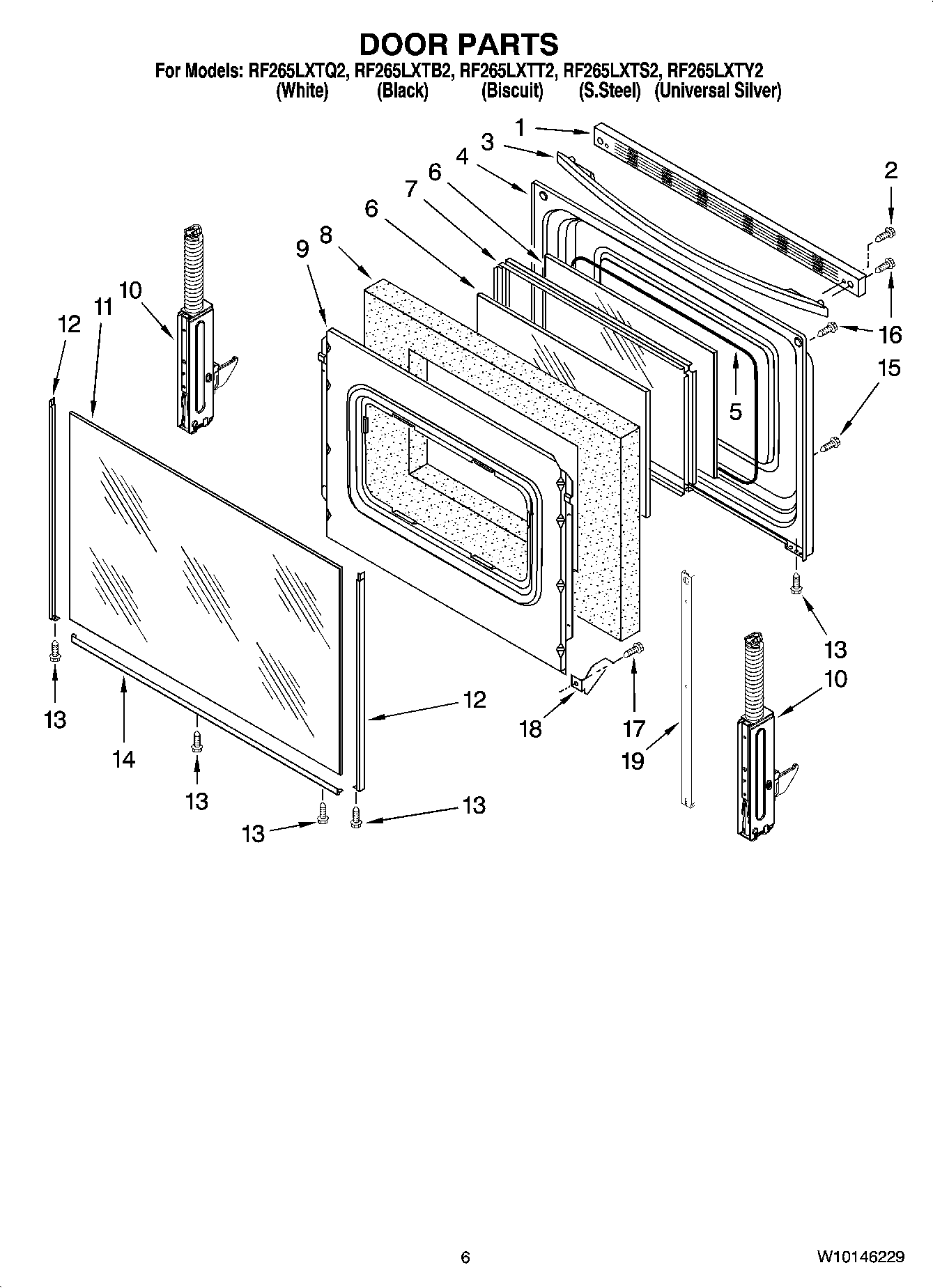

RF265LXTS2 05 – DOOR PARTS, OPTIONAL PARTS

RF265LXTS2 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

RF265LXTS2 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI160463A
	W11244557 Whirlpool Screw
	WPL W10111767
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 200 c Brown)
	8212471 Whirlpool Oven Paint
	3184020 Whirlpool Oven Wire
	Grease
	WPL ARI160469A
	WPL ARI160468A
	WPL ARI160467A
	WPL ARI160466A
	WPL ARI160465A
	WPL W10111768
	WPL W10111766
	W11172524 Whirlpool Wire Harness
	WPL ARI160464A
	WP3196154 Whirlpool Screw Assembly
	Clip, Ground Wire
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	Wire, 25` Roll (Red 14 Ga.)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	4392899 Whirlpool Biscuit Touch-Up Paint
	WPL 799832
	W11447673 Whirlpool Range Tip Anchor
	WPW10208653 Whirlpool Insulation
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
1	WP9762391 Whirlpool Door Trim Assembly
1	Trim, Top (Universal Silver)
1	Trim, Top (White)
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	Handle, Door (White)
3	Handle, Door (Biscuit)
3	Handle, Door (Universal Silver)
3	Handle, Door (Black)
4	WP9761344 Whirlpool Door Liner
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347464 Whirlpool Door Hinge
10	W10347466 Whirlpool Door Hinge
11	WPW10118454 Whirlpool Door Outer Glass White
11	WPW10118455 Whirlpool Door Glass Assembly
11	Glass, Outer Door (Biscuit)
11	Glass, Outer (Stainless Steel)
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523172 Whirlpool Left Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523173 Whirlpool Door Trim
12	WP8523166 Whirlpool Door Trim
12	W10761014 Whirlpool Right Door Trim
12	8184858 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	Trim, Bottom (Universal Silver)
14	WP8523178 Whirlpool Door Trim
14	WP8523180 Whirlpool Door Trim Assembly
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
15	WPW10031790 Whirlpool Screw
16	W10777162 Whirlpool Screw
17	WP3196175 Whirlpool Screw
18	WP3196794 Whirlpool Glass Bracket
19	W11502236 Whirlpool Door Trim
