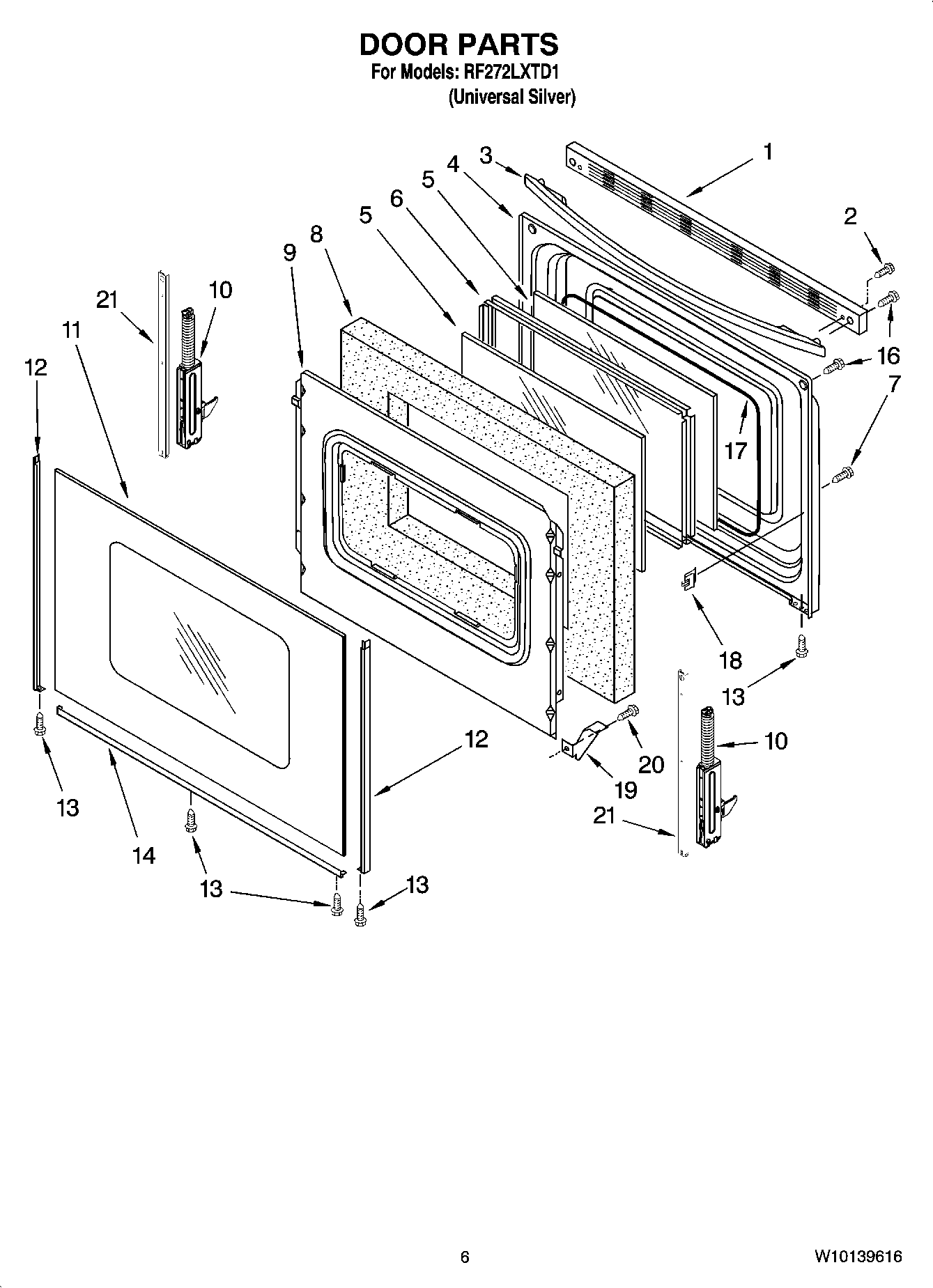

RF272LXTD1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF272LXTD1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF272LXTD1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI160543A
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Grease
WP3196154 Whirlpool Screw Assembly
WPL ARI160544A
WPL ARI160542A
WPL ARI160541A
WPL ARI160540A
WPL ARI160539A
WPL ARI160538A
WPL W10114915
WPL W10095540
WPL W10114894
W11172524 Whirlpool Wire Harness
WPL 8524132
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
4396923 Whirlpool Broil Pan Set Gray Porcelain
WPL 799832
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
W11447673 Whirlpool Range Tip Anchor
Almond (Uncut)
350930 Whirlpool White Spray Paint
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Clip, Ground Wire
1WP9762391 Whirlpool Door Trim Assembly
2WP3196164 Whirlpool Screw
3Handle, Door (Black)
4WP9761344 Whirlpool Door Liner
5WP8053948 Whirlpool Door Glass
6WPW10316950 Whirlpool Window Frame
7WPW10031790 Whirlpool Screw
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
11Glass, Outer Door
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
16W10777162 Whirlpool Screw
17Seal, Window
18Clip, Glass (4)
19WP3196794 Whirlpool Glass Bracket
20WP3196175 Whirlpool Screw
21W11502236 Whirlpool Door Trim
