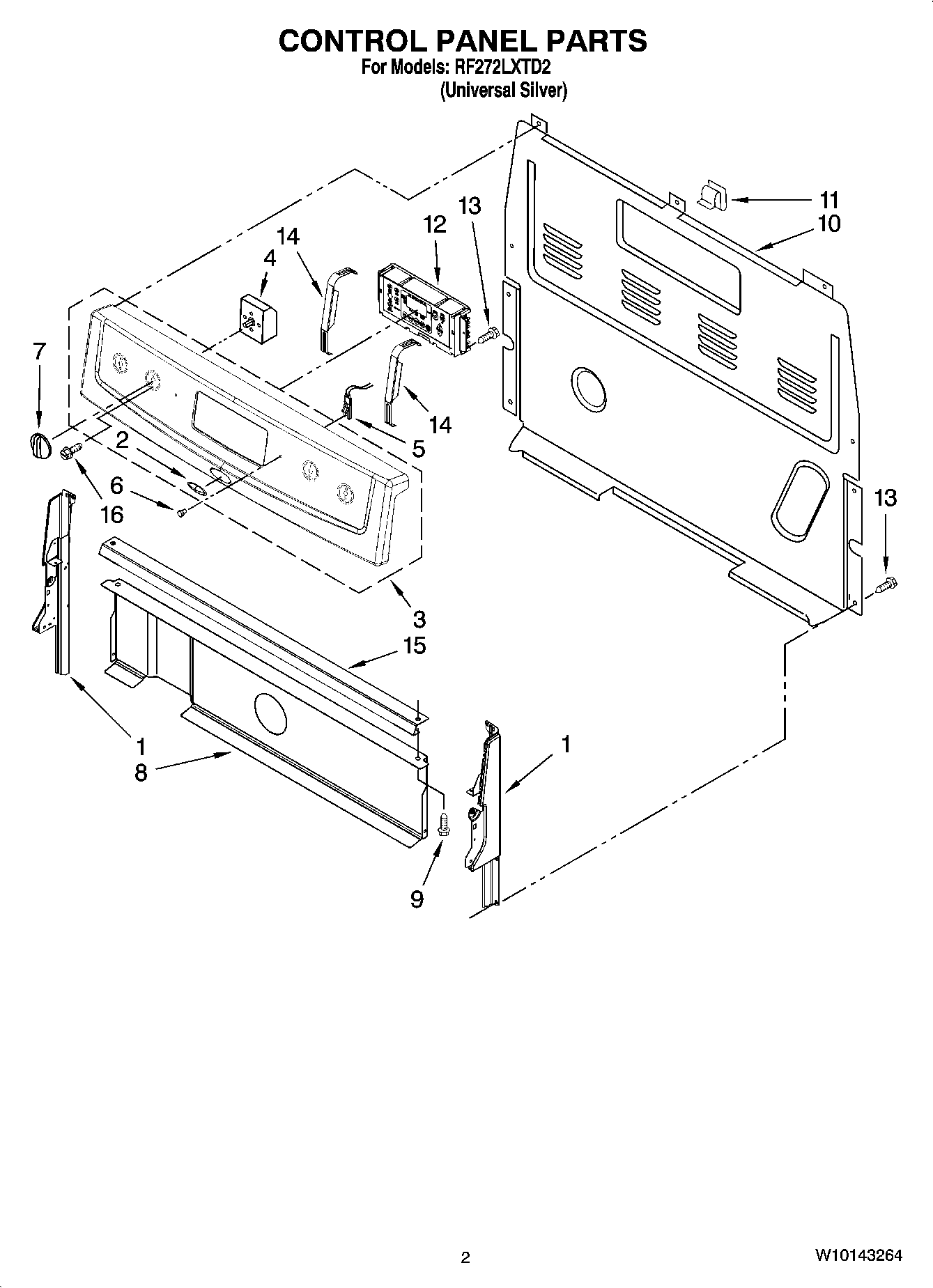

RF272LXTD2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2Nameplate
3Panel, Control
4WP3149404 Whirlpool Oven Surface Element Switch
4WP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP9761964 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400832 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11WP8273564 Whirlpool Clip
12W10876180 Whirlpool Electronic Control Board
13SCREW
14BRACKET, MOUNTING EOC
15Bracket, Console
16WP3400882 Whirlpool Screw
