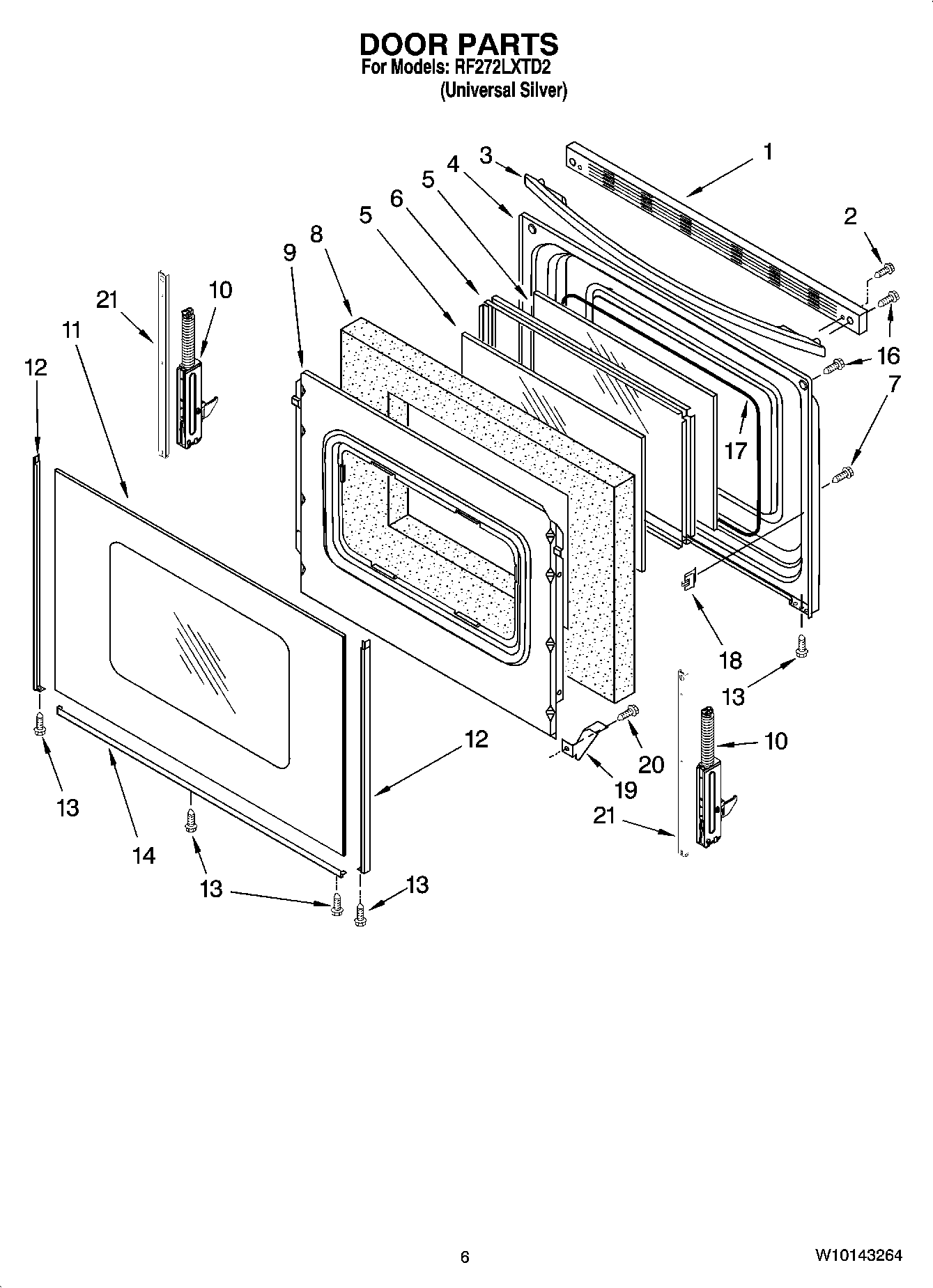

RF272LXTD2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF272LXTD2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF272LXTD2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI160551A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
3184020 Whirlpool Oven Wire
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Grease
WP3196154 Whirlpool Screw Assembly
WPL ARI160550A
WPL ARI160549A
WPL ARI160548A
WPL ARI160547A
WPL ARI160546A
WPL W10111790
WPL W10111771
WPL W10111766
W11172524 Whirlpool Wire Harness
WPL ARI160552A
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
WPW10208653 Whirlpool Insulation
Wire, 25` Roll (Red 14 Ga.)
WP72107 Whirlpool Touchup
Almond (Uncut)
4396923 Whirlpool Broil Pan Set Gray Porcelain
350942 Whirlpool Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
511873 Whirlpool Refrigerator Paint
WPL 799832
285006 Whirlpool Spray
799344 Whirlpool Refrigerator Paint
Clip, Ground Wire
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
W11447673 Whirlpool Range Tip Anchor
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1WP9762391 Whirlpool Door Trim Assembly
2WP3196164 Whirlpool Screw
3Handle, Door (Black)
4WP9761344 Whirlpool Door Liner
5WP8053948 Whirlpool Door Glass
6WPW10316950 Whirlpool Window Frame
7WPW10031790 Whirlpool Screw
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
11Glass, Outer Door
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
16W10777162 Whirlpool Screw
17Seal, Window
18Clip, Glass (4)
19WP3196794 Whirlpool Glass Bracket
20WP3196175 Whirlpool Screw
21W11502236 Whirlpool Door Trim
