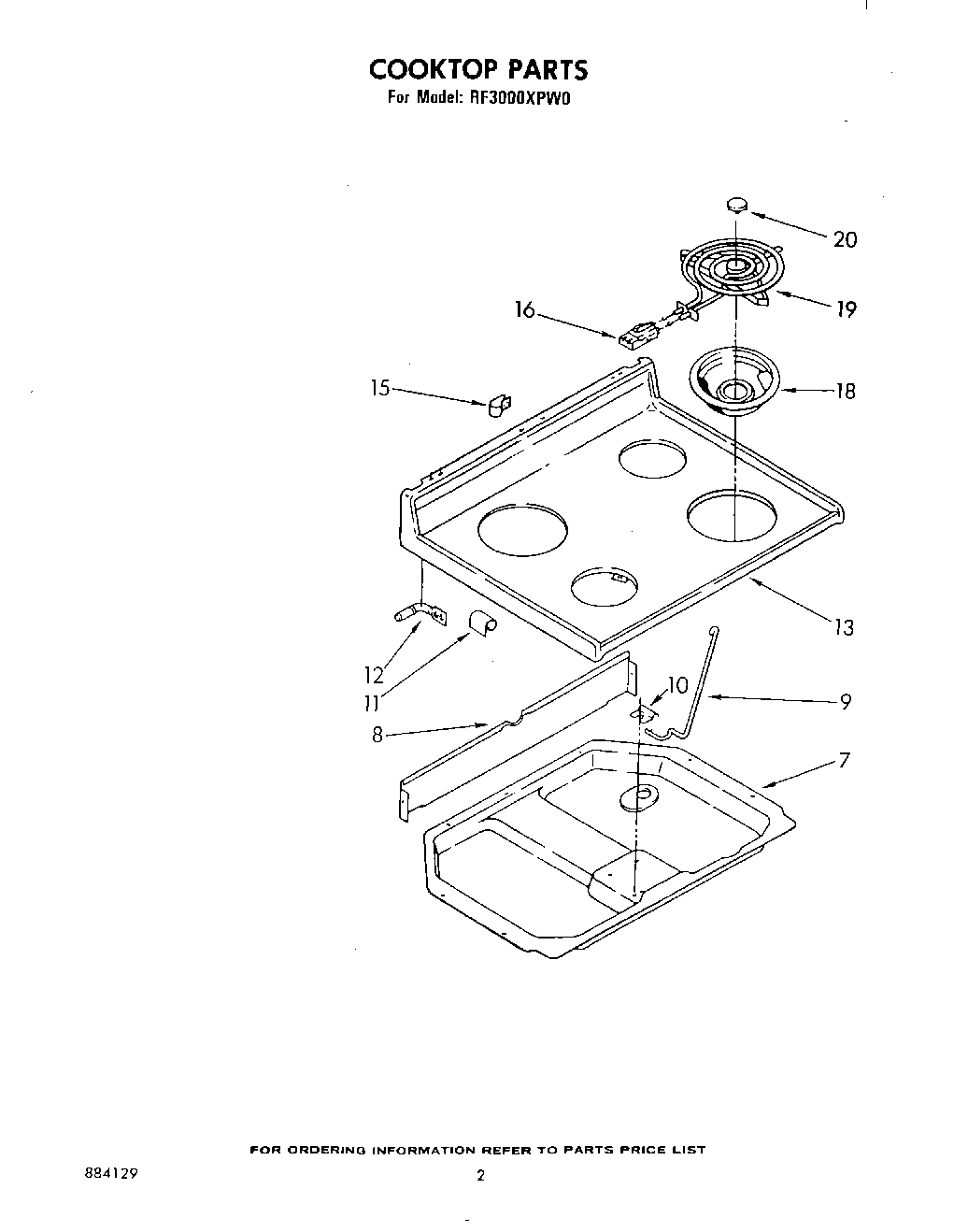

RF3000XPW0 02 – COOK TOP

Products

Position	Product
	WP660533 Whirlpool Oven 8" Surface Element
7	Burner Box
8	Shield, Wiring
9	Rod, Cooktop
10	WP3390631 Whirlpool Screw
10	Retainer, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Platinum)
13	Cooktop (Toast)
13	Cooktop (Almond)
13	Cooktop (White)
13	Cooktop (Harvest Gold)
15	WP308605 Whirlpool Refrigerator Clamp
15	SCREW
16	BURNER RECEPTACLE KIT
16	WP313808 Whirlpool Screw
18	DRIP BOWL 8" W/HOLE CHROME
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
