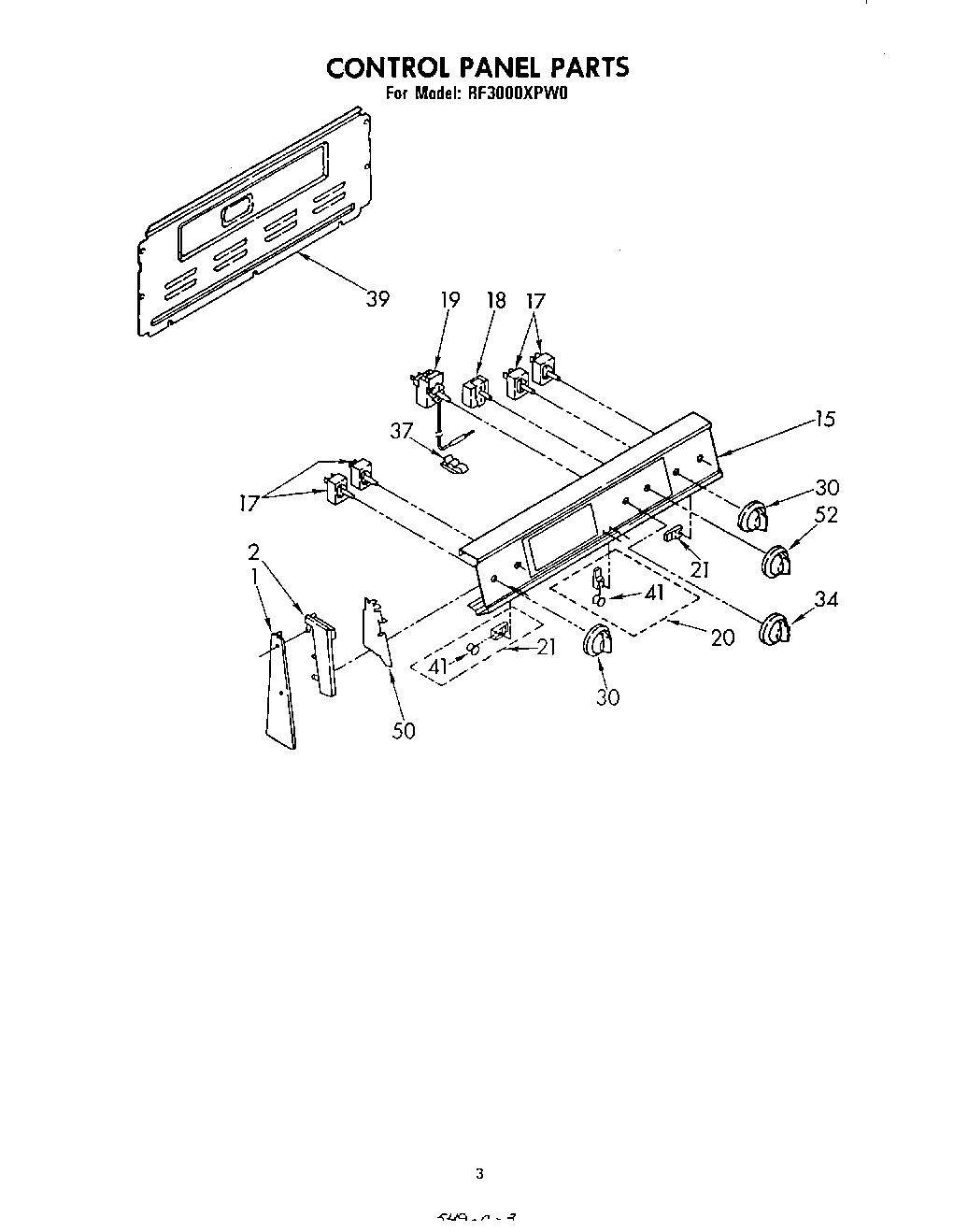

RF3000XPW0 03 – CONTROL PANEL

RF3000XPW0 03 – CONTROL PANEL

Written by

in

RF3000XPW0 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1WP3390631 Whirlpool Screw
1Screw 10-32×7/16“
1Screw 10-32×1“
2Screw,
2End Cap R.H.
2End Cap L.H.
15Panel, Control (Toast)
15Panel, Control (White)
15Panel, Control (Almond)
15Panel, Control (Gold)
15Panel, Control (Platinum)
15Washer
17WP3149404 Whirlpool Oven Surface Element Switch
17WP3149400 Whirlpool Oven Infinite Switch
18Switch, Selector
18WP486579 Whirlpool Air Conditioner Screw
19Thermostat, Oven (Alt.)
19Thermostat, Oven (Alt.)
19Thermostat, Oven
20Light, Indicator
21Light, Indicator (Surface Unit (2))
30Knob, Switch (4)
34Knob, Switch
34Screw
37Clip, Tube
39Harness-Conduit Asm.
39SCREW
41Lens, Amber
50Shield (2)
50WP965173 Whirlpool Dishwasher Screw
52Knob, Selector
52WP688805 Whirlpool Spring Clip
