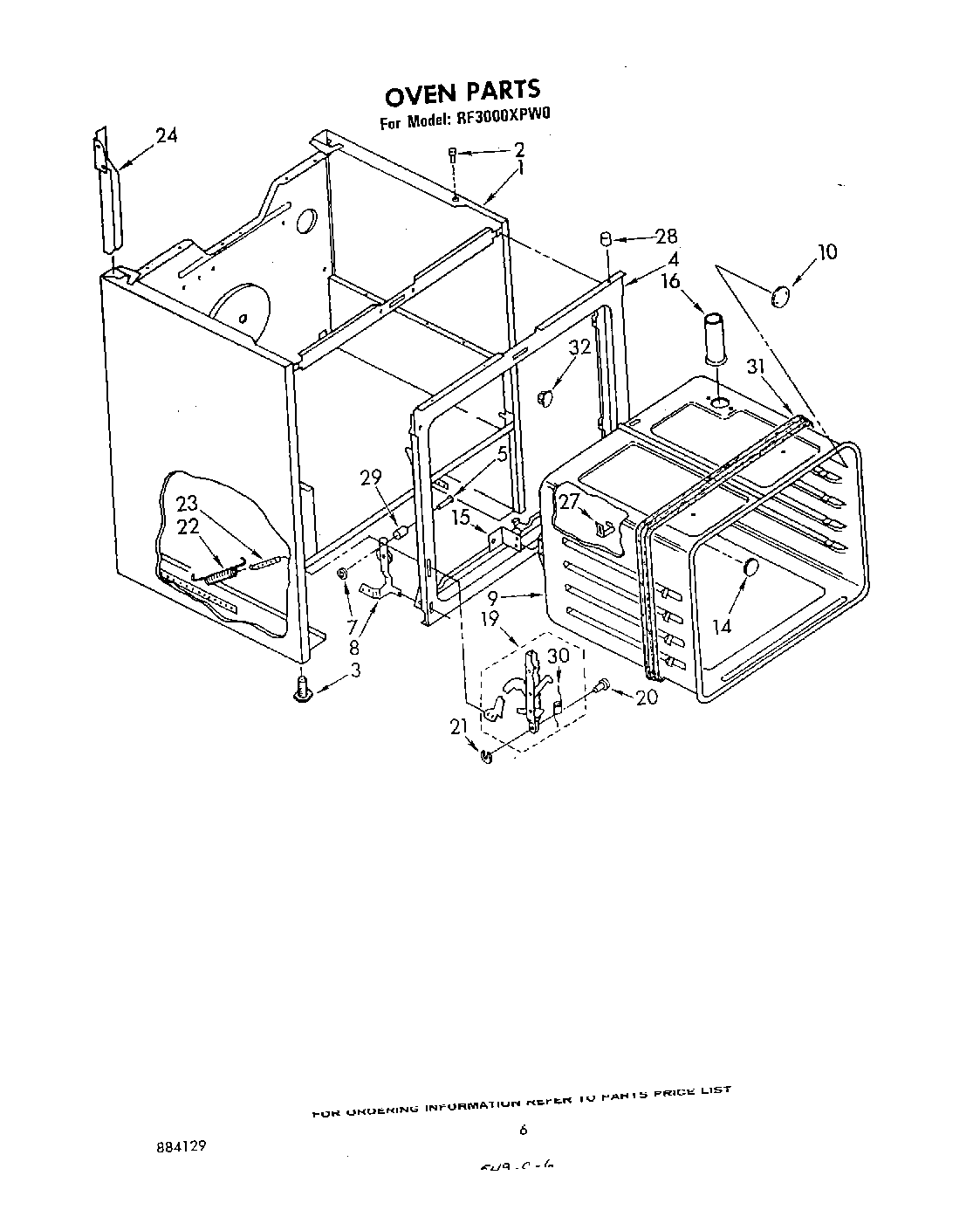

RF3000XPW0 05 – SECTION

Products

Position	Product
1	Main Chassis (Harvest Gold)
1	Main Chassis (Toast)
1	Main Chassis (Platinum)
1	Main Chassis (White)
1	Main Chassis (Almond)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	WPL 329000
10	Cover, Plate
10	Screw (3)
14	Plug Button
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	Screw, 10A x 1/2 (2) (Black)
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
24	SCREW
27	98005642 Whirlpool Clip
28	locator, cooktop
28	Screw, 8-32 x 5/16 (2)
29	Snubber, Door (2)
30	Spring, Door Stop
31	Heat Seal
32	Plug Button
