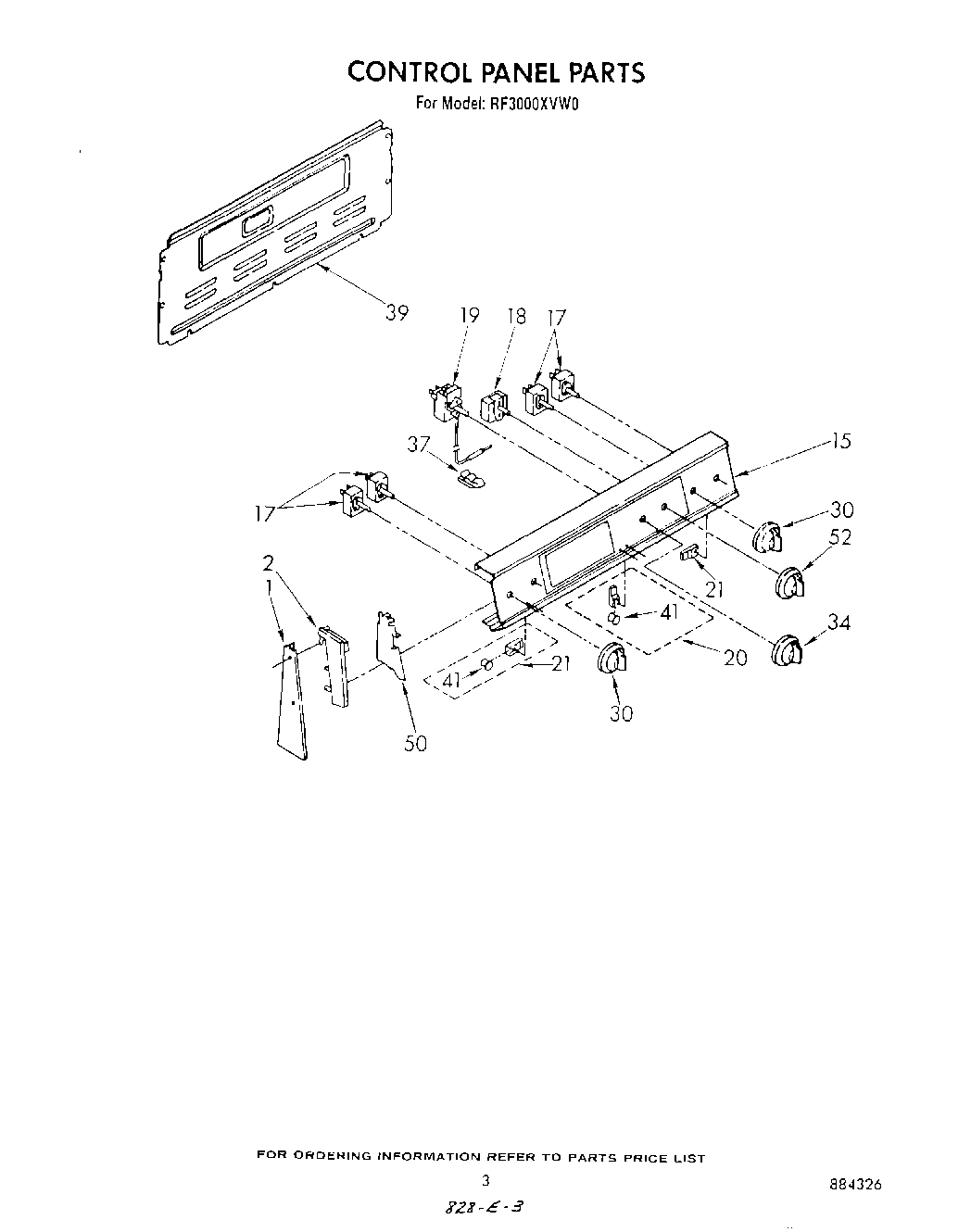

RF3000XVW0 03 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	Screw 10-32×1“
1	WP3390631 Whirlpool Screw
1	Screw 10-32×7/16“
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
15	Panel, Control (White)
15	Washer
15	Panel, Control (Almond)
17	SWITCH-INF
17	WP3149404 Whirlpool Oven Surface Element Switch
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector
19	Thermostat, Oven
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven (Alt.)
20	Light, Indicator (250V)
21	Light, Indicator (Surface Unit (2))
30	Knob, Switch (4)
34	Screw
34	Knob, Switch
37	Clip, Tube
39	Harness-Conduit Asm.
39	SCREW
41	Lens, Amber
50	WP965173 Whirlpool Dishwasher Screw
50	Shield (2)
52	Knob, Selector
52	WP688805 Whirlpool Spring Clip
