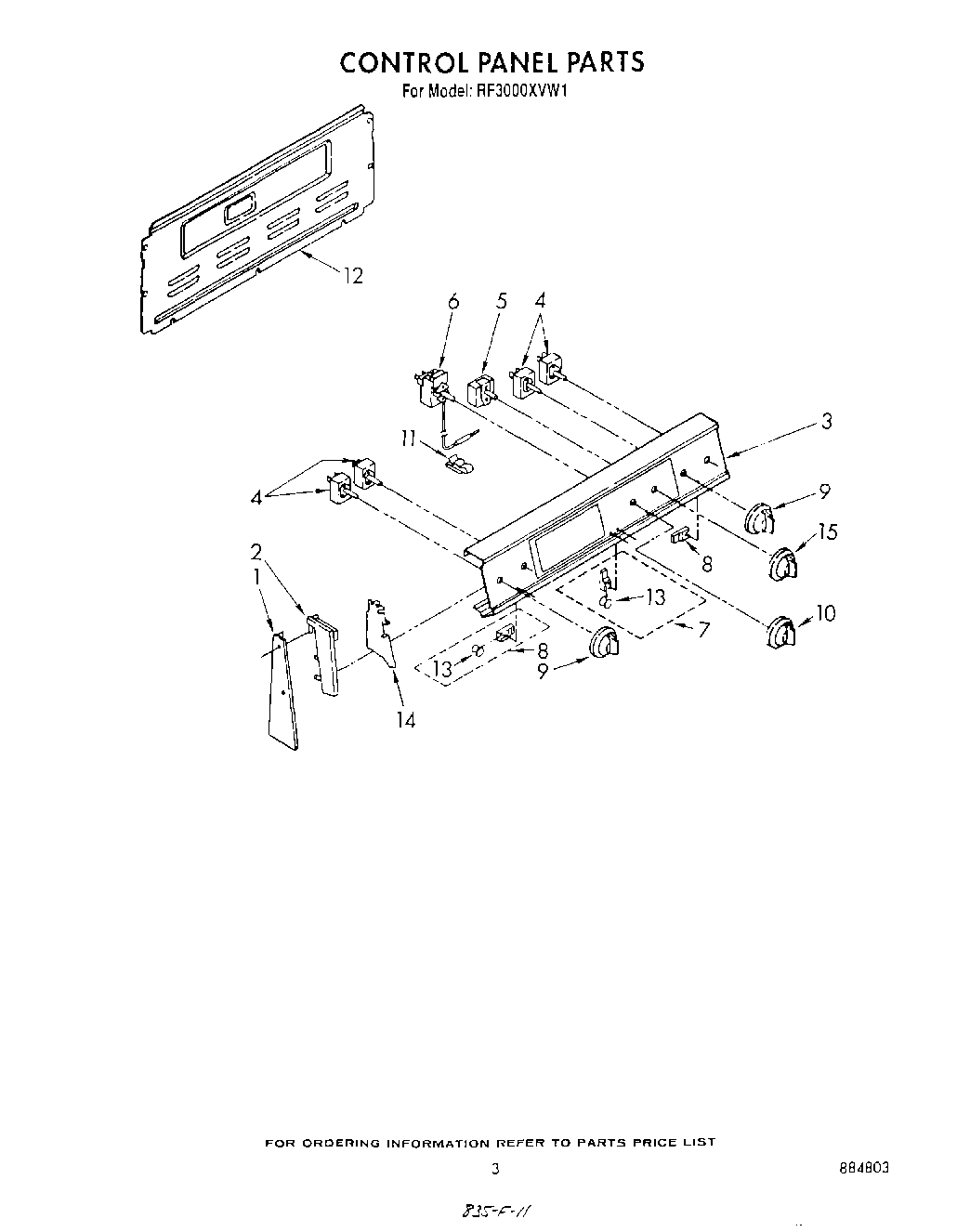

RF3000XVW1 03 – CONTROL PANEL

RF3000XVW1 03 – CONTROL PANEL

Written by

in

RF3000XVW1 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1Screw 10-32×1“
1WP3390631 Whirlpool Screw
1Screw 10-32×7/16“
2Screw,
2End Cap L.H.
2End Cap R.H.
3Washer
3Panel, Control (Almond)
3Panel, Control (White)
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5WP486579 Whirlpool Air Conditioner Screw
5Switch, Selector
6Thermostat, Oven (Alt.)
6Thermostat, Oven
6Thermostat, Oven (Alt.)
7Light, Indicator (250V)
8Light, Indicator (Surface Unit (2))
9WP3149983 Whirlpool Knob
10Screw
10Knob, Temperature
11Clip, Tube
12SCREW
12Harness-Conduit Asm.
13Lens, Amber
14Shield (2)
14WP965173 Whirlpool Dishwasher Screw
15Knob, Selector
15WP688805 Whirlpool Spring Clip
