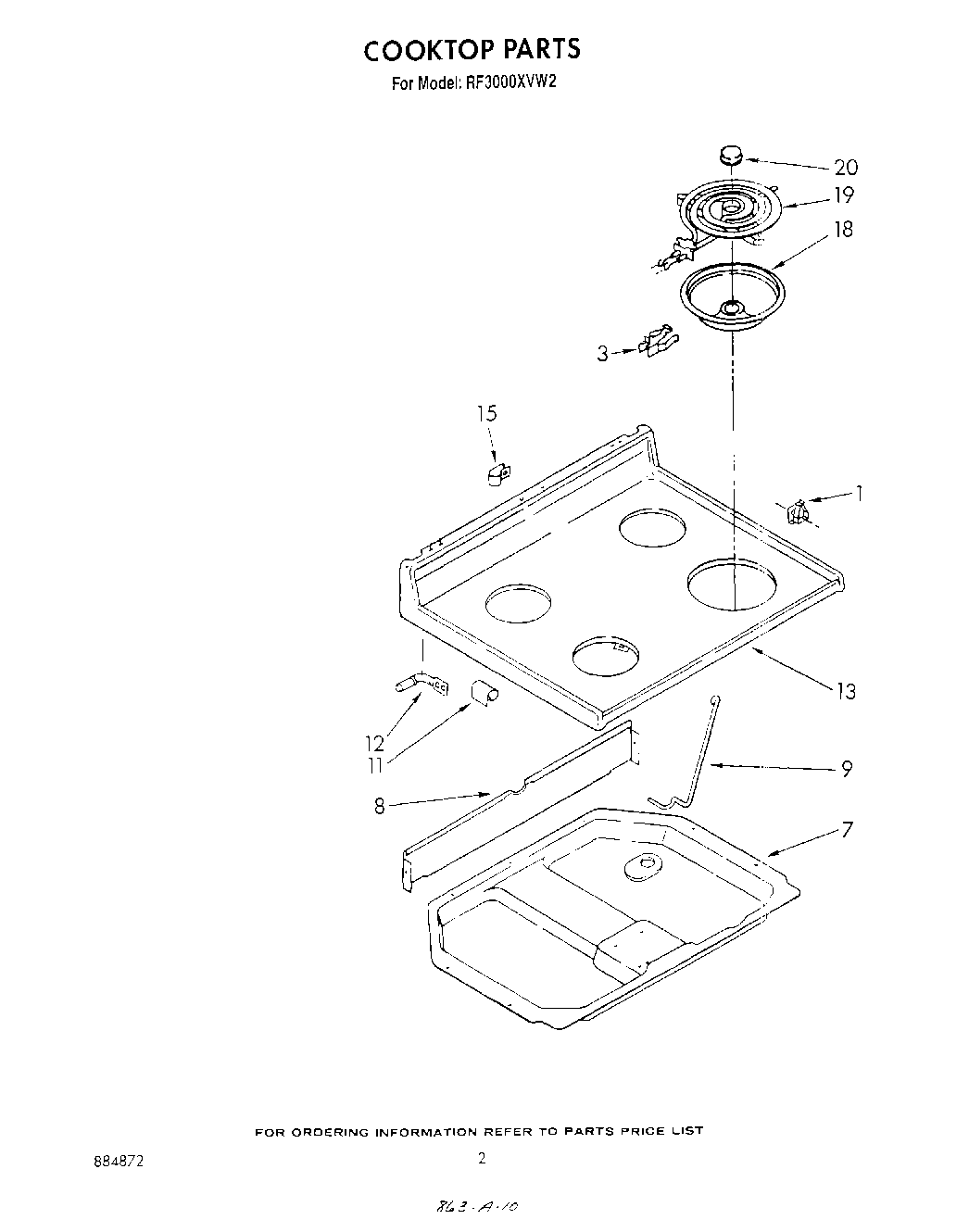

RF3000XVW2 02 – COOKTOP

Products

Position	Product
	Repair Parts List
	Guide, Use & Care
	Wiring Diagram
	WPL LIT3149507
	WPL LIT3148614
	WP660533 Whirlpool Oven 8" Surface Element
1	814103 Whirlpool Clip
1	WP487887 Whirlpool Refrigerator Screw
1	Nut (4)
3	WP4332752 Whirlpool Clip
3	WP313808 Whirlpool Screw
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (White)
13	Cooktop (Almond)
15	WP308605 Whirlpool Refrigerator Clamp
15	SCREW
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
18	DRIP BOWL 8" W/HOLE CHROME
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
