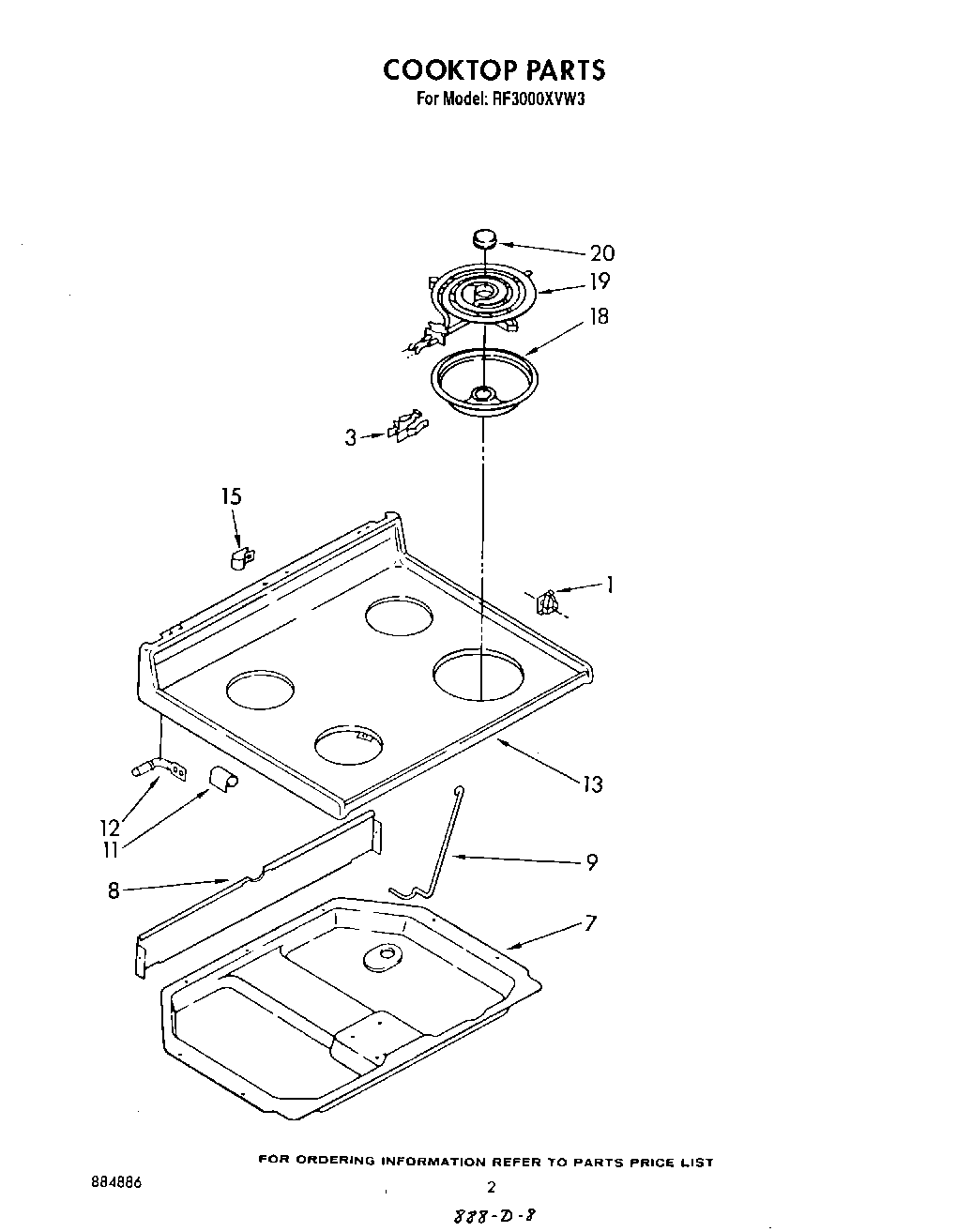

RF3000XVW3 02 – COOK TOP

Products

Position	Product
	Repair Parts List
	WP660533 Whirlpool Oven 8" Surface Element
	WPL LIT3149507
	Instructions, Installation
	Wiring Diagram
	Guide, Use & Care
1	WP487887 Whirlpool Refrigerator Screw
1	Nut (4)
1	814103 Whirlpool Clip
3	WP313808 Whirlpool Screw
3	WP4332752 Whirlpool Clip
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
15	WP308605 Whirlpool Refrigerator Clamp
15	SCREW
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
18	DRIP BOWL 8" W/HOLE CHROME
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
