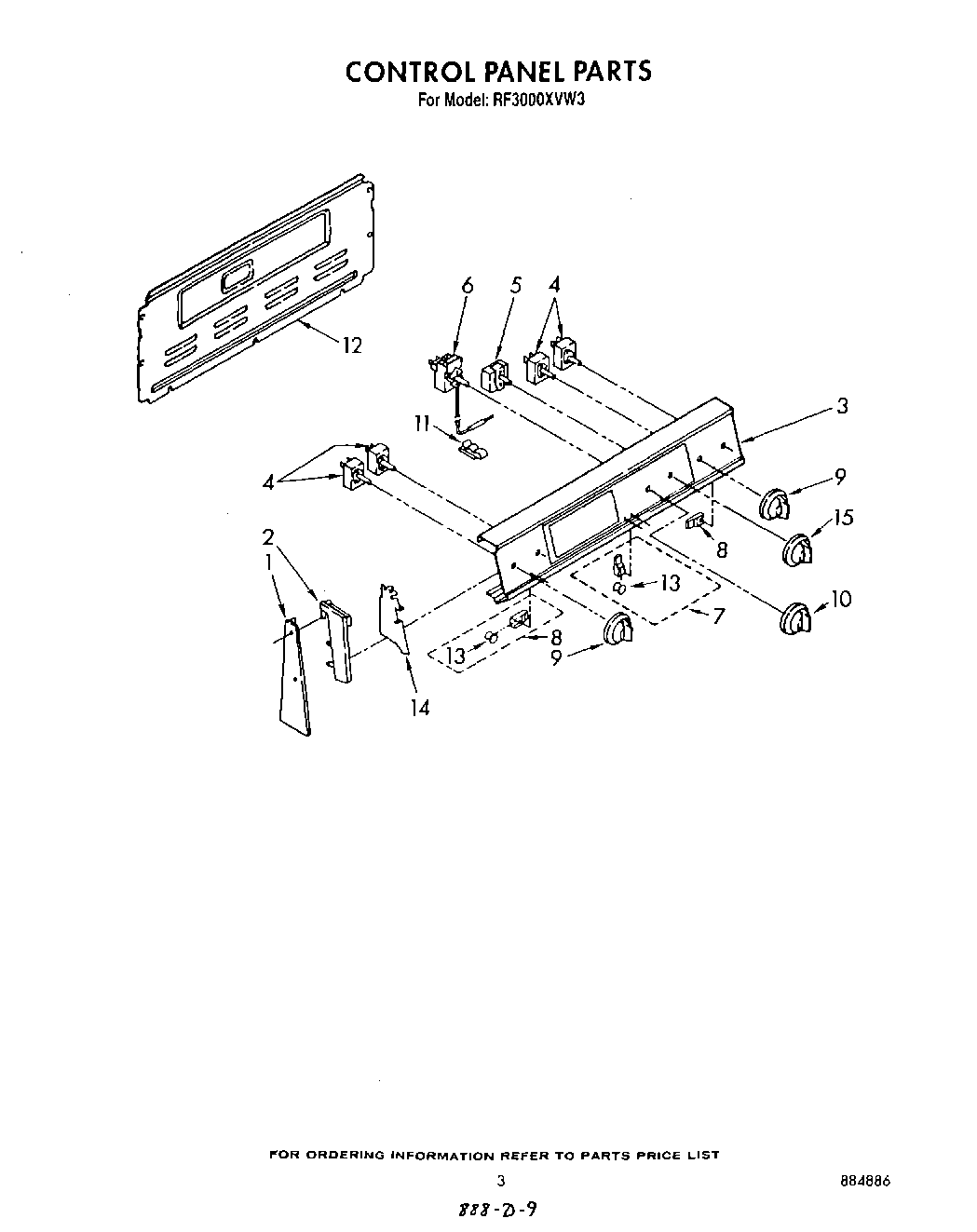

RF3000XVW3 03 – CONTROL PANEL

RF3000XVW3 03 – CONTROL PANEL

Written by

in

RF3000XVW3 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1WP3390631 Whirlpool Screw
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap L.H.
2End Cap R.H.
2Screw,
3Panel, Control (Almond)
3Washer
3Support-Top Burner
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5Switch, Selector
5WP486579 Whirlpool Air Conditioner Screw
6Thermostat, Oven
6Thermostat, Oven (Alt.)
6Thermostat, Oven (Alt.)
7Light, Indicator (250V)
8Light, Indicator (Surface Unit (2))
9WP3149983 Whirlpool Knob
10Knob, Temperature
11Clip, Tube
12SCREW
12Harness-Conduit Asm.
13Lens, Amber
14WP965173 Whirlpool Dishwasher Screw
14Shield (2)
15Knob, Selector
