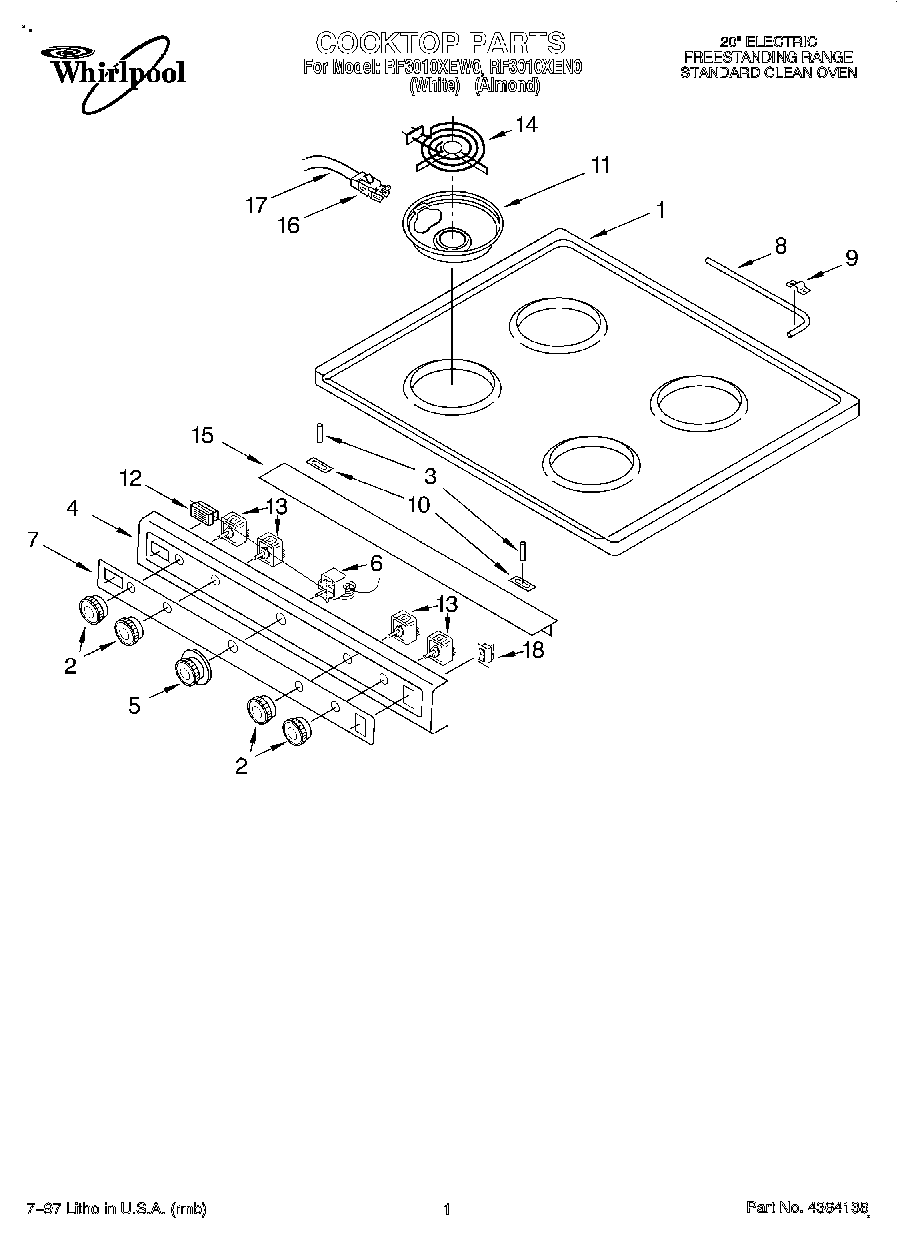

RF3010XEN0 01 – COOKTOP

Products

Position	Product
1	Cooktop (White)
1	Cooktop (Almond)
2	Knob, Burner (4)
3	Strike Pin W/Nut
4	Panel, Manifold (Includes No.7)
5	Knob, Thermostat
6	WP313808 Whirlpool Screw
6	Thermostat
7	Decal, Manifold
8	Rod, Support
9	Clip, Rod Support
10	CATCH, STRIKEPIN
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	Indicator, Surf/Ov
13	Switch, Infinite (Use W/6“ Element)
13	WPW10197681 Whirlpool Oven Infinite Switch
14	W10345409 Whirlpool Surface Element
14	WPW10345407 Whirlpool Surface Element
15	Cover, Switch
15	Screw, 8-18 x 3/8
16	Brkt, Receptacle
16	BURNER RECEPTACLE KIT
16	Screw, 6-32 x 1/4
17	Wire, Element (Red (Left Front))
17	Wire, Element (Yellow (Rt. Front))
17	Wire, Element (Blue (Left Rear))
17	Wire, Element (Black (Rt. Rear))
18	4364351 Whirlpool Oven Light Switch
