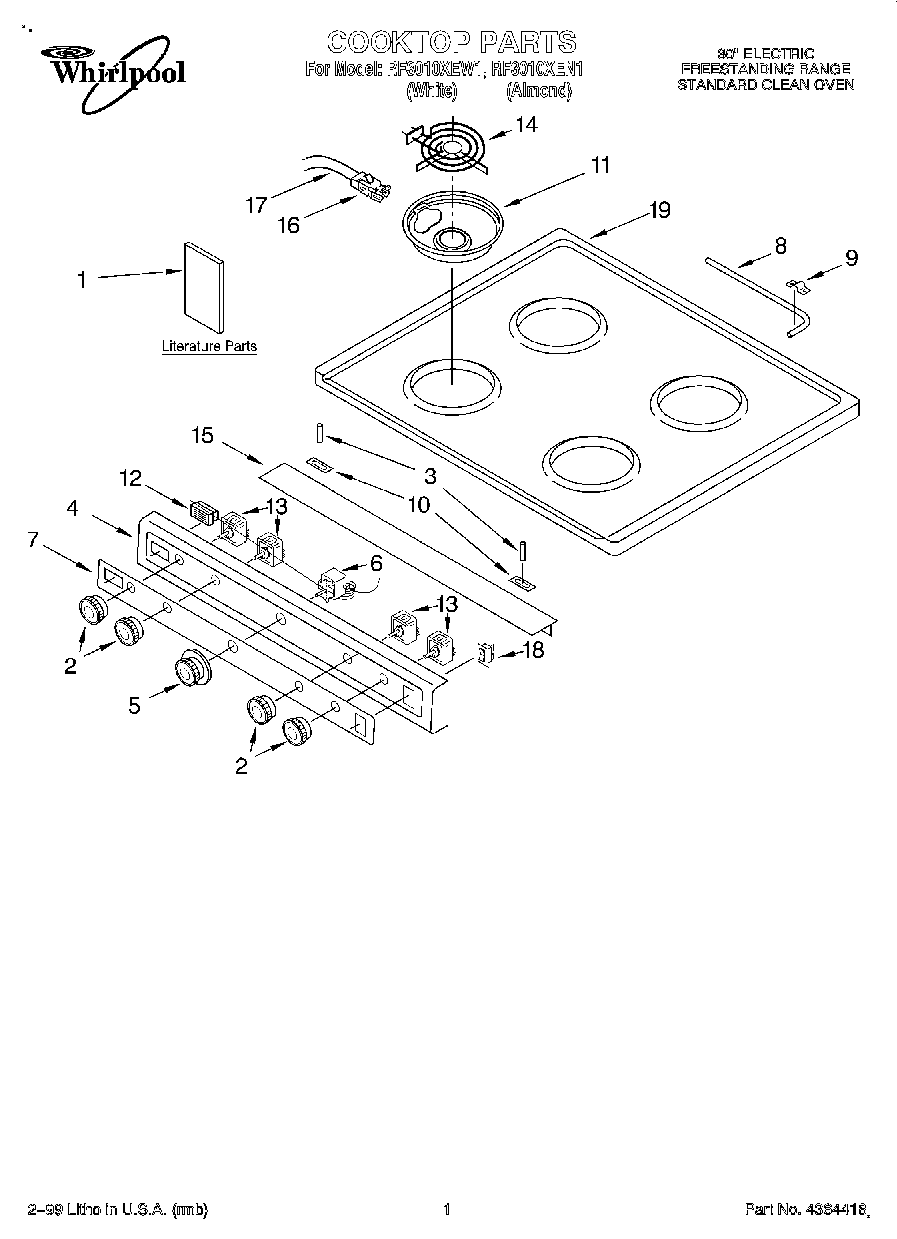

RF3010XEN1 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Wiring Diagram
1	Block, Disconnect
2	Knob, Burner (4)
3	Strike Pin W/Nut
4	PANEL, MANIFOLD (INCLUDES DECAL)
5	Knob, Thermostat
6	WP313808 Whirlpool Screw
6	Thermostat
7	Decal, Manifold
8	Rod, Support
9	Clip, Rod Support
10	CATCH, STRIKEPIN
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	Indicator, Surf/Ov
13	Switch, Infinite (Use W/6“ Element)
13	WPW10197681 Whirlpool Oven Infinite Switch
14	W10345409 Whirlpool Surface Element
14	WPW10345407 Whirlpool Surface Element
15	Screw, 8-18 x 3/8
15	Cover, Switch
16	BURNER RECEPTACLE KIT
16	Brkt, Receptacle
16	Screw, 6-32 x 1/4
17	Wire, Element (Red (Left Front))
17	Wire, Element (Yellow (Rt. Front))
17	Wire, Element (Blue (Left Rear))
17	Wire, Element (Black (Rt. Rear))
18	4364351 Whirlpool Oven Light Switch
19	Cooktop (Almond)
19	Cooktop (White)
