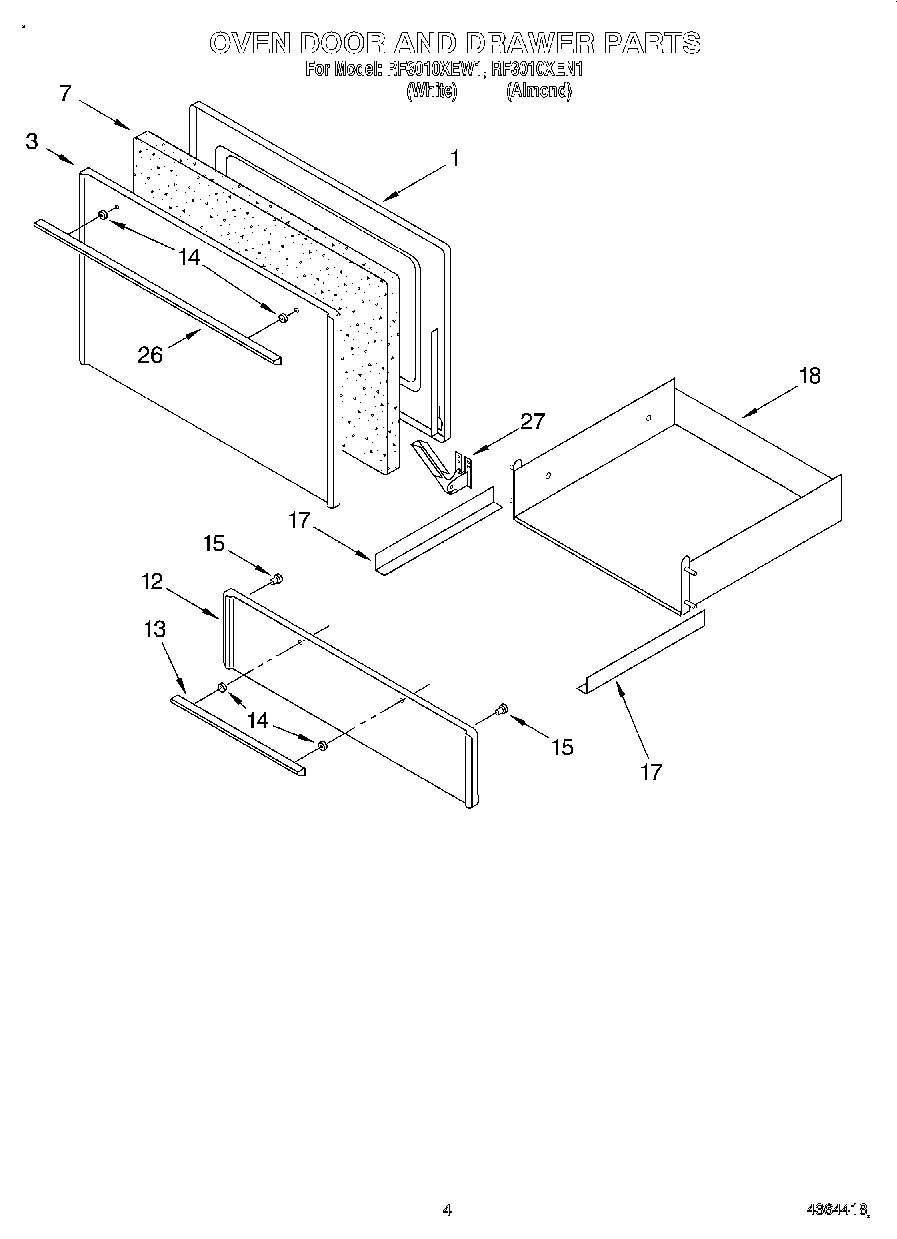

RF3010XEW1 03 – OVEN DOOR & DRAWER

Products

Position	Product
1	Liner, Door
3	Panel, Oven Door (White)
3	Panel, Oven Door (Almond)
7	Insulation, Door
12	Panel, Drawer (Almond)
12	Panel, Drawer (White)
13	Handle, Drawer
14	Screw, 10-24 x 3/8
14	Spacer, Handle
15	Bumper, Drawer
17	RUNNER, DRAWER (LEFT)
17	RUNNER, DRAWER (RIGHT)
18	Body, Drawer
26	Handle, Oven Door
27	Hinge, Oven Door
