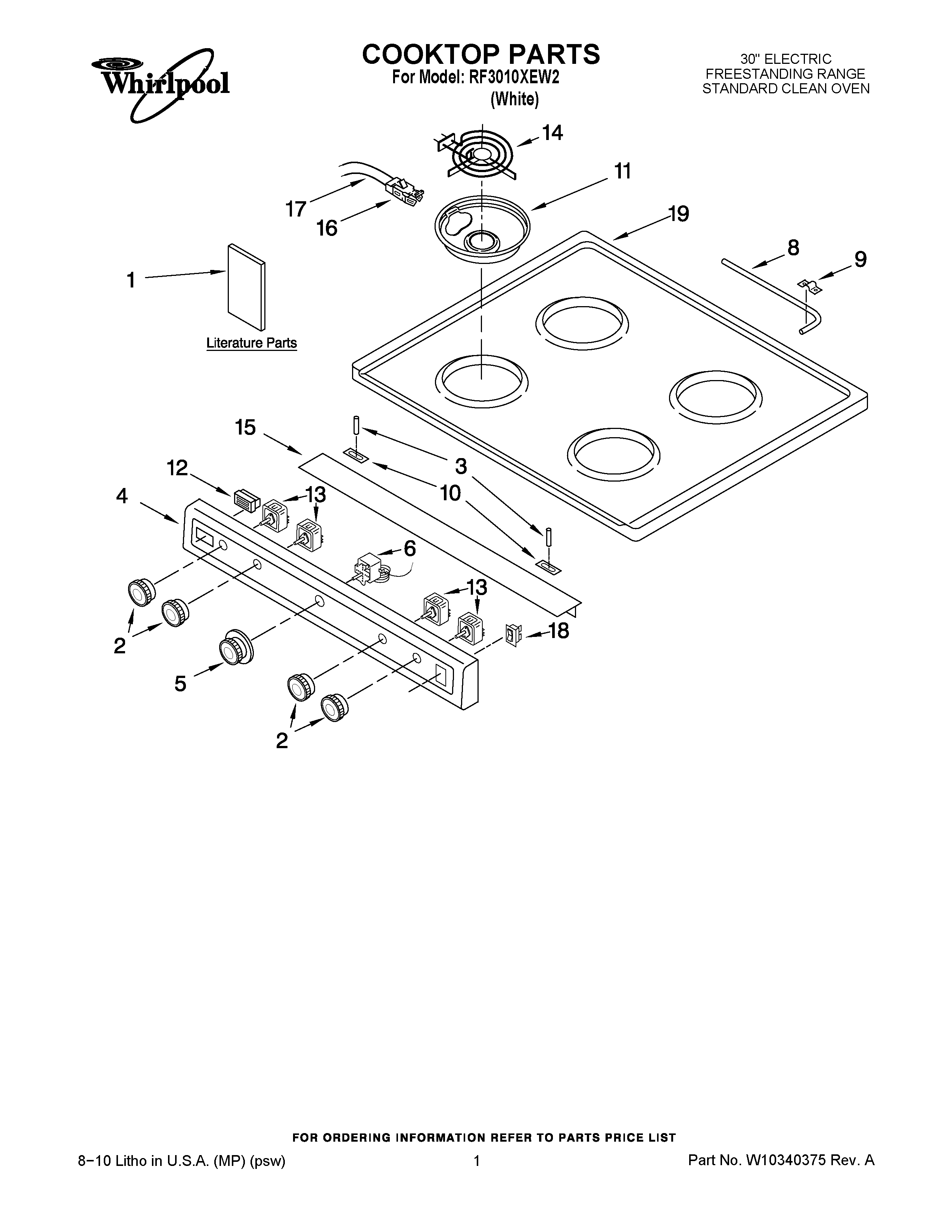

RF3010XEW2 01 – COOKTOP PARTS

Products

Position	Product
1	Use & Care Guide
1	Wiring Diagram
2	W10347847 Whirlpool Knob
3	Strike Pin W/Nut
4	PANEL, MANIFOLD (INCLUDES DECAL)
5	KNOB, THERMOSTAT
6	WP313808 Whirlpool Screw
6	Thermostat
8	Rod, Support
9	Clip, Rod Support
10	CATCH, STRIKEPIN
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	Indicator, Surf/Ov
13	WPW10197681 Whirlpool Oven Infinite Switch
13	W10197679 Whirlpool Infinite Switch
13	SCREW
14	W10345409 Whirlpool Surface Element
14	WPW10345407 Whirlpool Surface Element
15	Cover, Switch
15	Screw, 8-18 x 3/8
16	BURNER RECEPTACLE KIT
16	Screw, 6-32 x 1/4
16	Brkt, Receptacle
17	Wire, Element (Red (Left Front))
17	Wire, Element (Yellow (Rt. Front))
17	Wire, Element (Blue (Left Rear))
17	Wire, Element (Black (Rt. Rear))
18	4364351 Whirlpool Oven Light Switch
19	Cooktop (White)
