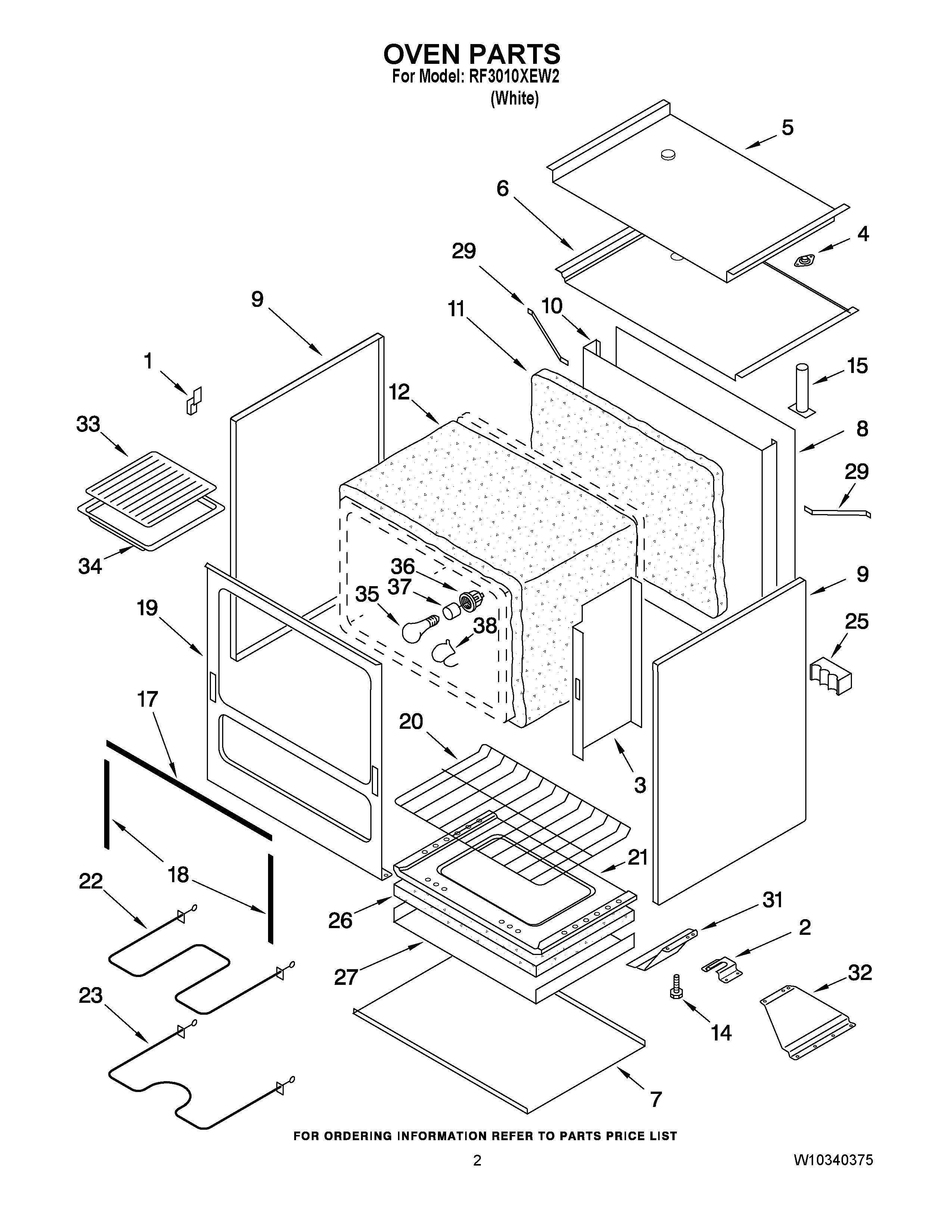

RF3010XEW2 02 – OVEN PARTS

Products

Position	Product
1	CLIP, THERMOBULB
2	8190785 Whirlpool Oven Bracket
3	BAFFLE-INNER SIDE
4	4364176 Whirlpool Limit Switch
5	Bottom, Upper Box
6	Screw, 10 x 1/2
6	Bottom, Lower Box
7	Screw, 8 x 1/2
7	Bottom, Main
8	Cover, Rear
9	Panel, Side (White)
10	Back, Main
12	Insulation, Wrap
14	LEG, LEVELER
15	Vent, Oven Tube
17	Gasket, Oven Door
18	Gasket, Oven Door Side
19	Frame, Front
20	Rack, Oven
21	Bottom, Oven
22	Element, Broil
23	Screw, 8-18 x 3/8
23	Element, Bake
25	Hex Nut, 10-32
25	WPW10245259 Whirlpool Terminal Block
26	Insulation, Back
27	Retainer, Bottom
29	Screw, 10-12 x 1/2
29	Brace, Back
31	Support, Side (Right)
32	Support, Side (Left)
33	Grill, Broiler
34	Pan, Broiler
35	RANGE ONLY 40W 120V APPL BULB
36	RECEPTACLE, LIGHT
37	Ring, Oven Light
38	Guard, Oven Light
