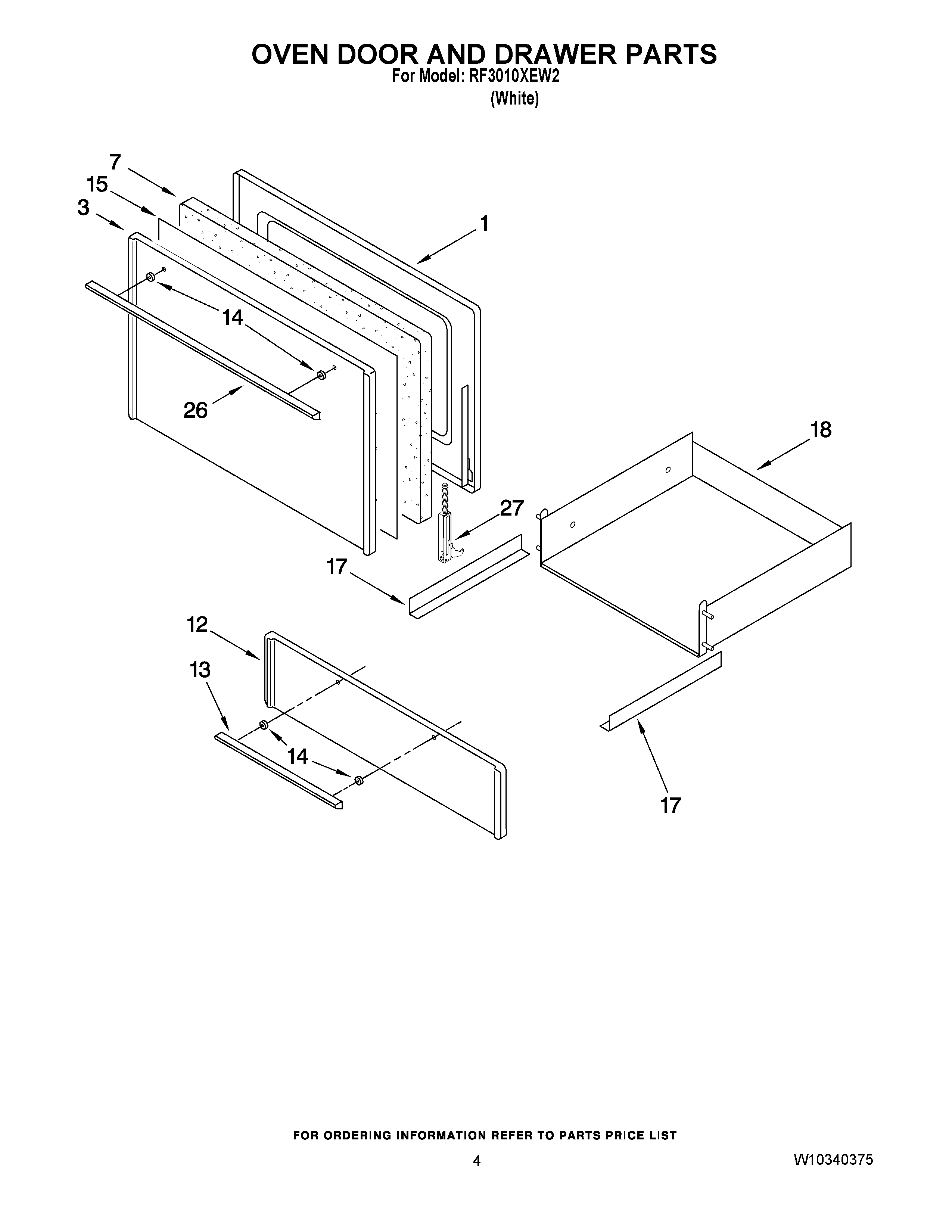

RF3010XEW2 03 – OVEN DOOR AND DRAWER PARTS

RF3010XEW2 03 – OVEN DOOR AND DRAWER PARTS

Written by

in

RF3010XEW2 03 – OVEN DOOR AND DRAWER PARTS

Products

Position	Product
1	LINER, DOOR
3	PANEL, OVEN DOOR (WHITE)
7	Insulation, Door
12	Panel, Drawer (White)
13	Handle, Drawer
14	Spacer, Handle
14	Screw, 10-24 x 3/8
15	INNER DOOR PANEL
17	RUNNER, DRAWER (LEFT)
17	RUNNER, DRAWER (RIGHT)
18	Body, Drawer
26	Handle, Oven Door
26	Screw, 10-24 x 5/8
27	HINGE, OVEN DOOR (LEFT)
27	HINGE, OVEN DOOR (RIGHT)
