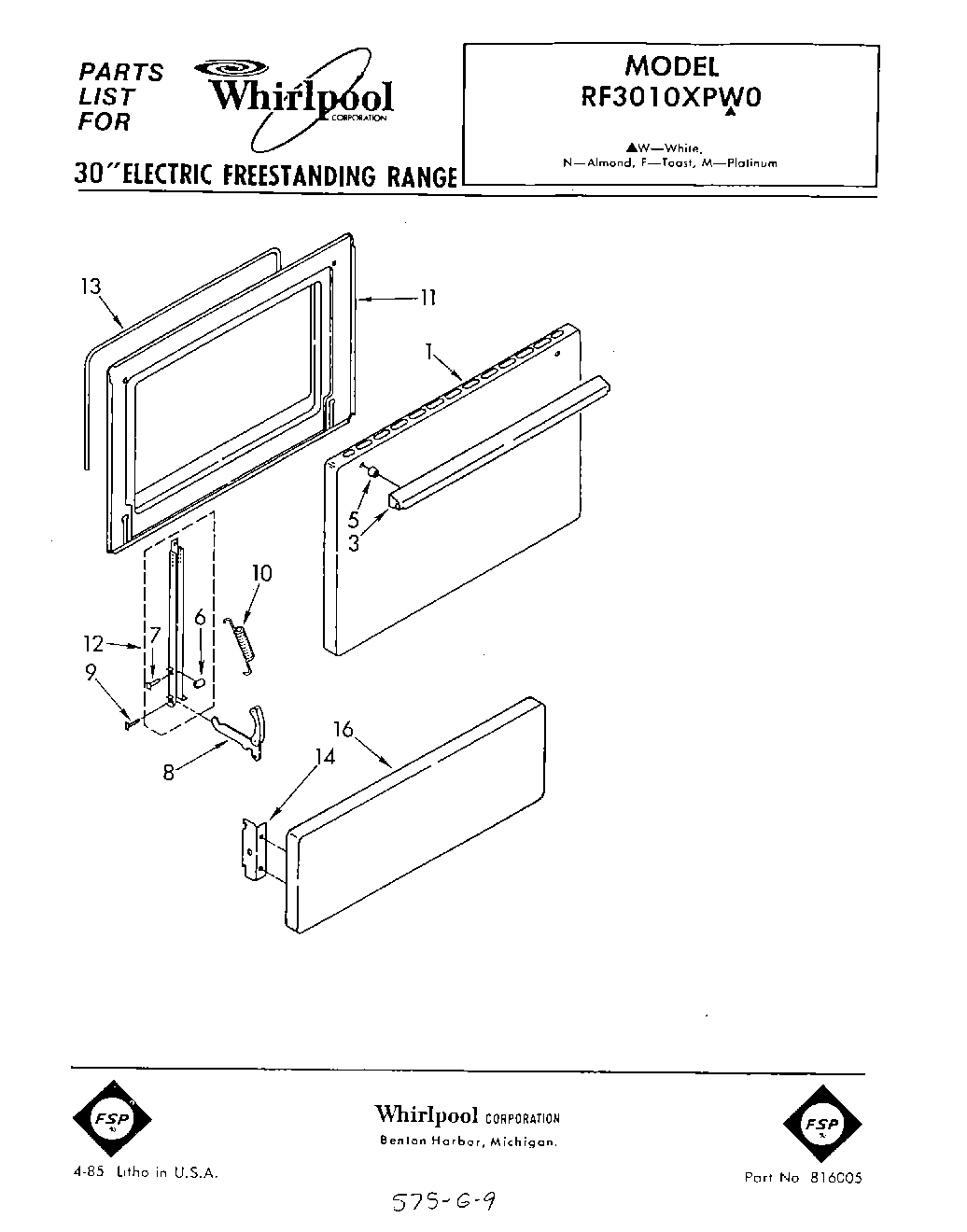

RF3010XPW0 01 – SECTION

RF3010XPW0 01 – SECTION

Written by

in

RF3010XPW0 01 – SECTION

Products

PositionProduct
1Panel, Oven Door (White)
1Panel, Oven Door (Almond)
1Panel, Oven Door (Platinum)
1Panel, Oven Door (Screw 10-24 x 1-1/4 (2))
1Panel, Oven Door (Toast)
3Door Handle Assembly
5Spacer, Handle (2)
6Roller, Stop (2)
7Rivet (2)
8Arm Assembly (2)
9Pin, Hinge (2)
10Spring, Door (2)
11Liner, Door
12Washer (2)
12Channel Assembly
12Screw 10-24 x 1/2
13Gasket, Door (Alternate)
13Gasket, Door (Alternate)
14Screw, 10-24 x 1/2 (3)
14Bracket, Panel ((L.H.))
14Bracket, Panel ((R.H.))
16Panel, Lower (Almond)
16Panel, Lower (Platinum)
16Panel, Lower (Toast)
16Panel, Lower (White)
