RF3010XPW0 02 – SECTION

RF3010XPW0 02 – SECTION

Written by

in

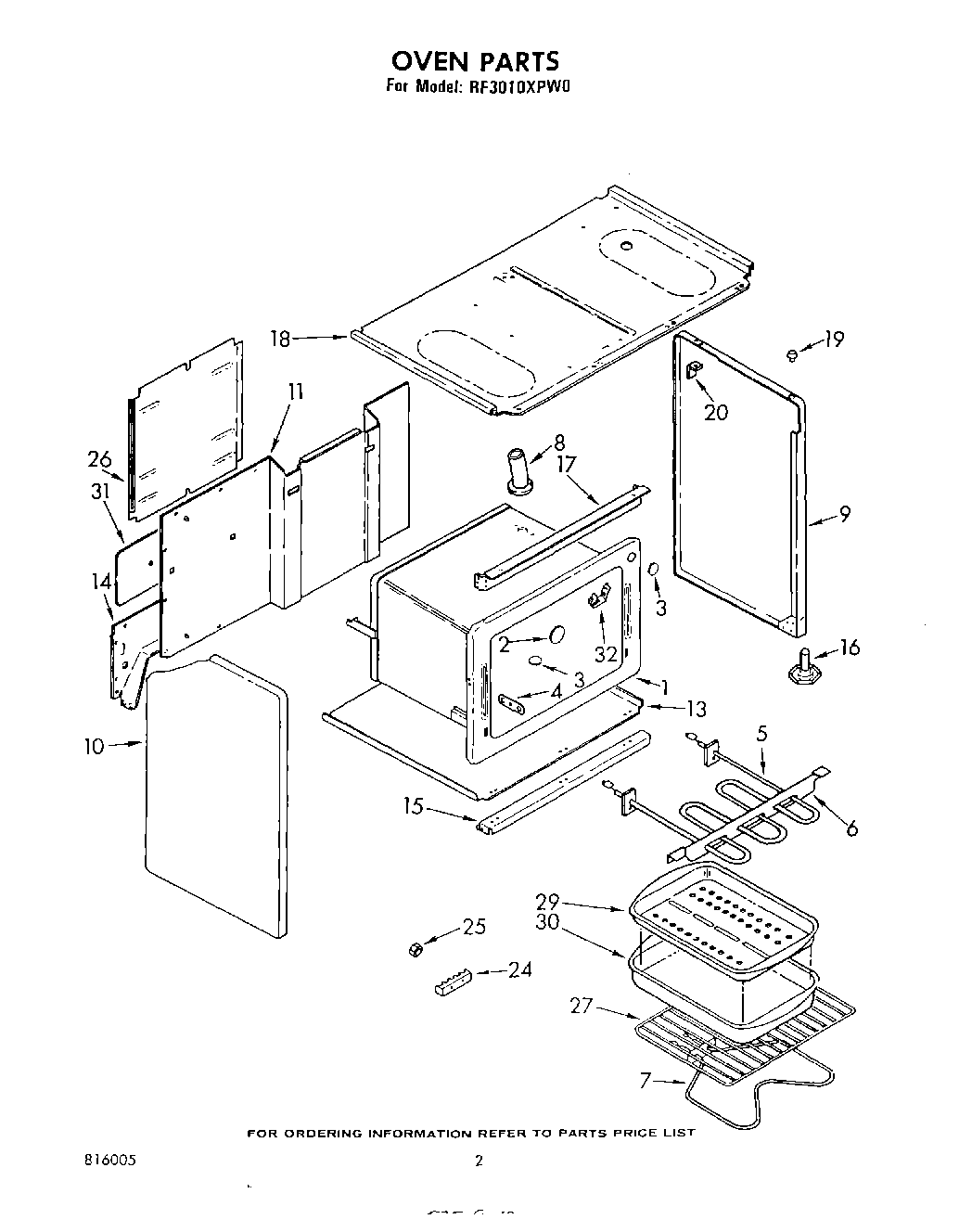

RF3010XPW0 02 – SECTION

Products

PositionProduct
1Oven (Conventional)
2Cover, Light Hole
3Button, Plug
4Bracket Thermo Bulb
5Unit, Broil
6Hanger, Broil Unit
7WP865940 Whirlpool Bake Element
7Unit Bake (Screw, 10-24 x 1/2 (2))
8Screw, 10-24 x 3/8 (2)
8Tube, Oven Vent
9End Panel, R.H. (White)
9End Panel, R.H. (Almond)
9End Panel, R.H. (Platinum)
9End Panel, R.H. (Toast)
10End Panel, L.H. (Platinum)
10End Panel, L.H. (White)
10End Panel, L.H. (Almond)
10End Panel, L.H. (Toast)
10End Panel, L.H. (Screw (2))
11Back, Range
13Panel, Weldment (Bottom)
14Gusset, Rear (R.H.)
14Gusset, Rear (L.H.)
15Channel, Oven Support
16Leg Leveler (4)
17Bracket, Cooktop
18Burner Box
19Bumper, Cooktop (4)
20Gusset, Backguard (2)
24WP8203546 Whirlpool Terminal Block
25Hex Nut, 10-32 (6)
26Washer (3)
26Screw, 10-24 x 1/2 (3)
26Cover Wiring, Low
27WPL 865983
304396923 Whirlpool Broil Pan Set Gray Porcelain
31WPL 834649
31WPL 877969
3298005642 Whirlpool Clip
