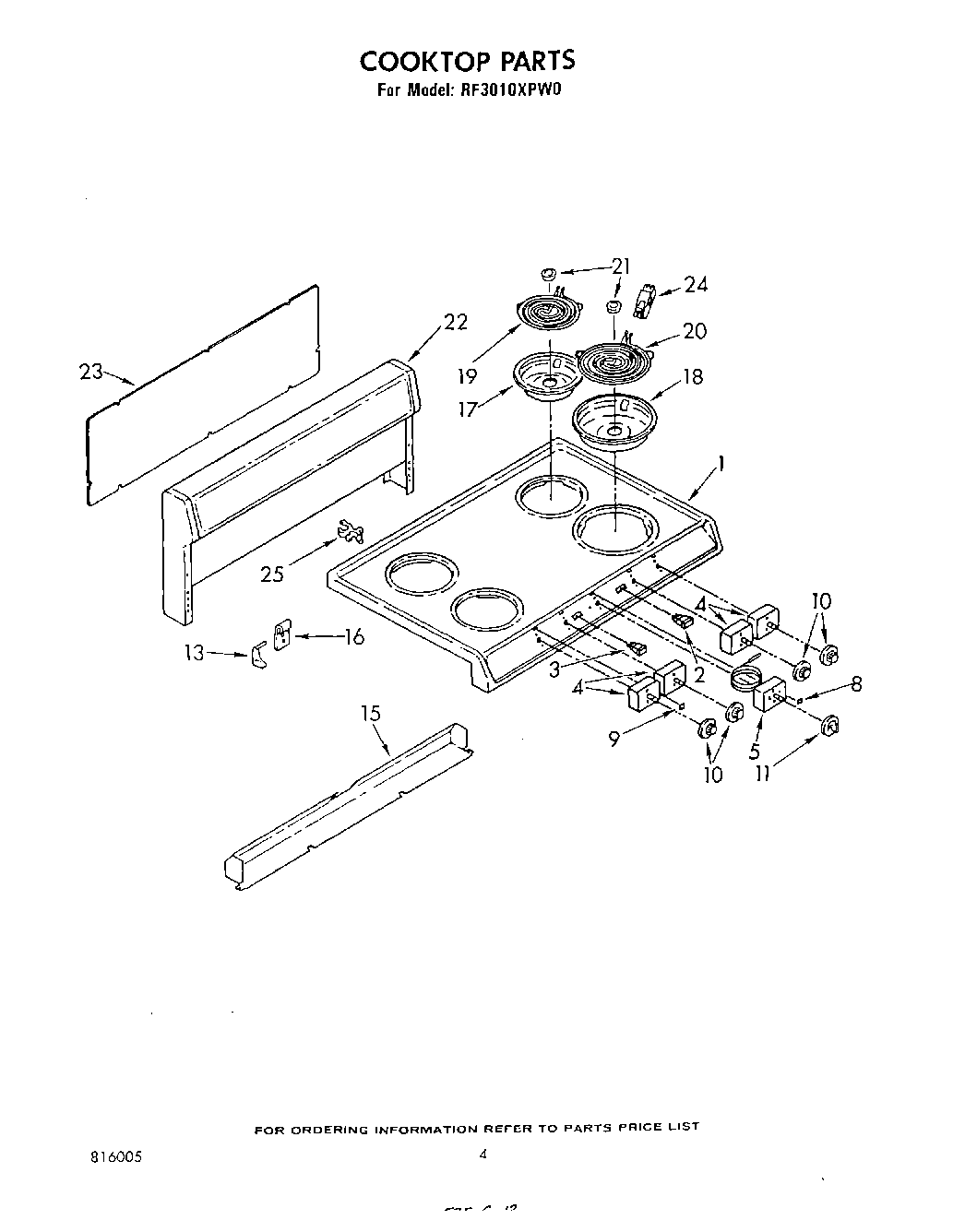

RF3010XPW0 03 – SECTION

Products

Position	Product
	WPL LIT816005
	WPL LIT865621
	WPL LIT877987
	WPL LIT877952
	WPL LIT877989
1	Cooktop (Almond)
1	Cooktop (Platinum)
1	Cooktop (Toast)
1	Cooktop (White)
2	Light, Signal (250V) (Surface Unit)
3	Light, Signal (Oven) (250V)
4	W10900107 Whirlpool Oven Surface Element Switch
4	WP486579 Whirlpool Air Conditioner Screw
5	Screw, 8-32 x 3/16 (2)
5	Thermostat, Oven
8	Indicator, Oven Selector (1)
9	Indicator, Surface Unit (4)
10	Knob & Skirt Assembly (Surface Unit) (4)
11	Knob & Skirt Assembly (Thermostat) (1)
13	Hinge Pin, Cooktop (R.H.)
13	Hinge Pin, Cooktop (L.H.)
15	Shield, Control
16	Screw 10-24 x 1/2
16	Retainer, Hinge Pin (2)
17	WPW10196406 Whirlpool 6" Chrome Drip Bowl
18	DRIP BOWL 8" W/HOLE CHROME
19	WP660532 Whirlpool Oven Surface Element
20	WP660533 Whirlpool Oven 8" Surface Element
21	WPL 868522
22	WPL 868387
22	WPL 816003
22	WPL 816004
22	WPL 868384
23	WPL 868396
23	Screw, 10-24 x 1/2 (3)
24	BURNER RECEPTACLE KIT
24	WPL 877978
25	WPL 868136
25	WPL 877979
25	350930 Whirlpool White Spray Paint
25	242831 Whirlpool Oven Wire
25	Grease
25	Enamel, New Avocado (1 Qt. Uncut)
25	Wire, 25` Roll (Red 14 Ga.)
25	Wire, 25` Roll (Black 14 Ga.)
25	FOIL, ALUMINUM OVEN (18“ X 25 )
25	WPW10208653 Whirlpool Insulation
25	WPL 799832
25	511873 Whirlpool Refrigerator Paint
25	350942 Whirlpool Spray Paint
25	Golden Harvest (Uncut)
25	Golden Harvest
25	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
25	Almond (Uncut)
25	Leveler (Thinner)
25	WP72107 Whirlpool Touchup
25	799344 Whirlpool Refrigerator Paint
25	72017 Whirlpool Appliance Touch-Up Paint White
25	Wire, 25“ Roll (White 14 GA.)
25	285006 Whirlpool Spray
25	Enamel, Coffee (1 Qt. Uncut)
25	1
25	Wire (14 Ga. 200 c Brown)
25	18 Ga. 80~c Rating (Red)
25	Wire (12 Ga. 150 c Black)
25	Wire (14 Ga. 150 c Yellow)
25	Wire (14 Ga. 150 c Orange)
25	Wire (14 Ga. 150 c Green)
25	Wire (14 Ga. 150 c Brown)
25	Wire (14 Ga. 150 c Blue)
25	Touch-Up Oven (1 Oz.)
25	Paint, Spray 13 Oz. (Avocado)
25	paint, spray 13 oz. (coffee)
25	Paint, Touch-Up 1/2 Oz. (Coffee)
25	72109 Whirlpool Dacor Avocado Touch-Up Paint
25	350956 Whirlpool Spray Assembly
