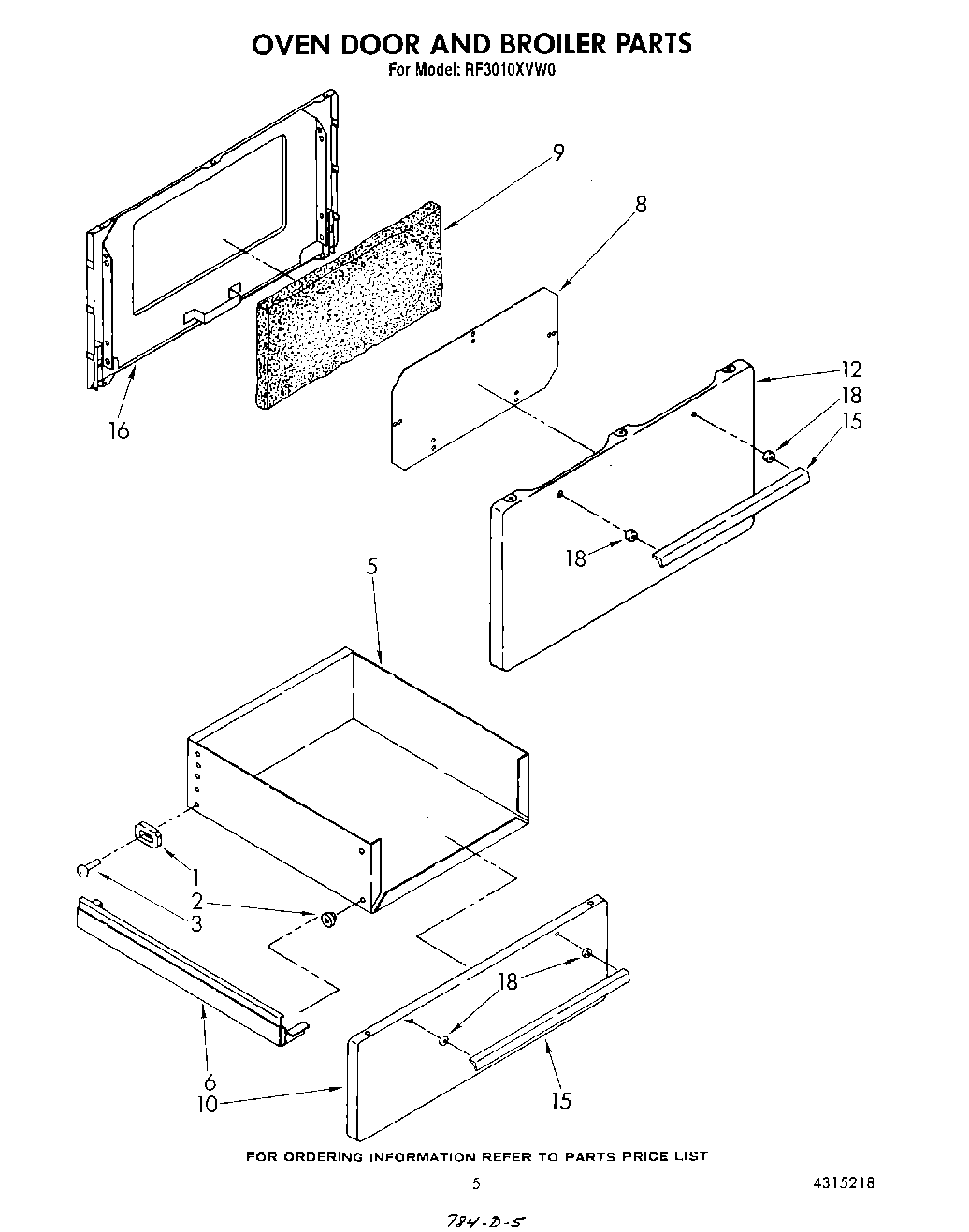

RF3010XVN0 04 – OVEN DOOR AND BROILER

Written by

Products

Position	Product
1	Slide (2)
2	Roller (2)
3	Rivet
5	Liner
6	Track (Right)
6	Track (Left)
8	SCREW
8	Baffle, Door
9	Insulation
10	Panel, Drawer (White)
10	WP308685 Whirlpool Microwave Screw
10	Panel, Drawer (Almond)
12	Panel, Door (Almond)
12	Panel, Door (White)
15	Handle, Door (2)
16	Liner, Door
18	Spacer (4)
