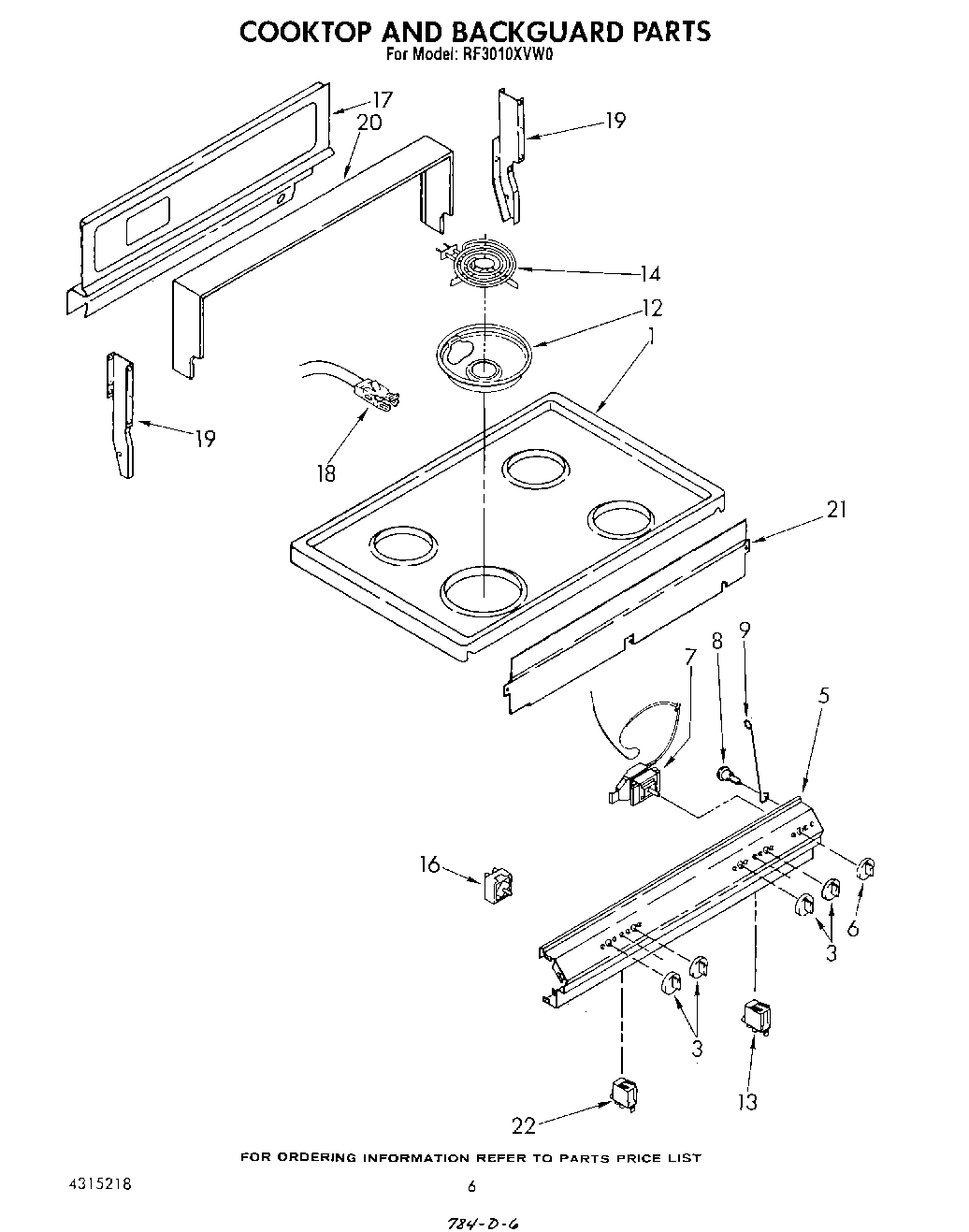

RF3010XVN0 05 – COOK TOP AND BACKGUARD

Products

PositionProduct
1Cooktop (Almond)
1Cooktop (White)
3Knob, Burner (4)
5Panel, Manifold
6Knob, Thermostat
7Thermostat
8Screw
9Rod, Support
12WPW10196406 Whirlpool 6" Chrome Drip Bowl
12DRIP BOWL 8" W/HOLE CHROME
13Light, Indicator (4)
14Unit, Surface (8“)
14Unit, Surface (6“)
16W10900107 Whirlpool Oven Surface Element Switch
17Panel, Backguard (Almond)
17Panel, Backguard (White)
18BURNER RECEPTACLE KIT
19Screw, 10-32 X 1/2 (1)
19Support, Backguard (Left Hand)
19Support, Backguard (Right Hand)
20Screw, 10-12 X 3/8 (2)
20Frame
21Cover, Switch
22Light, Indicator (2)
