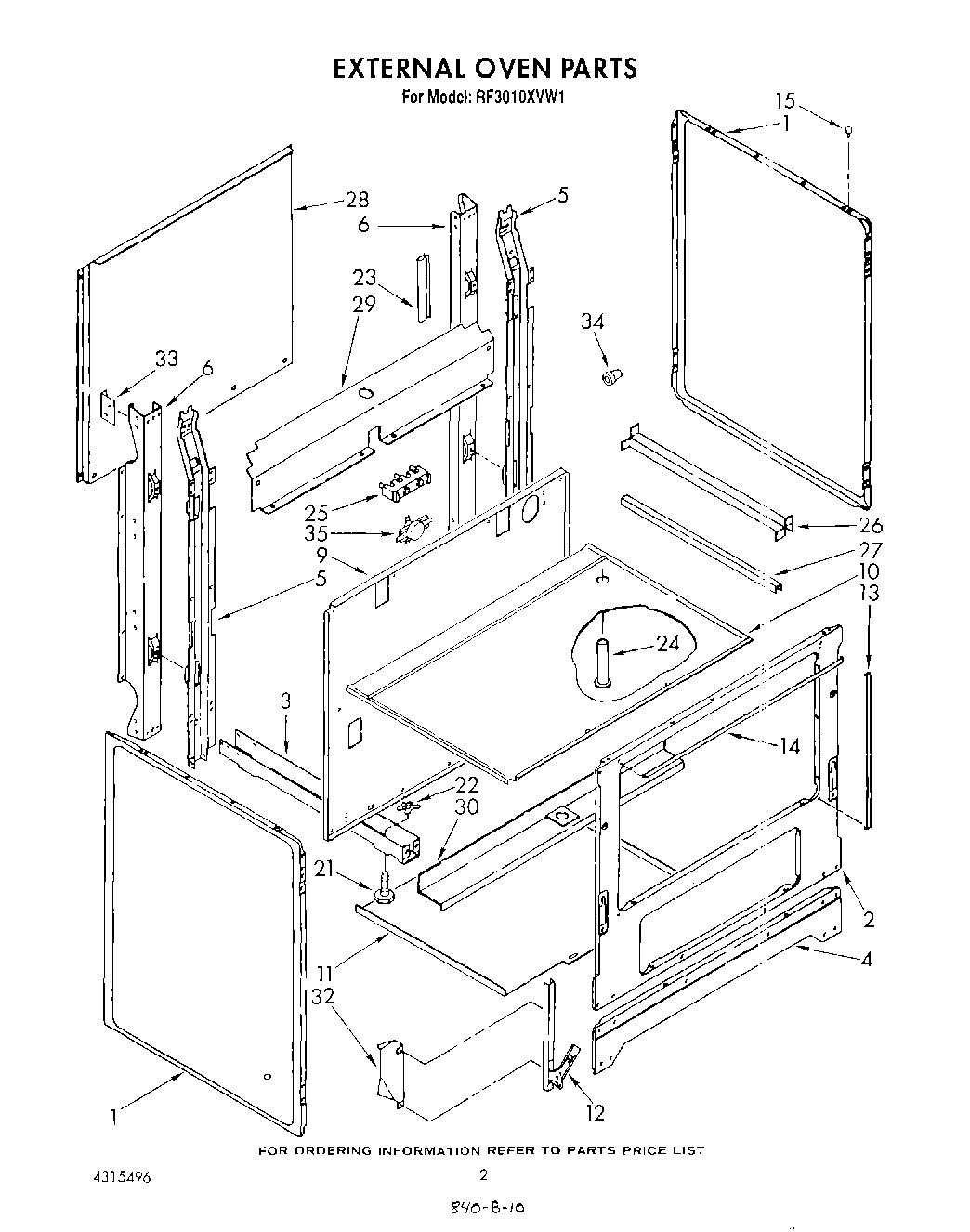

RF3010XVN1 02 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
4	Screw, 10-12 X 1/2 (4)
5	Screw, 10-32 X 1/2 (1)
5	Support, Main (2)
6	SCREW
6	Support, Rear (2)
9	Main Back
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
11	Retainer Lower
12	Hinge, Door (2)
12	Screw, 10-24 X 3/8 (2)
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
24	Tube, Vent
25	WP8203546 Whirlpool Terminal Block
26	Channel, Wire
27	Ignitor (L.H.)
28	Cover, Rear
29	Cover, Rear
30	Cover, Wire
32	Shield, Insulation
33	Bracket, Mounting (L.H.)
33	Bracket, Mounting (R.H.)
34	Locator stud (2)
35	FOIL, ALUMINUM OVEN (18`` X 25 )
35	WPW10208653 Whirlpool Insulation
35	Disc, Thermo
