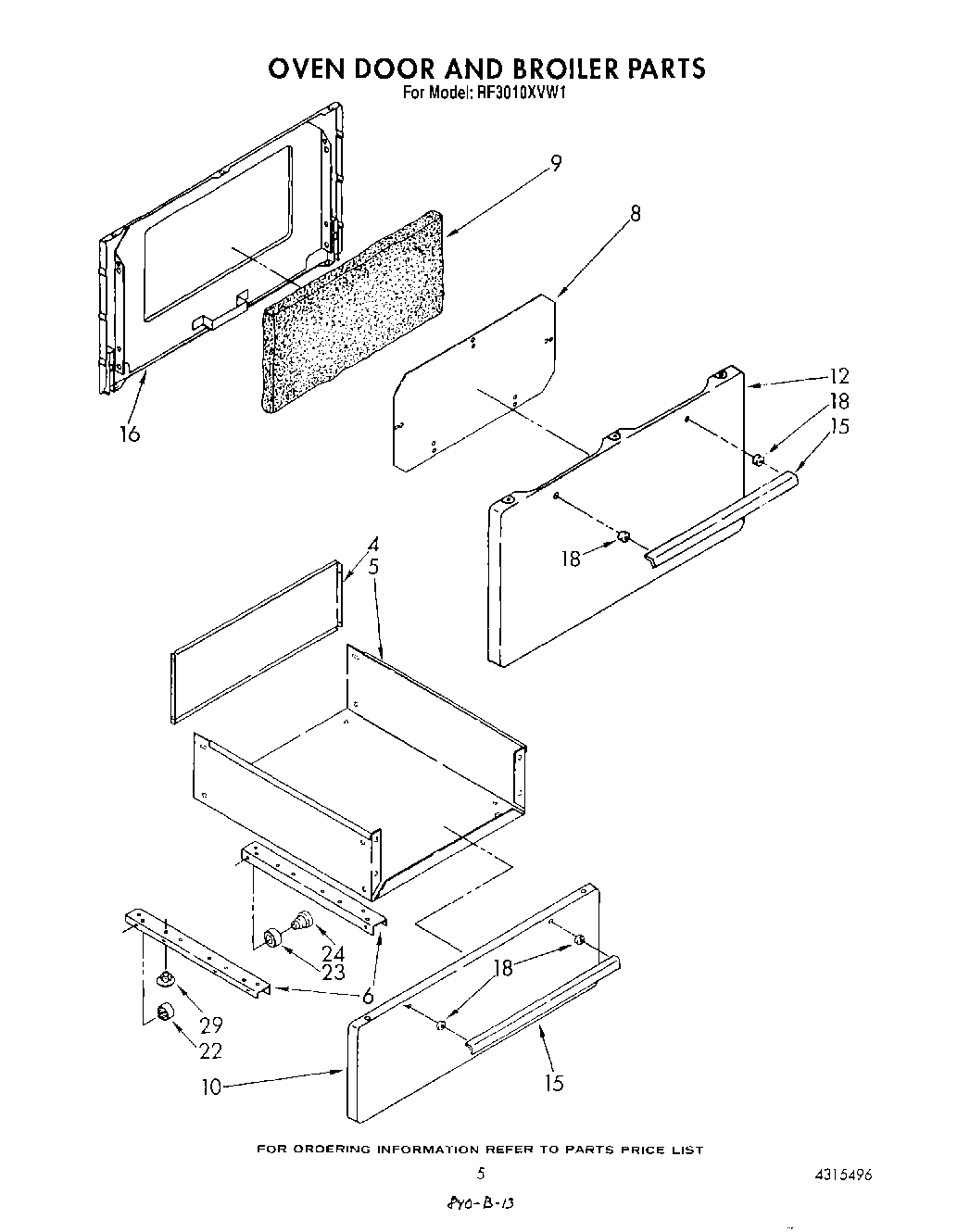

RF3010XVN1 04 – OVEN DOOR AND BROILER

Written by

Products

Position	Product
4	back, storage drawer
5	liner
6	Track, Upper (2)
8	Baffle, Door
9	Insulation
10	panel, drawer (almond)
10	panel, drawer (white)
10	WP308685 Whirlpool Microwave Screw
12	Panel, Door (Almond)
12	Panel, Door (White)
15	Handle, Door (2)
16	Liner, Door
18	Spacer (4)
22	Bumper, Nylon (4)
23	Roller (2)
24	Pin, Roller (2)
29	Hole Plug (2)
