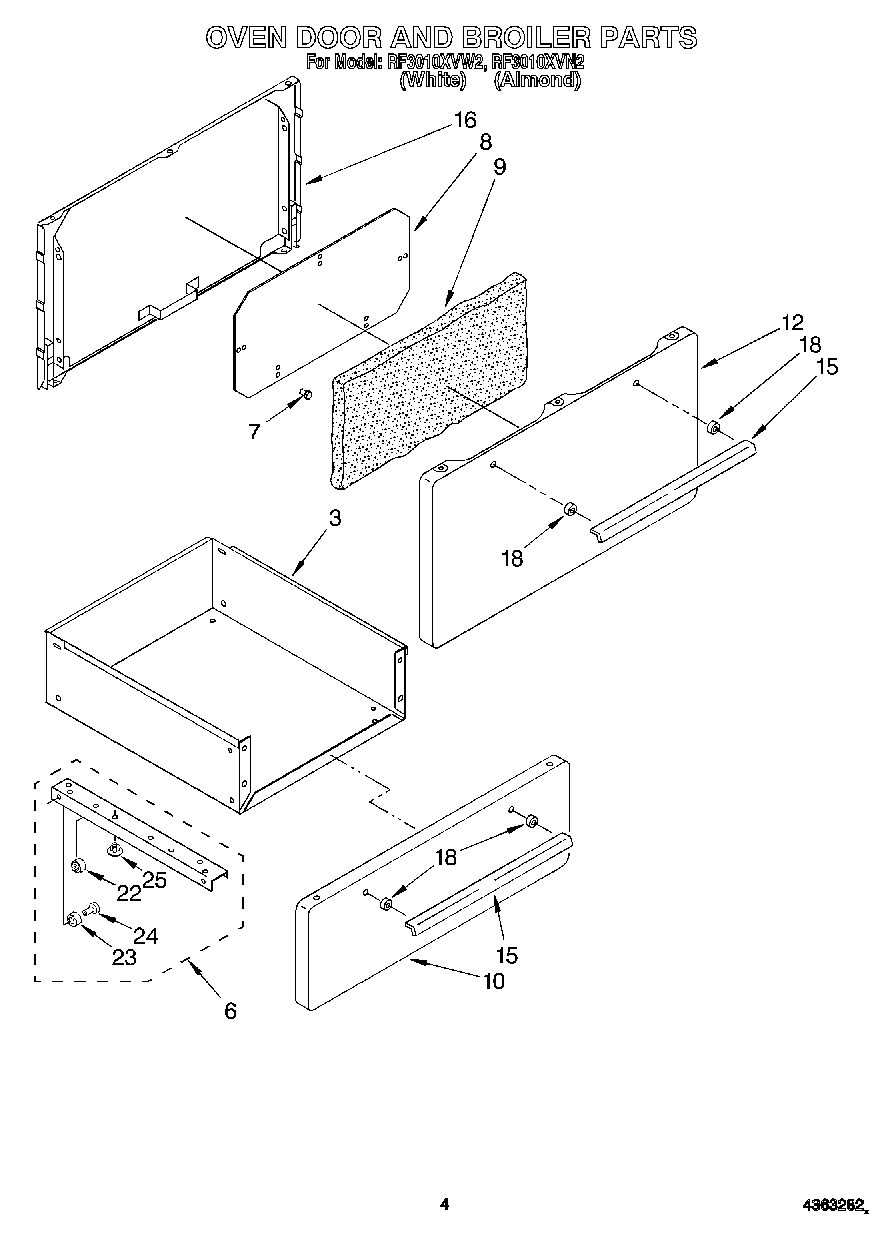

RF3010XVN2 03 – OVEN DOOR AND BOILER

Products

Position	Product
3	Drawer, Storage
6	Track, Upper (Right)
6	Track, Upper (Left)
7	Bumper, Rubber (6)
8	Ring, Hold Down
8	SCREW
9	Insulation
10	WP308685 Whirlpool Microwave Screw
10	Drawer, Front (White)
10	Drawer, Front (Almond)
12	Panel, Oven Door (White)
12	Panel, Oven Door (Almond)
15	Handle, Door (2)
15	Screw
16	Liner, Door
18	Spacer (4)
22	Bumper, Nylon (4)
23	Roller (2)
24	Roller Pin (2)
25	Hole Plug (2)
