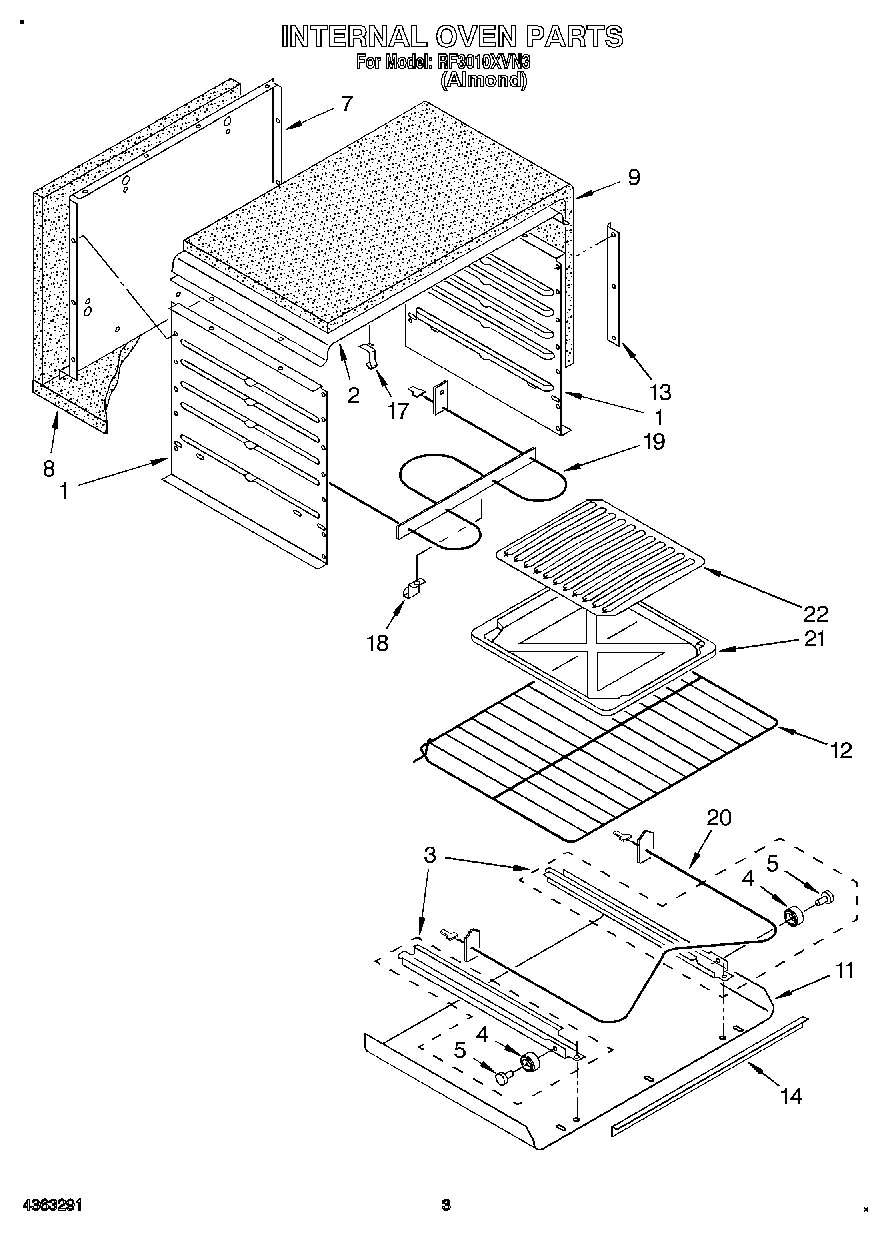

RF3010XVN3 02 – INTERNAL

Products

Position	Product
1	Liner, Oven Side (2)
2	Oven, Top
3	Track, Broiler (Right Hand)
3	Track, Broiler (Left Hand)
4	Roller (2)
5	Roller Pin (2)
5	WP308685 Whirlpool Microwave Screw
7	Backliner, Oven
8	WPW10208653 Whirlpool Insulation
9	Insulation
11	Bottom, Oven
12	Rack, Oven (2)
13	Support, Liner (2)
14	Screw
14	Support, Oven
17	98005642 Whirlpool Clip
18	Support, Element
20	WP4314958 Whirlpool Bake Element
21	4396923 Whirlpool Broil Pan Set Gray Porcelain
22	Grid
