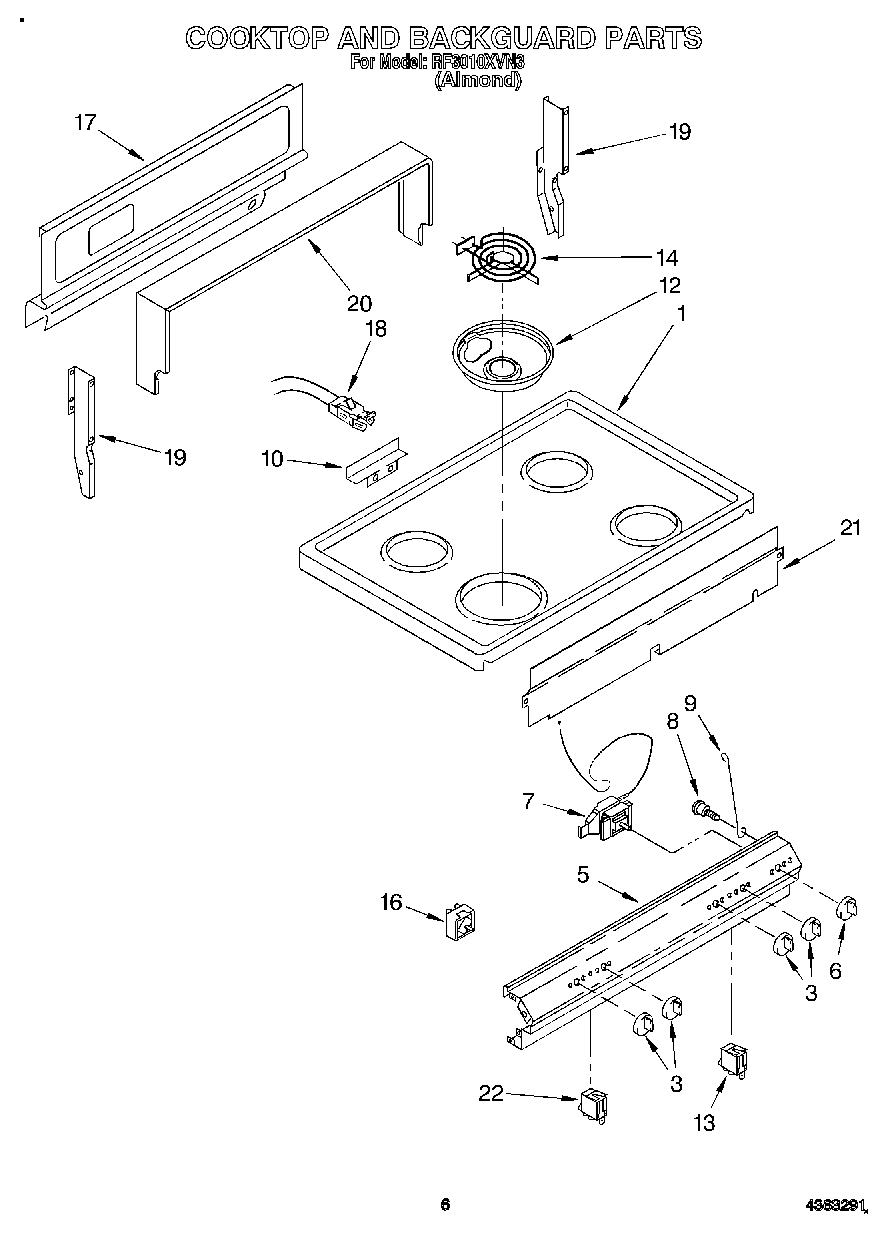

RF3010XVN3 04 – COOKTOP AND BACKGUARDadmin2025-04-26T12:52:01+00:00RF3010XVN3 04 – COOKTOP AND BACKGUARD
Products
| Position | Product |
|---|
| 1 | Cooktop (Almond) |
| 3 | Knob, Burner (4) |
| 5 | Panel, Manifold |
| 6 | Knob, Thermostat |
| 7 | Thermostat |
| 8 | Screw, Thermostat Mounting (2) |
| 9 | Rod, Support |
| 10 | Bracket, Top Supt. |
| 12 | DRIP BOWL 8" W/HOLE CHROME |
| 12 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 13 | Light, Indicator |
| 14 | Element, Surface (8`` (1)) |
| 14 | Element, Surface (6`` (3)) |
| 16 | W10900107 Whirlpool Oven Surface Element Switch |
| 17 | Panel, Backguard (Almond) |
| 18 | BURNER RECEPTACLE KIT |
| 19 | Screw, 10-32 X 1/2 (1) |
| 19 | Support, Backguard (Left Hand) |
| 19 | Support, Backguard (Right Hand) |
| 20 | Frame |
| 20 | Screw, 10-12 X 3/8 (2) |
| 21 | Cover, Switch |
| 22 | Light, Indicator (2) |
